UL 1581 Cable refers to electrical wires and cables that are tested according to UL 1581, the Reference Standard for Electrical Wires, Cables, and Flexible Cords. It defines the testing methods used to evaluate cable safety, reliability, and performance under different operating conditions.
UL 1581 Cable refers to electrical wires and cables that are tested according to UL 1581, the Reference Standard for Electrical Wires, Cables, and Flexible Cords. It defines the testing methods used to evaluate cable safety, reliability, and performance under different operating conditions.
Unlike a specific cable construction standard, UL 1581 is a testing standard that verifies whether electrical cables meet important safety requirements. It covers key performance areas such as flame resistance, electrical properties, mechanical strength, and environmental durability.
Cables evaluated according to UL 1581 are designed to provide reliable performance in a wide range of applications, including building wiring, industrial equipment, power distribution, and special-purpose electrical systems. Common cable types associated with UL 1581 testing include THW/THWN cables, XHHW/XHHW-2 cables, silicone rubber cables, submersible pump cables, portable welding cables, and concentric cables.
The importance of UL 1581 lies in helping manufacturers, distributors, and contractors select cables with verified safety performance. Through standardized testing, UL 1581 helps ensure cables can withstand challenges such as heat, moisture, flame exposure, mechanical stress, and long-term operation.
At AMG Cable, we supply a range of UL 1581 compliant cables for different electrical and industrial applications, helping customers choose reliable cable solutions that meet project requirements and market standards.
Key UL 1581 Cable Tests
| Test Category | Test Purpose | What It Evaluates | Benefits for Cable Applications |
| Flame Resistance Test | Evaluate cable behavior when exposed to fire | Flame spread, burning time, self-extinguishing ability | Helps reduce the risk of cables becoming a path for fire propagation |
| VW-1 Flame Test | Evaluate vertical flame resistance of individual wires and cables | Flame propagation, dripping, after-flame time | Provides improved fire safety for building wires and electrical installations |
| Voltage Withstand Test | Verify insulation reliability under electrical stress | Insulation breakdown resistance at specified voltage | Helps prevent electrical failures and short circuits |
| Insulation Resistance Test | Check insulation protection performance | Leakage current prevention and insulation quality | Ensures safe and stable electrical operation |
| Conductor Resistance Test | Verify conductor electrical performance | Conductor resistance and current-carrying capability | Helps maintain efficient power transmission |
| Tensile Strength & Elongation Test | Evaluate mechanical durability | Strength and flexibility of insulation and jacket materials | Ensures cables can withstand installation stress |
| Heat Aging Test | Assess long-term material performance | Insulation and jacket stability after heat exposure | Improves service life under continuous operation |
| Moisture & Oil Resistance Test | Evaluate environmental durability | Resistance to water, humidity, and oil exposure | Supports reliable use in demanding environments |
UL 1581 Cable
Get A Free Quote
Need Help?
Your Trusted Business Partner for Professional Cable Solutions
/ AMG FAQ /
Frequently Asked Questions
UL 1581 cable refers to electrical wires, cables, and flexible cords that are tested according to the UL 1581 standard. UL 1581 is a reference standard developed for evaluating the safety and performance of electrical cables, covering important tests such as flame resistance, electrical properties, mechanical strength, and environmental durability.
UL 1581 does not define a specific cable construction. Instead, it helps verify whether a cable can meet required safety and performance levels for applications such as building wiring, industrial equipment, power distribution, and special-purpose electrical systems.
UL 1581 is a testing standard, not a cable type.
It defines the test methods used to evaluate electrical wires and cables, rather than specifying the cable structure, conductor size, insulation material, or application.
For example:
- UL 1581 → Defines cable testing requirements
- THW, THWN, XHHW-2, Welding Cable, Silicone Rubber Cable → Specific cable types that may be evaluated according to UL 1581 requirements
A cable can comply with a product standard while also being tested according to UL 1581.
A wide range of electrical wires and cables can be evaluated using UL 1581 testing methods. Common examples include:
| Cable Type | Typical Applications |
|---|---|

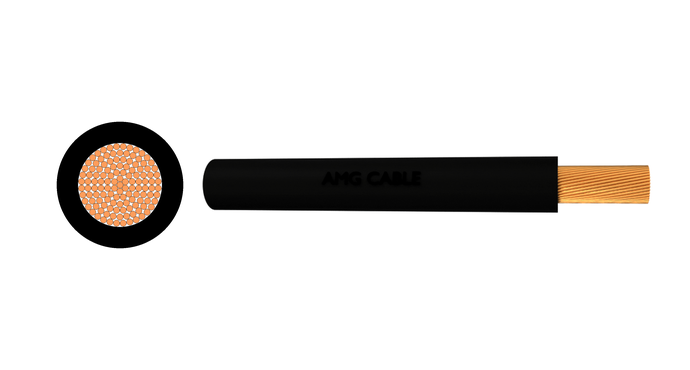

| THW / THWN Cable | Building wiring, conduit systems, electrical distribution |
| XHHW / XHHW-2 Cable | Feeders, branch circuits, commercial and industrial power systems |
| Silicone Rubber Cable | High-temperature equipment and flexible industrial applications |
| Submersible Pump Cable | Water pumps, deep well systems, underwater electrical equipment |
| Portable Welding Cable | Welding machines, construction sites, industrial workshops |
| Concentric Cable | Power distribution and service entrance applications |
The exact testing requirements depend on the cable construction, product category, and applicable UL product standard.

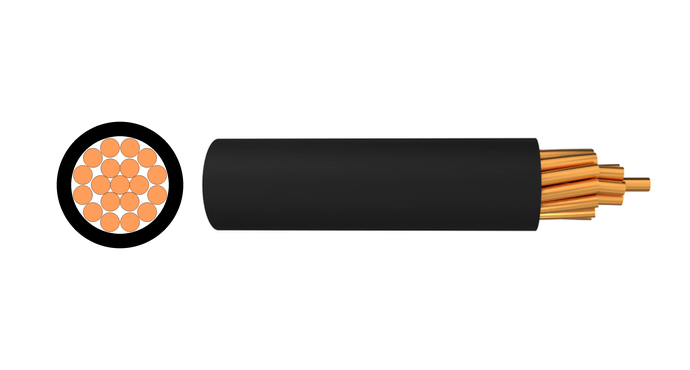

Yes, XHHW-2 cables are commonly evaluated using UL 1581 testing methods.
XHHW-2 is a thermoset insulated building wire type covered under UL 44, while UL 1581 provides many of the reference test methods used to evaluate its performance.
XHHW-2 cables are known for:
- Heat resistance
- Moisture resistance
- Good electrical insulation performance
- Suitability for wet and dry locations
Typical applications include:
- Commercial buildings
- Industrial facilities
- Underground feeders
- Electrical distribution systems
When selecting XHHW-2 cable, customers should confirm that the cable meets the applicable product standard and required UL approvals for the intended application.
UL 1581 and UL 44 serve different purposes.
| Standard | Main Purpose |
|---|---|
| UL 1581 | Defines reference test methods for electrical wires, cables, and flexible cords |
| UL 44 | Defines requirements for thermoset-insulated wires and cables, such as XHHW and XHHW-2 |
The key difference is:
- UL 1581 focuses on how cables are tested
- UL 44 focuses on the requirements of a specific cable product category
For example, an XHHW-2 cable may need to comply with UL 44 as the product standard and use UL 1581 test methods to verify characteristics such as flame resistance, electrical performance, and durability.
In simple terms:
UL 44 defines what an XHHW-2 cable should be, while UL 1581 defines how the cable performance is tested.
