Product Description
Aerial Bundled Cable (ABC) is an overhead power distribution cable consisting of multiple insulated phase conductors bundled tightly together; specifically designed for urban and forested areas, it offers high safety, short-circuit prevention, and exceptional weather resistance.
Application
Aerial bundled cables are suitable for overhead distribution lines and electrical installations in alternating current (AC) networks with a nominal voltage of U0/U 0.6/1 kV, or in direct current (DC) networks for land use with a maximum voltage of 0.9 kV.
Applicable Standard
AS/NZS 3560.1

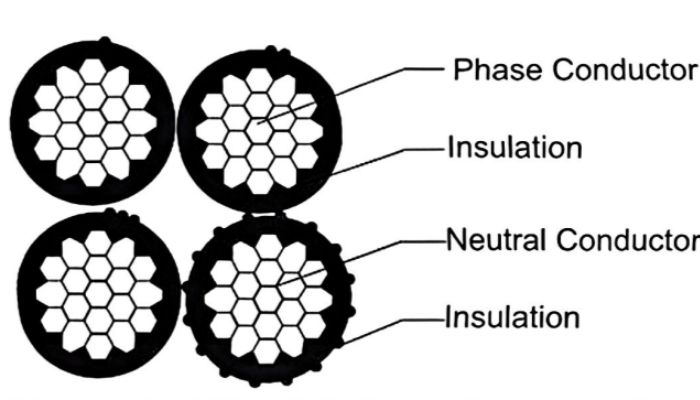

Construction
1. Phase Conductor
Circular stranded, rounded, compacted copper conductor
2. Neutral(Messenger) Conductor
Circular stranded, rounded, compacted copper conductor
3.Insulation
Black color Polyethylene(PE) or Cross-linked polyethylene(XLPE)
Technical Parameters
| Nominal conductor area |
Number and nominal diameter of wires |
Nominal conductor diameter |
Average insulation thickness |
Nominal diameter over insulation |
Nominal diameter over laid-up cores |
Approximate Weight |
| mm² | mm | mm | mm | mm | kg/km | |
| 2 Core | ||||||
| 6 | 7/1.04 | 3.1 | 1.3 | 5.7 | 11.4 | 151 |
| 10 | 7/1.35 | 4.1 | 1.3 | 6.7 | 13.4 | 235 |
| 16 | 7/1.70 | 5.1 | 1.3 | 7.7 | 15.4 | 352 |
| 3 Core | ||||||
| 6 | 7/1.04 | 3.1 | 1.3 | 5.7 | 12.3 | 226 |
| 10 | 7/1.35 | 4.1 | 1.3 | 6.7 | 14.4 | 352 |
| 16 | 7/1.70 | 5.1 | 1.3 | 7.7 | 16.6 | 528 |
| 4Core | ||||||
| 6 | 7/1.04 | 3.1 | 1.3 | 5.7 | 13.8 | 301 |
| 10 | 7/1.35 | 4.1 | 1.3 | 6.7 | 16.2 | 470 |
| 16 | 7/1.70 | 5.1 | 1.3 | 7.7 | 18.6 | 704 |
