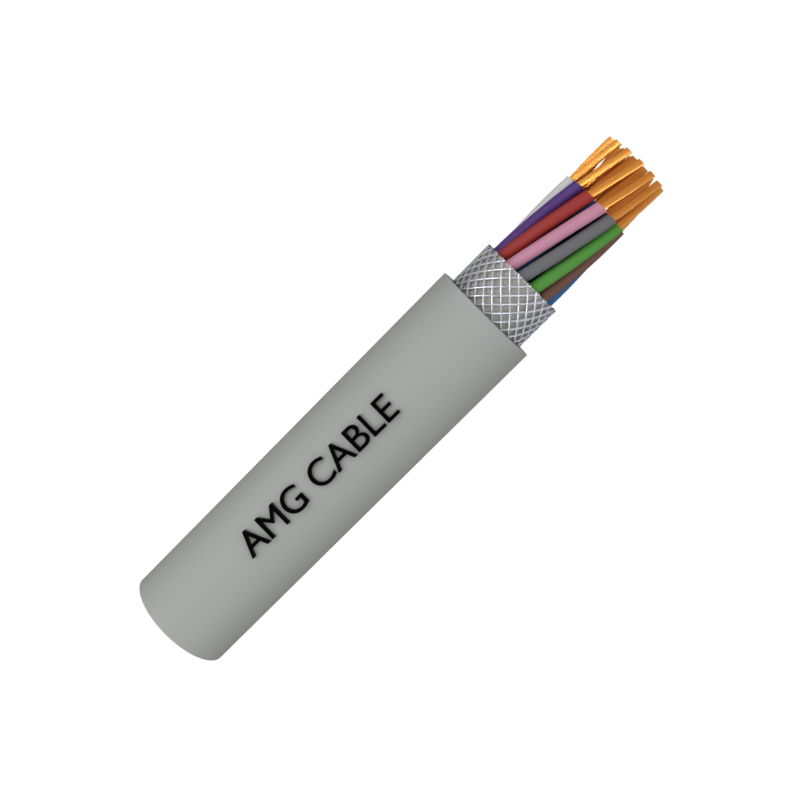

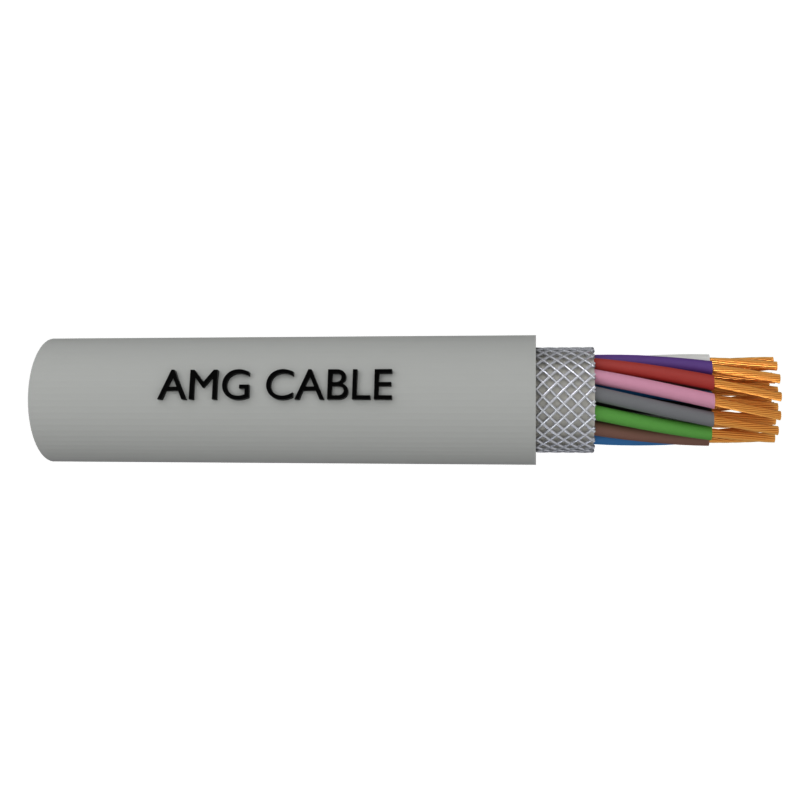

Product Description
The LiYCY screened cable delivers stable data integrity across industrial control panels, electronics, and machinery. Equipped with high-density braid shielding, it ensures uninterrupted performance in electrically noisy environments—making it the ideal wiring choice for your project.
Application
LiYCY screened cables(LiYCY Data Cables )are engineered for high-performance signal transmission in industrial process control units, computer systems, and automated electronic equipment. Featuring a robust tinned copper wire braid (TCWB), these cables ensure superior Electromagnetic Compatibility (EMC), protecting sensitive data from EMI in high-density electrical environments.
Applicable Standard
VDE 0812
VDE 0245 / VDE 0285
IEC 60227
EN 50525-2-11

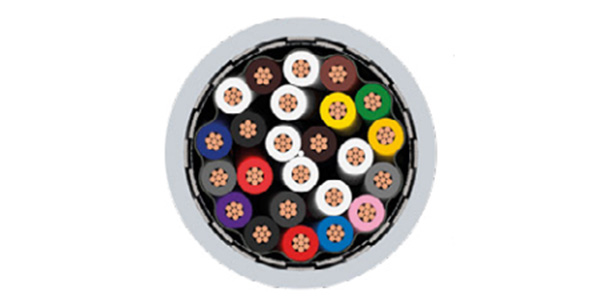

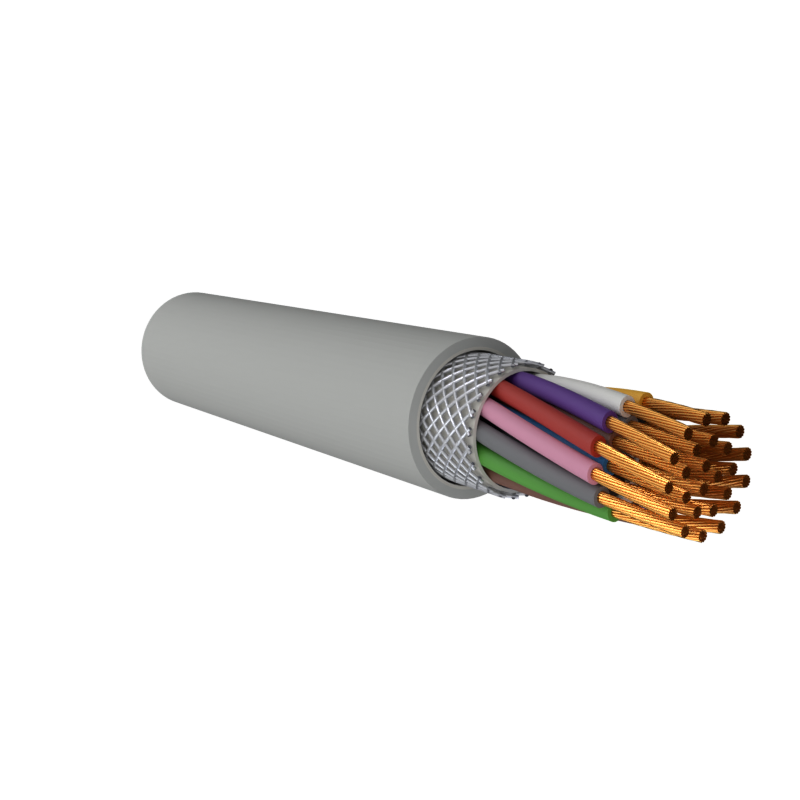

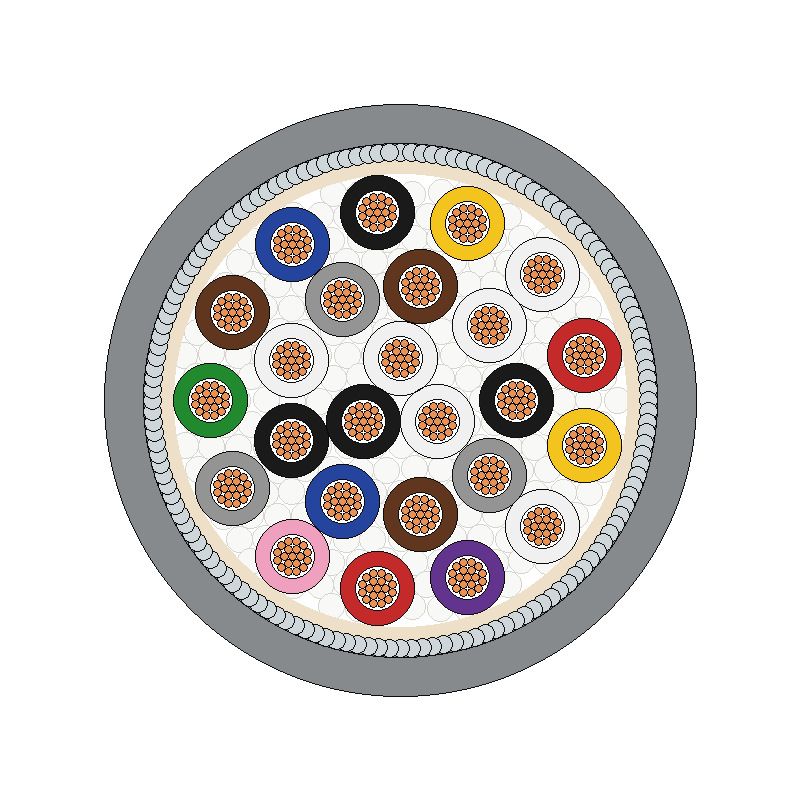

Construction
- Plain copper conductor
- PVC core insulation
- Plastic foil separator
- 85% tinned copper braid
- PVC outer jacket
Technical Parameter
0.5mm2 LiYCY
0.75mm2 LiYCY
1mm2 LiYCY
1.5mm2LiYCY
2.5mm2 LiYCY
4mm2 LiYCY
6mm2 LiYCY
10mm2LiYCY
16mm2LiYCY
25mm2LiYCY
35mm2 LiYCY
| Description | No.of Cores*Nom.Area | Approx Weight | Approx. Overall Diameter |
| ~ | No.xmm2 | KG/KM | mm |
| LiYCY-2C0.50SQ | 2×0.5 | 42 | 5.4 |
| LiYCY-3C0.50SQ | 3×0.5 | 51 | 5.8 |
| LiYCY-4C0.50SQ | 4×0.5 | 61 | 6.5 |
| LiYCY-7C0.50SQ | 7×0.5 | 98 | 7.8 |
| LiYCY-12C0.50SQ | 12×0.5 | 156 | 10.1 |
| LiYCY-18C0.50SQ | 18×0.5 | 215 | 11.8 |
| LiYCY-25C0.50SQ | 25×0.5 | 314 | 14.4 |
| Description | No.of Cores*Nom.Cross Section | Approx Weight | Approx. Overall Diameter |
| ~ | No.xmm2 | KG/KM | mm |
| LiYCY-2C0.75SQ | 2×0.75 | 56 | 6.7 |
| LiYCY-3C0.75SQ | 3×0.75 | 70 | 7.1 |
| LiYCY-4C0.75SQ | 4×0.75 | 95 | 7.6 |
| LiYCY-5C0.75SQ | 5×0.75 | 130 | 8.2 |
| LiYCY-7C0.75SQ | 7×0.75 | 168 | 8.9 |
| LiYCY-12C0.75SQ | 12×0.75 | 232 | 12.0 |
| LiYCY-18C0.75SQ | 18×0.75 | 315 | 13.9 |
| LiYCY-25C0.75SQ | 25×0.75 | 418 | 16.5 |
| LiYCY-30C0.75SQ | 30×0.75 | 500 | 18.0 |
| Description | No.of Cores*Nom.Cross Section | Approx Weight | Approx. Overall Diameter |
| ~ | No.xmm2 | KG/KM | mm |
| LiYCY-2C1.00SQ | 2×1 | 84 | 7.7 |
| LiYCY-3C1.00SQ | 3×1 | 110 | 8.5 |
| LiYCY-4C1.00SQ | 4×1 | 130 | 92 |
| LiYCY-5C1.00SQ | 5×1 | 156 | 9.9 |
| LiYCY-7C1.00SQ | 7×1 | 192 | 10.7 |
| LiYCY-12C1.00SQ | 12×1 | 265 | 13.7 |
| LiYCY-18C1.00SQ | 18×1 | 380 | 15.9 |
| LiYCY-25C1.00SQ | 25×1 | 475 | 17.5 |
| LiYCY-34C1.00SQ | 34×1 | 629 | 21.5 |
| Description | No.of Cores*Nom.Cross Section | Approx Weight | Approx. Overall Diameter |
| ~ | No.xmm2 | KG/KM | mm |
| LiYCY-2C1.50SQ | 2×1.5 | 97 | 8.1 |
| LiYCY-3C1.50SQ | 3×1.5 | 125 | 8.9 |
| LiYCY-4C1.50SQ | 4×1.5 | 165 | 9.7 |
| LiYCY-5C1.50SQ | 5×1.5 | 193 | 10.5 |
| LiYCY-7C1.50SQ | 7x 1.5 | 245 | 11.3 |
| LiYCY-12C1.50SQ | 12×1.5 | 365 | 14.5 |
| LiYCY-18C1.50SQ | 18×1.5 | 553 | 16.9 |
| LiYCY-25C1.50SQ | 25×1.5 | 720 | 20.1 |
| LiYCY-30C1.50SQ | 30×1.5 | 776 | 20.7 |
| LiYCY-42C1.50SQ | 42×1.5 | 1140 | 25.5 |
| Description | No.of Cores*Nom.Cross Section | Approx Weight | Approx. Overall Diameter |
| ~ | No.xmm2 | KG/KM | mm |
| LiYCY-2C2.50SQ | 2x 2.5 | 148 | 10.1 |
| LiYCY-3C2.50SQ | 3x 2.5 | 188 | 10.6 |
| LiYCY-4C2.50SQ | 4×2.5 | 236 | 11.6 |
| LiYCY-5C2.50SQ | 5×2.5 | 270 | 12.6 |
| LiYCY-7C2.50SQ | 7×2.5 | 340 | 13.7 |
| LiYCY-12C2.50SQ | 12×2.5 | 585 | 18.5 |
| LiYCY-18C2.50SQ | 18×2.5 | 725 | 19.7 |
| Description | No.of Cores*Nom.Cross Section | Approx Weight | Approx. Overall Diameter |
| ~ | No.xmm2 | KG/KM | mm |
| LiYCY-3C4.00SQ | 3×4 | 250 | 12.4 |
| LiYCY-4C4.00SQ | 4×4 | 302 | 13.5 |
| LiYCY-5C4.00SQ | 5×4 | 370 | 14.8 |
| LiYCY-7C4.00SQ | 7×4 | 473 | 16.1 |
| Description | No.of Cores*Nom.Cross Section | Approx Weight | Approx. Overall Diameter |
| ~ | No.xmm2 | KG/KM | mm |
| LiYCY-3C6.00SQ | 3×6 | 285 | 13.9 |
| LiYCY-4C6.00SQ | 4×6 | 412 | 15.2 |
| LiYCY-5C6.00SQ | 5×6 | 505 | 16.7 |
| Description | No.of Cores*Nom.Cross Section | Approx Weight | Approx. Overall Diameter |
| ~ | No.xmm2 | KG/KM | mm |
| LiYCY-4C10.0SQ | 4×10 | 620 | 20.8 |
| LiYCY-5C10.0SQ | 5×10 | 796 | 22.9 |
| Description | No.of Cores*Nom.Cross Section | Approx Weight | Approx. Overall Diameter |
| ~ | No.xmm2 | KG/KM | mm |
| LiYCY-4C16.05Q | 4×16 | 1090 | 23.2 |
| LiYCY-5C16.05Q | 5×16 | 2070 | 25.6 |
| Description | No.of Cores*Nom.Cross Section | Approx Weight | Approx. Overall Diameter |
| ~ | No.xmm2 | KG/KM | mm |
| LiYCY-4C25.0SQ | 4×25 | 1787 | 28.2 |
| LiYCY-5C25.0SQ | 5×25 | 2047 | 31.1 |
| Description | No.of Cores*Nom.Cross Section | Approx Weight | Approx. Overall Diameter |
| ~ | No.xmm2 | KG/KM | mm |
| LiYCY-4C35.0SQ | 4×35 | 2142 | 31.5 |
