Product Description
The NA2XSY is a single-core, unarmored aluminum power cable manufactured according to German VDE standards (DIN VDE 0276-620). It is designed for medium-voltage power distribution and is the aluminum-conductor equivalent of the N2XSY cable.
Application
NA2XSY cables are primarily used for medium-voltage (6/10KV-18/30kV) power distribution across utility grids, industrial plants, and infrastructure projects like railways or airports. They are essential for connecting renewable energy sites to the grid and are ideal for underground installation (buried or in ducts) to power heavy machinery and substations.
Applicable Standard
IEC 60502-2
VDE0276-620

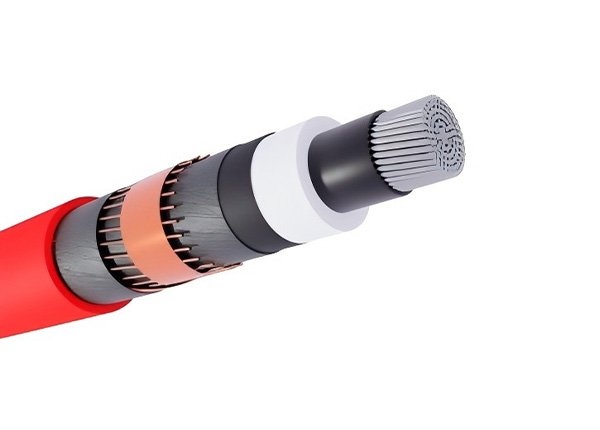

Construction
- Conductor：AL Round Conductor Class 2 to HRN HD383/IEC60228
- Inner Screen:Extruded Semi-Conductive Compound
- Insulation：XLPE(PE-X)
- External Screen: Extruded Semi-Conductive Compound
- Concentric Conductor: In inner layer corrugated spirally wrapped copper wires, in external layer copper tape wrapped in counter-helix
- Separating: Tape
- Sheath: PVC (Red)
Electrical Parameters
- Rated Voltage: 6/10 kV, 12/20 kV, 18/30 kV
- Max. Operating Temp: 90℃(Normal operation), 250℃(Short Circuit)
- Bending Radius:15*OD
Technical Parameter
6/10KV NA2XSY
12/20KV NA2XSY
18/30KV NA2XSY
| No./Nom. Cross Sectional Area | Construction | External Diameter |
External Diameter | Approx. Conductor Diameter | Nom. Insulation Thickness | Max.D.C.Resistance@20℃ | Cu Weight |
Approx. Weight |
| Nxmm² | mm | mm | mm | mm | Q/km | kg/km | kg/km | |
| 6/10kV | ||||||||
| 1×50/16 | RM | 24 | 29 | 8.6 | 3.4 | 0.641 | 182 | 766 |
| 1×70/16 | RM | 26 | 31 | 10.2 | 3.4 | 0.443 | 182 | 861 |
| 1×95/16 | RM | 27 | 32 | 12.0 | 3.4 | 0.320 | 182 | 985 |
| 1×120/16 | RM | 29 | 34 | 13.5 | 3.4 | 0.253 | 182 | 1089 |
| 1×150/16 | RM | 30 | 35 | 15.0 | 3.4 | 0.206 | 182 | 1250 |
| 1×150/25 | RM | 30 | 35 | 15.0 | 3.4 | 0.206 | 283 | 1273 |
| 1×185/16 | RM | 32 | 37 | 16.8 | 3.4 | 0.164 | 182 | 1400 |
| 1×185/25 | RM | 32 | 37 | 16.8 | 3.4 | 0.164 | 283 | 1424 |
| 1×240/16 | RM | 34 | 39 | 19.2 | 3.4 | 0.125 | 182 | 1600 |
| 1×240/25 | RM | 34 | 39 | 19.2 | 3.4 | 0.125 | 283 | 1640 |
| 1×300/25 | RM | 36 | 41 | 21.6 | 3.4 | 0.100 | 283 | 1856 |
| 1×400/35 | RM | 40 | 45 | 54.6 | 3.4 | 0.0778 | 394 | 2350 |
| 1×500/35 | RM | 43 | 48 | 27.6 | 3.4 | 0.0605 | 394 | 2700 |
| No./Nom. Cross Sectional Area | Construction | External Diameter |
External Diameter | Approx. Conductor Diameter | Nom. Insulation Thickness | Max.D.C.
Resistance@20℃ |
Cu Weight |
Approx. Weight |
| Nxmm² | mm | mm | mm | mm | Q/km | kg/km | kg/km | |
| 12/20KV | ||||||||
| 1×50/16 | RM | 28 | 33 | 8.6 | 5.5 | 0.641 | 182 | 942 |
| 1×70/16 | RM | 30 | 35 | 10.2 | 5.5 | 0.443 | 182 | 1047 |
| 1×95/16 | RM | 31 | 36 | 12.0 | 5.5 | 0.320 | 182 | 1182 |
| 1×120/16 | RM | 33 | 38 | 13.5 | 5.5 | 0.253 | 182 | 1296 |
| 1×150/16 | RM | 34 | 39 | 15.0 | 5.5 | 0.206 | 182 | 1450 |
| 1×150/25 | RM | 34 | 39 | 15.0 | 5.5 | 0.206 | 283 | 1486 |
| 1×185/16 | RM | 36 | 41 | 16.8 | 5.5 | 0.164 | 182 | 1650 |
| 1x¹85/25 | RM | 36 | 41 | 16.8 | 5.5 | 0.164 | 283 | 1694 |
| 1×240/16 | RM | 39 | 44 | 19.2 | 5.5 | 0.125 | 182 | 1850 |
| 1×240/25 | RM | 39 | 44 | 19.2 | 5.5 | 0.125 | 283 | 1880 |
| 1×300/25 | RM | 41 | 46 | 21.6 | 5.5 | 0.100 | 283 | 2200 |
| 1×400/35 | RM | 44 | 49 | 24.6 | 5.5 | 0.0778 | 394 | 2600 |
| 1×500/35 | RM | 47 | 52 | 27.6 | 5.5 | 0.0605 | 394 | 3000 |
| No./Nom. Cross Sectional Area | Construction | External Diameter |
External Diameter | Approx. Conductor Diameter | Nom. Insulation Thickness | Max.D.C.
Resistance@20℃ |
Cu Weight |
Approx. Weight |
| Nxmm² | mm | mm | mm | mm | Q/km | kg/km | kg/km | |
| 18/30KV | ||||||||
| 1×50/16 | RM | 33 | 38 | 8.6 | 8.0 | 0.641 | 182 | 1184 |
| 1×70/16 | RM | 35 | 40 | 10.2 | 8.0 | 0.443 | 182 | 1302 |
| 1×95/16 | RM | 36 | 41 | 12.0 | 8.0 | 0.032 | 182 | 1450 |
| 1×120/16 | RM | 38 | 43 | 13.5 | 8.0 | 0.253 | 182 | 1575 |
| 1×150/25 | RM | 39 | 44 | 15.0 | 8.0 | 0.206 | 283 | 1774 |
| 1x¹85/25 | RM | 41 | 46 | 16.8 | 8.0 | 0.164 | 283 | 1951 |
| 1×240/25 | RM | 43 | 48 | 19.2 | 8.0 | 0.125 | 283 | 2199 |
| 1×300/25 | RM | 46 | 51 | 21.6 | 8.0 | 0.100 | 283 | 2443 |
| 1×400/35 | RM | 49 | 54 | 24.6 | 8.0 | 0.0778 | 394 | 3000 |
| 1×500/35 | RM | 52 | 57 | 27.6 | 8.0 | 0.0605 | 394 | 3450 |
