Product Description
Aerial Bundled Cable (ABC) is an overhead power distribution cable consisting of multiple insulated phase conductors bundled tightly together; specifically designed for urban and forested areas, it offers high safety, short-circuit prevention, and exceptional weather resistance.
Application
Aerial bundled cables are suitable for overhead distribution lines and electrical installations in alternating current (AC) networks with a nominal voltage of U0/U 0.6/1 kV, or in direct current (DC) networks for land use with a maximum voltage of 0.9 kV.
Applicable Standard
GB/T 12527, IEC60502-1,IEC 60228

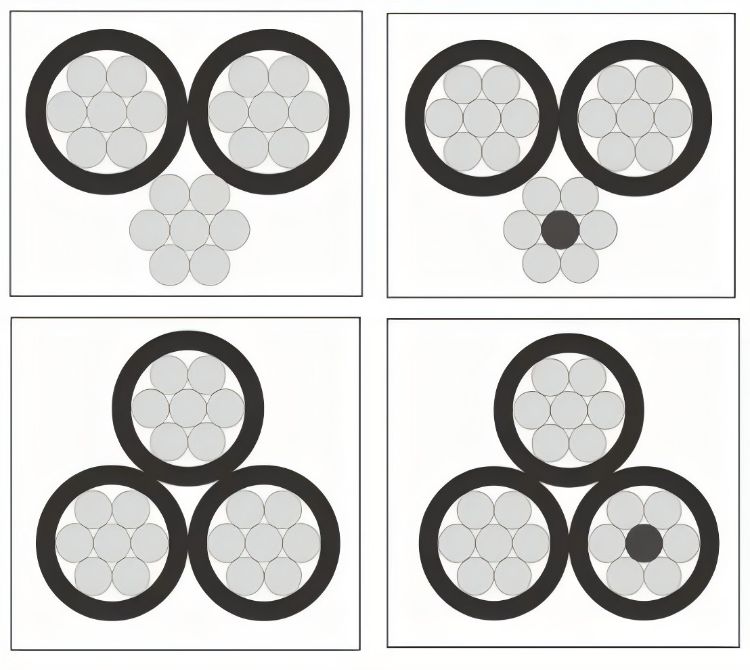

Construction
1. Phase Conductor
Circular stranded, rounded, compacted aluminum conductor
2. Neutral(Messenger) Conductor
Aluminum Conductor(AAC) or All Aluminum Alloy Conductor{AAAC)
3. Insulation
Black color Polyethylene(PE) or Cross-linked polyethylene(XLPE)
Technical Parameters
| No.of Core &Size |
Phase Core | Neutral Core | Complete Cable | ||||||
| No.& Area | No.of Wire | Dia.of Conductor (Approx.) |
Insulation Thickness |
No.and Section Area |
No.of Wire | Dia.of Conductor (Approx.) |
OverallDia. (Approx.) |
Weight (Approx.) |
|
| mm2 | mm2 | No. | mm | mm | mm2 | No. | mm | mm | kg/km |
| 1×10 | 1×10 | 7 | 4.05 | 1.0 | – | 6.1 | 43 | ||
| 1×16 | 1×16 | 7 | 4.80 | 1.2 | 72 | 64 | |||
| 1×25 | 1×25 | 7 | 6.00 | 1.2 | 8.4 | 92 | |||
| 1×35 | 1×35 | 7 | 7.00 | 1.4 | 9.8 | 127 | |||
| 1×50 | 1×50 | 7 | 8.10 | 1.4 | 11.1 | 165 | |||
| 1×70 | 1×70 | 19 | 10.00 | 1.4 | 12.8 | 230 | |||
| 1×95 | 1×95 | 19 | 11.60 | 1.6 | 14.8 | 315 | |||
| 1×120 | 1×120 | 19 | 13.00 | 1.6 | 16.2 | 390 | |||
| 1×150 | 1×150 | 19 | 14.60 | 18 | 18.2 | 476 | |||
| 1×185 | 1×185 | 37 | 16.20 | 2.0 | 20.2 | 609 | |||
| 2×10 | 2×10 | 7 | 4.00 | 1.0 | 12.2 | 85 | |||
| 2×16 | 2×16 | 7 | 4.80 | 1.2 | 14.4 | 128 | |||
| 2×25 | 2×25 | 7 | 6.00 | 1.2 | 16.8 | 184 | |||
| 2×35 | 2×35 | 7 | 7.00 | 1.4 | – | 19.6 | 255 | ||
| 2×50 | 2×50 | 7 | 8.10 | 1.4 | – | 22.2 | 329 | ||
| 2×70 | 2×70 | 19 | 10.00 | 1.4 | 25.6 | 459 | |||
| 3×10 | 3×10 | 7 | 4.00 | 1.0 | 13.1 | 128 | |||
| 3×16 | 3×16 | 7 | 4.80 | 1.2 | 17.4 | 192 | |||
| 3×25 | 3×25 | 7 | 6.00 | 1.2 | 20.3 | 276 | |||
| 3×35 | 3×35 | 7 | 700 | 1.4 | 21.1 | 382 | |||
| 3×50 | 3×50 | 7 | 8.10 | 1.4 | 23.9 | 494 | |||
| 3×70 | 3×70 | 19 | 10.00 | 1.4 | 276 | 688 | |||
| 3×95 | 3×95 | 19 | 11.60 | 1.6 | 31.9 | 943 | |||
| 3×120 | 3×120 | 19 | 13.00 | 1.6 | – | 34.9 | 1170 | ||
| 4×10 | 4×10 | 7 | 4.00 | 1.0 | 14.6 | 171 | |||
| 4×16 | 4×16 | 7 | 4.80 | 1.2 | 174 | 256 | |||
| 4×25 | 4×25 | 7 | 6.00 | 1.2 | – | 20.3 | 368 | ||
| 4×35 | 4×35 | 7 | 700 | 1.4 | – | 23.7 | 509 | ||
| 4×50 | 4×50 | 7 | 8.10 | 1.4 | 26.8 | 659 | |||
| 4×70 | 4×70 | 19 | 10.00 | 1.4 | 30.9 | 917 | |||
| 4×95 | 4×95 | 19 | 11.60 | 1.6 | 35.8 | 1258 | |||
| 4×120 | 4×120 | 19 | 13.00 | 1.6 | – | 39.1 | 1559 | ||
| 1×16+16 | 1×16 | 7 | 4.80 | 1.2 | 1×16 | 7 | 5.10 | 12.3 | 108 |
| 1×25+25 | 1×25 | 7 | 6.00 | 1.2 | 1×25 | 7 | 6.30 | 14.7 | 158 |
| 1×35+35 | 1×35 | 7 | 700 | 1.4 | 1×35 | 7 | 750 | 173 | 221 |
| 1×50+50 | 1×50 | 7 | 8.40 | 1.4 | 1×50 | 7 | 9.00 | 20.1 | 300 |
| 2×16+16 | 2×16 | 7 | 4.80 | 1.2 | 1×16 | 7 | 5.10 | 15.5 | 172 |
| 2×25+25 | 2×25 | 7 | 6.00 | 1.2 | 1×25 | 7 | 6.30 | 18.1 | 250 |
| 2×35+35 | 2×35 | 7 | 700 | 1.4 | 1×35 | 7 | 7.50 | 21.1 | 348 |
| 2×50+50 | 2×50 | 7 | 8.30 | 1.4 | 1×50 | 7 | 9.00 | 22.4 | 464 |
| 3×16+16 | 3×16 | 7 | 4.80 | 1.2 | 1×16 | 7 | 5.10 | 174 | 235 |
| 3×25+25 | 3×25 | 7 | 6.00 | 1.2 | 1×25 | 7 | 6.30 | 20.3 | 342 |
| 3×35+35 | 3×35 | 7 | 700 | 1.4 | 1×35 | 7 | 7.50 | 23.7 | 475 |
| 3×50+50 | 3×50 | 7 | 8.10 | 1.4 | 1×50 | 7 | 9.00 | 26.8 | 629 |
| 3×70+70 | 3×70 | 19 | 10.00 | 1.4 | 1×70 | 19 | 10.50 | 30.9 | 869 |
| 3×95+95 | 3×95 | 19 | 11.60 | 1.6 | 1×95 | 19 | 12.50 | 35.7 | 1200 |
| 3×35+16 | 3×35 | 7 | 700 | 1.4 | 1×16 | 7 | 4.80 | 22.2 | 445 |
| 3×50+25 | 3×50 | 7 | 8.10 | 1.4 | 1×25 | 7 | 6.00 | 24.8 | 585 |
| 3×70+35 | 3×70 | 19 | 10.00 | 1.4 | 1×35 | 7 | 7.00 | 30.9 | 815 |
| 3×95+50 | 3×95 | 19 | 11.60 | 1.6 | 1×50 | 7 | 8.10 | 35.7 | 1108 |
| 4×95+35 | 4×95 | 19 | 11.60 | 1.6 | 1×35 | 7 | 700 | 39.9 | 1385 |
| 3×120+70 | 3×120 | 19 | 13.00 | 1.6 | 1×70 | 19 | 10.00 | 39.1 | 1399 |
