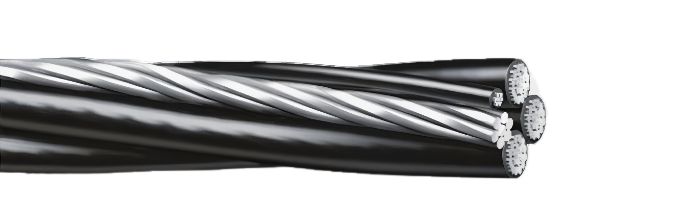

0.6/1KV ABC Cable to SANS 1418
0.6/1KV ABC Cable to SANS 1418
0.6/1KV ABC Cable to SANS 1418
0.6/1KV ABC Cable to SANS 1418
Aerial Cable(ABC Cable)

0.6/1KV ABC Cable to SANS 1418

SANS 1418 is a South African national standard for overhead bundled conductor (OBC) systems, covering low, medium, and high-voltage distribution and transmission lines.

Sans 1418
GET A QUOTE SEND EMAIL NOW

Product Description

SANS 1418 is a South African national standard for overhead bundled conductor (OBC) systems, covering low, medium, and high-voltage distribution and transmission lines. It specifies requirements for conductor cores, installation, grounding, and other key aspects to ensure optimal performance and reliability of power lines.

Application

Applied extensively in urban power grid upgrades, road lighting lines, and other scenarios. It is also ideal for locations with frequent lightning, dense forests, or heavy smoke.

Applicable Standard

Sans 1418—South African National Standard for Aerial Bundled Conductors System

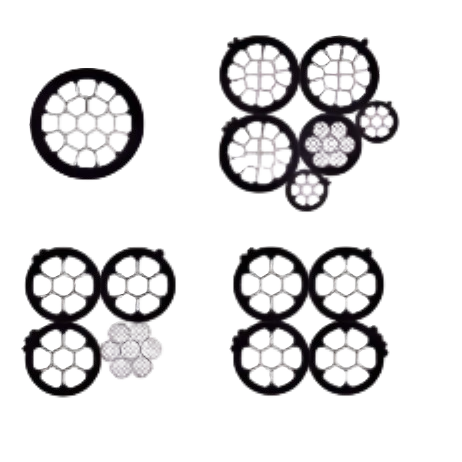

Construction

Phase Conductor: Concentric strand or compressed 1350-H19 conductor

Neutral Conductor: Aluminum Alloy 1350-H19,6201-T81, or ACSR conductors
Insulation: HDPE or XLPE

Technical Parameters

1-4 Core SANS 1418 ABC Cable without Neutral and Lighting Conductor
Four-Core SANS 1418 ABC Cable
ABC SANS 1418 Five Cores
Phase Phase Phase Cable Dia Rated
Strength (Min.KN）		 Conductor DC.Resistance at 20°℃
ohm/km

(Max.)
AAC+XLPE Conductor Insulation
  Compacted Dia. UV-XLPE
No.Of Cores Size Strand Nom. Min. OD.
4 16 7 4.8 1.2 0.98 7.2 17.42 2.07 1.91
4 25 7 6.0 1.4 1.16 8.B 21.3 3.3 1.20
4 35 7 7.0 1.6 1.34 10.2 24.68 4.5 0.868
4 50 7 8.3 1.6 1.34 11.5 27.83 6.2 0.641
4 70 19 10.0 1.8 1.52 13.6 32.91 8.9 0.443
4 95 19 11.6 1.8 1.52 15.2 36.78 12.3 0.320
4 120 19 13.0 1.8 1.52 16.6 40.17 15.6 0.253
4 150 19 14.6 1.8 1.52 18.2 44.04 192 0.205
3 16 7 4.8 1.2 0.98 7.2 15.55 2.07 1.91
3 25 7 6.0 1.4 1.16 8.8 19.01 3.3 1.20
3 35 7 7.0 1.6 1.34 10.2 22.03 4.5 0.868
3 50 7 8.3 1.6 1.34 11.5 24.84 6.2 0.641
3 70 19 10.0 1.8 1.52 13.6 29.3B 8.9 0.443
3 95 19 11.6 1.8 1.52 15.2 32.83 12.3 0.320
3 120 19 13.0 1.8 1.52 16.6 35.86 15.6 0.253
3 150 19 14.6 1.8 1.52 18.2 39.31 19.2 0.205
2 16 7 4.8 1.2 0.98 7.2 14.4 2.07 1.91
2 25 7 6.0 1.4 1.16 8.B 17.6 3.3 1.20
2 35 7 7.0 1.6 1.34 10.2 20.4 4.5 0.868
2 50 7 8.3 1.6 1.34 11.5 23 6.2 0.641
2 70 19 10.0 1.8 1.52 13.6 27.2 8.9 0.443
2 95 19 11.6 1.8 1.52 15.2 30.4 12.3 0.320
2 120 19 13.0 1.8 1.52 16.6 33.2 15.6 0.253
2 150 19 14.6 1.8 1.52 18.2 36.4 192 0.205
1 16 7 4.8 1.2 0.98 7.2 7.2 2.07 1.91
1 25 7 6.0 1.4 1.16 8.B 8.8 3.3 1.20
1 35 7 7.0 1.6 1.34 10.2 10.2 4.5 0.868
1 50 7 8.3 1.6 1.34 11.5 11.5 6.2 0.641
1 70 19 10.0 1.8 1.52 13.6 13.6 8.9 0.443
1 95 19 11.6 1.8 1.52 15.2 15.2 12.3 0.320
1 120 19 13.0 1.8 1.52 16.6 16.6 15.6 0.253
1 150 19 14.6 1.8 1.52 18.2 18.2 19.2 0.206
Phase Supporting Phase Supporting OD Rated
Strength

(Min.)

kN

 Conductor DC.
Resistance at 20℃
ohm/km(Max.)
AAC+XLPE AAAC+XLPE Conductor Insulation Conductor Insulation
Stranding No/.

Dia

 UV-XLPE Single
core		 OD. UV-XLPE
No./Size No./Size Nom. Min.

OD.

 Stranding No./Dia Nom. Min OD Phase Supporting Phase Supporting
3 35 1 54.6 7 7.0 16 1,34 10.2 7 3.15 9.45 1.6 1.34 12.65 26.17 4.5 16.6 0.868 0.63
3 50 1 54.6 7 8.3 1.6 1.34 11.5 7 3.15 9.45 1.6 1.34 12.65 28.53 6.2 16.6 0.641 0.63
3 70 1 54.6 19 10.0 18 1,52 13.6 7 3.15 9.45 1.6 1.34 12.65 32.34 8.9 16.6 0.443 0.63
3 95 1 54.6 19 11.6 1.8 1.52 5.2 7 3.15 9.45 1.6 1.34 12.65 35.24 12.3 16.6 0.320 0.63
3 120 1 54.6 19 13.0 18 1,52 16.6 7 3.15 9.45 1.6 1.34 12.65 37.78 15.6 16.6 0.253 0.63
3 150 1 54.6 19 14.6 1.8 1.52 18.2 7 3.15 9.45 1.6 1.34 12.65 40.69 19.2 16.6 0.206 0.63
3 16 1 70 7 4.8 1.2 0.98 7.2 7 35 105 1.6 1.34 137 21.36 2.07 20.1 1.91 0.50
3 25 1 70 7 6.0 1.4 1.16 8.8 7 3.5 10.5 1.6 1.34 137 24.26 3.3 20.1 1.20 0.50
3 35 1 70 7 7.0 1.6 1.34 10.2 7 3.5 10.5 1.6 1.34 13.7 26.8 4.5 20.1 0.868 0.50
3 50 1 70 7 8.3 1.6 1.34 11.5 7 3.5 10.5 1.6 1.34 137 29.16 6.2 20.1 0.641 0.50
3 70 1 70 19 10.0 18 1,52 13.6 7 3.5 10.5 1.6 1.34 13.7 32.97 8.9 20.1 0.443 0.50
3 95 1 70 19 11.6 18 1,52 15.2 7 3.5 10.5 1.6 1.34 13.7 35.88 12.3 20.1 0.320 0.50
3 120 1 70 19 13.0 18 1,52 16.6 7 3.5 10.5 1.6 1.34 13.7 38.42 15.6 20.1 0.253 0.50
3 150 1 70 19 14.6 1.8 1.52 18.2 7 3.5 10.5 1.6 1.34 137 41.32 19.2 20.1 0.206 0.50
Phase Supporting Service connection Phase Supporting Service connection Approx。OD
AAC+XLPE AAAC+XLPE AAC+XLPE Conductor Insulation Conductor Insulation Conductor Insulation
Wire No。 OD. UV-XLPE Single Core OD. UV-XLPE Wire No. OD XLPE
No./Size No./Size No./Size Nom Min OD. Wire No. OD. Nom. Min 0D. Nom Min OD.
3 16 1 54.6 1 25 7 4.8 1.2 0.98 7.2 7 3.15 9.45 1.6 1.34 12.65 7 6.0 1.4 1.16 8.8 27.05
3 25 1 54.6 1 25 7 6.0 1.4 1.16 8.8 7 3.15 9.45 1.6 1.34 12.65 7 6.0 1.4 1.16 8.8 30.25
3 35 1 54.6 1 25 7 7.0 1.6 1.34 10.2 7 3.15 9.45 1.6 1.34 12.65 7 6.0 1.4 1.16 8.8 33.05
3 50 1 54.6 1 25 7 8.3 1.6 1.34 11.5 7 3.15 9.45 1.6 1.34 12.65 7 6.0 1.4 1.16 8.8 35.65
3 70 1 54.6 1 25 19 10.0 1.8 1.52 13.6 7 3.15 9.45 1.6 1.34 12.65 7 6.0 1.4 1.16 8.8 39.85
3 95 1 54.6 1 25 19 11.6 1.8 1.52 15.2 7 3.15 9.45 1.6 1.34 12.65 7 6.0 1.4 1.16 8.8 43.05
3 120 1 54.6 1 25 19 13.0 1.8 1.52 16.6 7 3.15 9.45 1.6 1.34 12.65 7 6.0 1.4 1.16 8.8 45.85
3 150 1 54.6 1 25 19 14.6 1.8 1.52 18.2 7 3.15 9.45 1.6 .34 12.65 7 6.0 1.4 1.16 8.8 49.05
3 16 1 54.6 2 25 7 4.8 1.2 0.98 7.2 7 3.15 9.45 1.6 1.34 12.65 7 6.0 1.4 1.16 8.8 27.05
3 25 1 54.6 2 25 7 6.0 1.4 1.16 8.8 7 3.15 9.45 1.6 1.34 12.65 7 6.0 1.4 1.16 8.8 30.25
3 35 1 54.6 2 25 7 7.0 1.6 1.34 10.2 7 3.15 9.45 1.6 1.34 12.65 7 6.0 1.4 1.16 8.8 33.05
3 50 1 54.6 2 25 7 8.3 1.6 1.34 11.5 7 3.15 9.45 1.6 1.34 12.65 7 6.0 1.4 1.16 8.8 35.65
3 70 1 54.6 2 25 19 10.0 1.8 1.52 13.6 3 3.15 9.45 1.6 1.34 12.65 7 6.0 1.4 1.16 8.8 39.85
3 95 1 54.6 2 25 19 11.6 1.8 1.52 15.2 7 3.15 9.45 1.6 1.34 12.65 7 6.0 1.4 1.16 8.8 43.05
3 120 1 54.6 2 25 19 13.0 1.B 1.52 16.6 7 3.15 9.45 1.6 1.34 12.65 7 6.0 1.4 1.16 8.8 45.85
3 150 1 54.6 2 25 19 14.6 1.8 1.52 18.2 7 3.15 9.45 1.6 1.34 12.65 7 6.0 1.4 1.16 8.8 49.05
3 16 1 70 1 25 7 4.8 1.2 0.98 7.2 7 3.5 10.5 1.6 1.34 13.7 7 6.0 1.4 1.16 8.8 28.1
3 25 1 70 1 25 7 6.0 1.4 1.16 8.8 7 3.5 10.5 1.6 1.34 13.7 7 6.0 1.4 1.16 8.8 31.3
3 35 1 70 1 25 7 7.0 1.6 1.34 10.2 7 3.5 10.5 1.6 1.34 13.7 7 6.0 1.4 1.16 8.8 34.1
3 50 1 70 1 25 7 8.3 1.6 1.34 11.5 7 3.5 10.5 1.6 1.34 13.7 7 6.0 1.4 1.16 8.8 36.7
3 70 1 70 1 25 19 10.0 11.8 1.52 13.6 7 3.5 10.5 1.6 1.34 13.7 7 6.0 1.4 1.16 8.8 40.9
3 95 1 70 1 25 19 11.6 1.8 1.52 15.2 7 35 105 16 134 13.7 7 6.0 1.4 1.16 8.8 44.1
3 120 1 70 1 25 19 13.0 1.8 1.52 16.6 7 3.5 10.5 1.6 1.34 13.7 7 6.0 1.4 1.16 8.8 46.9
3 150 1 70 1 25 19 14.6 1.8 1.52 18.2 7 3.5 10.5 1.6 1.34 13.7 7 6.0 1.4 1.16 8.8 50.1
3 16 1 70 2 25 7 4.8 1.2 0.98 7.2 7 3.5 10.5 1.6 1.34 13.7 7 6.0 1.4 1.16 8.8 28.1
3 25 1 70 2 25 7 6.0 1.4 1.16 8.8 7 3.5 10.5 1.6 1.34 13.7 7 6.0 1.4 1.16 8.8 31.3
3 35 1 70 2 25 7 7.0 1.6 1.34 10.2 7 3.5 10.5 1.6 1.34 13.7 7 6.0 1.4 1.16 8.8 34.1
3 50 1 70 2 25 7 8.3 1.6 1.34 11.5 7 3.5 10.5 1.6 1.34 13.7 7 6.0 1.4 1.16 8.8 36.7
3 70 1 70 2 25 19 10.0 1.8 1.52 13.6 7 3.5 10.5 1.6 1.34 13.7 7 6.0 1.4 1.16 8.8 40.9
3 95 1 70 2 25 19 11.6 1.8 1.52 15.2 7 3.5 10.5 1.6 1.34 13.7 7 6.0 1.4 1.16 8.8 44.1
3 120 1 70 2 25 19 13.0 1.8 1.52 16.6 7 3.5 10.5 1.6 1.34 13.7 7 6.0 1.4 1.16 8.8 46.9
3 150 1 70 2 25 19 14.6 1.8 1.52 18.2 7 3.5 10.5 1.6 1.34 13.7 7 6.0 1.4 1.16 8.8 50.1
3 16 1 54.6 1 16 7 4.8 1.2 0.98 7.2 7 3.15 9.45 1.6 1.34 12.65 7 4.8 1.2 0.98 7.2 27.05
3 25 1 54.6 1 16 7 6.0 1.4 1.16 8.8 7 3.15 9.45 1.6 1.34 12.65 7 4.8 1.2 0.98 7.2 30.25
3 35 1 54.6 1 16 7 7.0 1.6 1.34 10.2 7 3.15 9.45 1.6 1.34 12.65 7 4.8 1.2 0.98 7.2 33.05
3 50 1 54.6 1 16 7 8.3 1.6 1.34 11.5 7 3.15 9.45 1.6 1.34 12.65 7 4.8 1.2 0.98 7.2 35.65
3 70 1 54.6 1 16 19 10.0 1.8 1.52 13.6 7 3.15 9.45 1.6 1.34 12.65 7 4.8 1.2 0.98 7.2 39.85
3 95 1 54.6 1 16 19 11.6 1.8 1.52 15.2 7 3.15 9.45 1.6 1.34 12.65 7 4.8 1.2 0.98 7.2 43.05
3 120 1 54.6 1 16 19 13.0 1.8 1.52 16.6 7 3.15 9.45 1.6 1.34 12.65 7 4.8 1.2 0.98 7.2 45.85
3 150 1 54.6 1 16 19 14.6 1.8 1.52 18.2 7 3.15 9.45 1.6 1.34 12.65 7 4.8 1.2 0.98 7.2 49.05
3 16 1 54.6 2 16 7 4.8 1.2 0.98 7.2 7 3.15 9.45 1.6 1.34 12.65 7 4.8 1.2 0.98 7.2 27.05
3 25 1 54.6 2 16 7 6.0 1.4 1.16 8.8 7 3.15 9.45 1.6 1.34 12.65 7 4.8 1.2 0.98 7.2 30.25
3 35 1 54.6 2 16 7 7.0 1.6 1.34 10.2 7 3.15 9.45 1.6 1.34 12.65 7 4.8 1.2 0.98 7.2 33.05
3 50 1 54.6 2 16 7 8.3 1.6 1.34 11.5 7 3.15 9.45 1.6 1.34 12.65 7 4.8 1.2 0.98 7.2 35.65
3 70 1 54.6 2 16 19 10.0 1.8 1.52 13.6 7 3.15 9.45 1.6 1.34 12.65 7 4.8 1.2 0.98 7.2 39.85
3 95 1 54.6 2 16 19 11.6 1.8 1.52 15.2 7 3.15 9.45 1.6 1.34 12.65 7 4.8 1.2 0.98 7.2 43.05
3 120 1 54.6 2 16 19 13.0 1.8 1.52 16.6 7 3.15 9.45 1.6 1.34 12.65 7 4.8 1.2 0.98 7.2 45.85
3 150 1 54.6 2 16 19 14.6 1.8 1.52 18.2 7 3.15 9.45 1.6 1.34 12.65 7 4.8 1.2 0.98 7.2 49.05
3 16 1 70 1 16 7 4.8 1.2 0.98 7.2 7 3.5 10.5 1.5 1.25 13.5 7 4.8 1.2 0.98 7.2 27.9
3 25 1 70 1 16 7 6.0 1.4 1.16 8.8 7 3.5 10.5 1.5 1.25 13.5 7 4.8 1.2 0.98 7.2 31.1
3 35 1 70 1 16 7 7.0 1.6 1.34 10.2 7 3.5 10.5 1.5 1.25 13.5 7 4.8 1.2 0.98 7.2 33.9
3 50 1 70 1 16 7 8.3 1.6 1.34 11.5 7 3.5 10.5 1.5 1.25 13.5 7 4.8 1.2 0.98 7.2 36.5
3 70 1 70 1 16 19 10.0 1.8 1.52 13.6 7 3.5 10.5 1.5 1.25 13.5 7 4.8 1.2 0.98 7.2 40.7
3 95 1 70 1 16 19 11.6 1.8 1.52 15.2 7 3.5 10.5 1.5 1.25 13.5 7 4.8 1.2 0.98 7.2 43.9
3 120 1 70 1 16 19 13.0 1.8 1.52 16.6 7 3.5 10.5 1.5 1.25 13.5 7 4.8 1.2 0.98 7.2 46.7
3 150 1 70 1 16 19 14.6 1.8 1.52 18.2 7 3.5 10.5 1.5 1.25 13.5 7 4.8 1.2 0.98 7.2 49.9
3 16 1 70 2 16 7 4.8 1.2 0.98 7.2 7 3.5 10.5 1.5 1.25 13.5 7 4.8 1.2 0.98 7.2 27.9
3 25 1 70 2 16 7 6.0 1.4 1.16 8.8 7 3.5 10.5 1.5 1.25 13.5 7 4.8 1.2 0.98 7.2 31.1
3 35 1 70 2 16 7 7.0 1.6 1.34 10.2 7 3.5 10.5 1.5 1.25 13.5 7 4.8 1.2 0.98 7.2 33.9
3 50 1 70 2 16 7 8.3 1.6 1.34 11.5 7 3.5 10.5 1.5 1.25 13.5 7 4.8 1.2 0.98 7.2 36.5
3 70 1 70 2 16 19 10.0 1.8 1.52 13.6 7 3.5 10.5 1.5 1.25 13.5 7 4.8 1.2 0.98 7.2 40.7
3 95 1 70 2 16 19 11.6 1.8 1.52 15.2 7 3.5 10.5 1.5 1.25 13.5 7 4.8 1.2 0.98 7.2 43.9
3 120 1 70 2 16 19 13.0 1.8 1.52 16.6 7 3.5 10.5 1.5 1.25 13.5 7 4.8 1.2 0.98 7.2 46.7
3 150 1 70 2 16 19 14.6 1.8 1.52 18.2 7 3.5 10.5 1.5 1.25 13.5 7 4.8 1.20 .98 7.2 49.9
