Product Description
Aerial Bundled Cable (ABC) is an overhead power distribution cable consisting of multiple insulated phase conductors bundled tightly together; specifically designed for urban and forested areas, it offers high safety, short-circuit prevention, and exceptional weather resistance.
Application
This cable is applicable to overhead distribution lines with a rated voltage of 0.6/1 kV and below.
Applicable Standard
NF C33-209: Insulated or Protected Cables for Power Networks – Insulated Cables Assembled in Harness for Overhead Networks with a Rated Voltage of 0.6/1 kV.

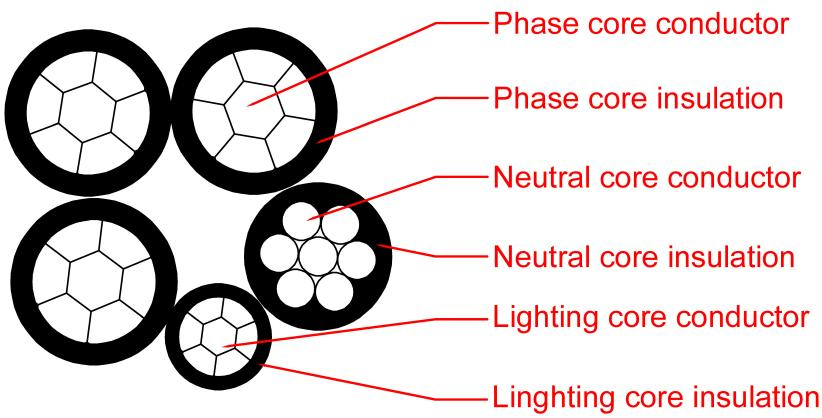

Construction
- Phase Conductor: Circular stranded, round stranded and compressed(RM).
- Neutral Conductor: Aluminum Alloy Conductor(AlMgSi),round stranded compressed(RM).
- Street Lighting Conductor: Circular stranded,rounded,compacted aluminum conductor.
- Insulation:Black color Polyethylene(PE) or Cross-linked polyethylene(XLPE).
Technical Parameters
| Cross Section Aera | Phase Core | Neutral Core | Street Lighting Core | Complete Cable | ||||||||||
| No.&
Cross-Section |
Wire No. | Approx.Dia | Insulation Thickness |
No.&
Cross-Section |
Wire No. | Approx.Dia | Insulation Thickness |
No. and Section area |
Wire No. | Approx.Dia | Insulation Thickness |
Approx.Dia |
Approx.Weight
|
|
| mm2 | mm2 | No. | mm | mm | mm2 | No. | mm | mm | mm2 | No. | mm | mm | mm | kg/km |
| 2*16 | 2×16 | 7 | 4.8 | 1.2 | 14.2 | 126 | ||||||||
| 2*25 | 2×25 | 7 | 6.0 | 1.4 | 176 | 194 | ||||||||
| 2*35 | 2×35 | 7 | 70 | 1.6 | – | – | – | 20.4 | 266 | |||||
| 2*50 | 2×50 | 7 | 8.1 | 1.6 | 22.6 | 341 | ||||||||
| 4*16 | 4×16 | 7 | 4.8 | 1.2 | 17.2 | 252 | ||||||||
| 4*25 | 4×25 | 7 | 6.0 | 1.4 | 21.2 | 388 | ||||||||
| 4*35 | 4×35 | 7 | 7.0 | 1.6 | – | – | 24.6 | 533 | ||||||
| 3*25+54.6 | 3×25 | 7 | 6.0 | 1.4 | 1×54.6 | 7 | 9.45 | 1.6 | – | – | 23.6 | 496 | ||
| 3*25+54.6+1*16 | 3×25 | 7 | 6.0 | 1.4 | 1×54.6 | 7 | 9.45 | 1.6 | 1×16 | 7 | 4.8 | 1.2 | 24.9 | 560 |
| 3*25+54.6+2*16 | 3×25 | 7 | 6.0 | 1.4 | 1×54.6 | 7 | 9.45 | 1.6 | 2×16 | 7 | 4.8 | 1.2 | 26.6 | 624 |
| 3*35+54.6 | 3×35 | 7 | 70 | 1.6 | 1×54.6 | 7 | 9.45 | 1.6 | – | – | – | 26.1 | 604 | |
| 3*35+54.6+1*16 | 3×35 | 7 | 70 | 1.6 | 1×54.6 | 7 | 9.45 | 1.6 | 1×16 | 7 | 4.8 | 1.2 | 27.2 | 668 |
| 3*35+54.6+2*16 | 3×35 | 7 | 70 | 1.6 | 1×54.6 | 7 | 9.45 | 1.6 | 2×16 | 7 | 4.8 | 1.2 | 28.7 | 732 |
| 3*50+54.6 | 3×50 | 7 | 8.1 | 1.6 | 1×54.6 | 7 | 9.45 | 1.6 | 28.1 | 716 | ||||
| 3*50+54.6+1*16 | 3×50 | 7 | 8.1 | 1.6 | 1×54.6 | 7 | 9.45 | 1.6 | 1×16 | 7 | 4.8 | 1.2 | 28.9 | 780 |
| 3*50+54.6+2*16 | 3×50 | 7 | 8.1 | 1.6 | 1×54.6 | 7 | 9.45 | 1.6 | 2×16 | 7 | 4.8 | 1.2 | 30.3 | 844 |
| 3*70+54.6 | 3×70 | 12 | 10.0 | 1.8 | 1×54.6 | 7 | 9.45 | 1.6 | 32.2 | 940 | ||||
| 3*70+54.6+1*16 | 3×70 | 12 | 10.0 | 1.8 | 1×54.6 | 7 | 9.45 | 1.6 | 1×16 | 7 | 4.8 | 1.2 | 32.7 | 1004 |
| 3*70+54.6+2*16 | 3×70 | 12 | 10.0 | 1.8 | 1×54.6 | 7 | 9.45 | 1.6 | 2×16 | 7 | 4.8 | 1.2 | 33.8 | 1068 |
| 3*70+54.6+1*25 | 3×70 | 12 | 10.0 | 1.8 | 1×54.6 | 7 | 9.45 | 1.6 | 1×25 | 7 | 6.0 | 1.4 | 33.6 | 1038 |
| 3*70+54.6+2*25 | 3×70 | 12 | 10.0 | 1.8 | 1×54.6 | 7 | 9.45 | 1.6 | 2×25 | 7 | 6.0 | 1.4 | 35.5 | 1137 |
| 3*70+70 | 3×70 | 12 | 10.0 | 1.8 | 1×70 | 7 | 10.20 | 1.5 | 32.1 | 970 | ||||
| 3*70+70+1*16 | 3×70 | 12 | 10.0 | 1.8 | 1×70 | 7 | 10.20 | 1.5 | 1×16 | 7 | 4.8 | 1.2 | 32.5 | 1035 |
| 3*70+70+2*16 | 3×70 | 12 | 10.0 | 1.8 | 1×70 | 7 | 10.20 | 1.5 | 2×16 | 7 | 4.8 | 1.2 | 33.6 | 1099 |
| 3*95+70 | 3×95 | 19 | 11.7 | 1.8 | 1×70 | 7 | 10.20 | 1.5 | – | 35.6 | 1212 | |||
| 3*95+70+1*16 | 3×95 | 19 | 11.7 | 1.8 | 1×70 | 7 | 10.20 | 1.5 | 1×16 | 7 | 4.8 | 1.2 | 35.7 | 1276 |
| 3*95+70+2*16 | 3×95 | 19 | 11.7 | 1.8 | 1×70 | 7 | 10.20 | 1.5 | 2×16 | 7 | 4.8 | 1.2 | 36.6 | 1340 |
| 3*120+70 | 3×120 | 19 | 13.0 | 1.8 | 1×70 | 7 | 10.20 | 1.5 | 38.0 | 1439 | ||||
| 3*120+70+1*16 | 3×120 | 19 | 13.0 | 1.8 | 1×70 | 7 | 10.20 | 1.5 | 1×16 | 7 | 4.8 | 1.2 | 378 | 1503 |
| 3*120+70+2*16 | 3×120 | 19 | 13.0 | 1.8 | 1×70 | 7 | 10.20 | 1.5 | 2×16 | 7 | 4.8 | 1.2 | 38.6 | 1567 |
| 3*150+70 | 3×150 | 19 | 14.4 | 1.7 | 1×70 | 7 | 10.20 | 1.5 | 40.2 | 1650 | ||||
| 3*150+70+1*16 | 3×150 | 19 | 14.4 | 1.7 | 1×70 | 7 | 10.20 | 1.5 | 1×16 | 7 | 4.8 | 1.2 | 39.8 | 1714 |
| 3*150+70+2*16 | 3×150 | 19 | 14.4 | 1.7 | 1×70 | 7 | 10.20 | 1.5 | 2×16 | 7 | 4.8 | 1.2 | 40.4 | 1778 |
| 3*120+95 | 3×120 | 19 | 13.0 | 1.8 | 1×95 | 19 | 12.50 | 1.6 | 39.5 | 1526 | ||||
| 3*120+95+1*16 | 3×120 | 19 | 13.0 | 1.8 | 1×95 | 19 | 12.50 | 1.6 | 1×16 | 7 | 4.8 | 1.2 | 39.5 | 1590 |
| 3*120+95+2*16 | 3×120 | 19 | 13.0 | 1.8 | 1×95 | 19 | 12.50 | 1.6 | 2×16 | 7 | 4.8 | 1.2 | 39.8 | 1654 |
| 3*150+95 | 3×150 | 19 | 14.4 | 1.7 | 1×95 | 19 | 12.50 | 1.6 | 41.7 | 1736 | ||||
| 3*150+95+1*16 | 3×150 | 19 | 14.4 | 1.7 | 1×95 | 19 | 12.50 | 1.6 | 1×16 | 7 | 4.8 | 1.2 | 41.7 | 1800 |
| 3*150+95+2*16 | 3×150 | 19 | 14.4 | 1.7 | 1×95 | 19 | 12.50 | 1.6 | 2×16 | 7 | 4.8 | 1.2 | 41.6 | 1865 |
