Product Description

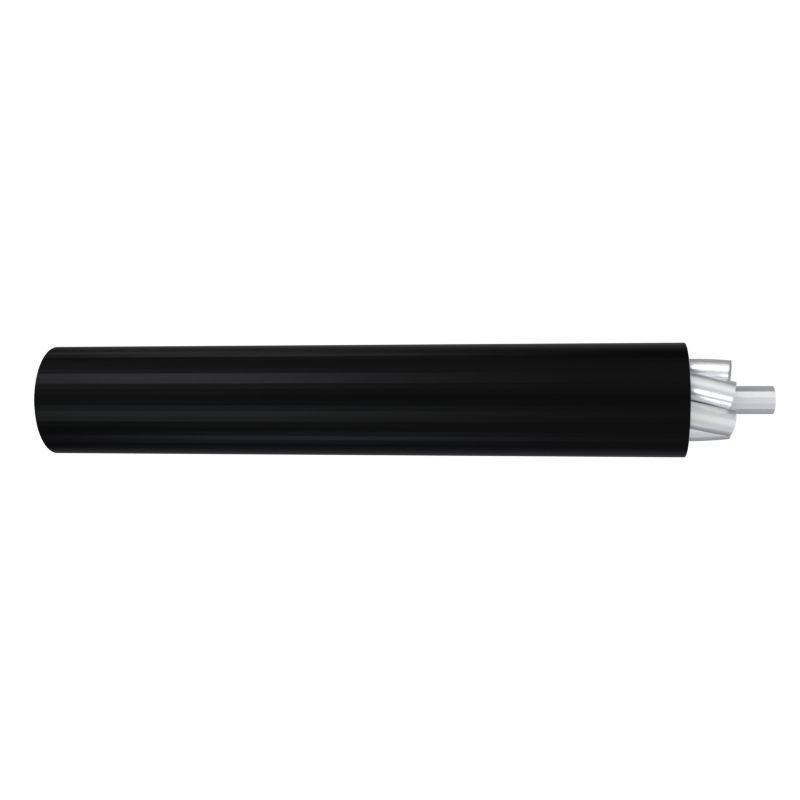

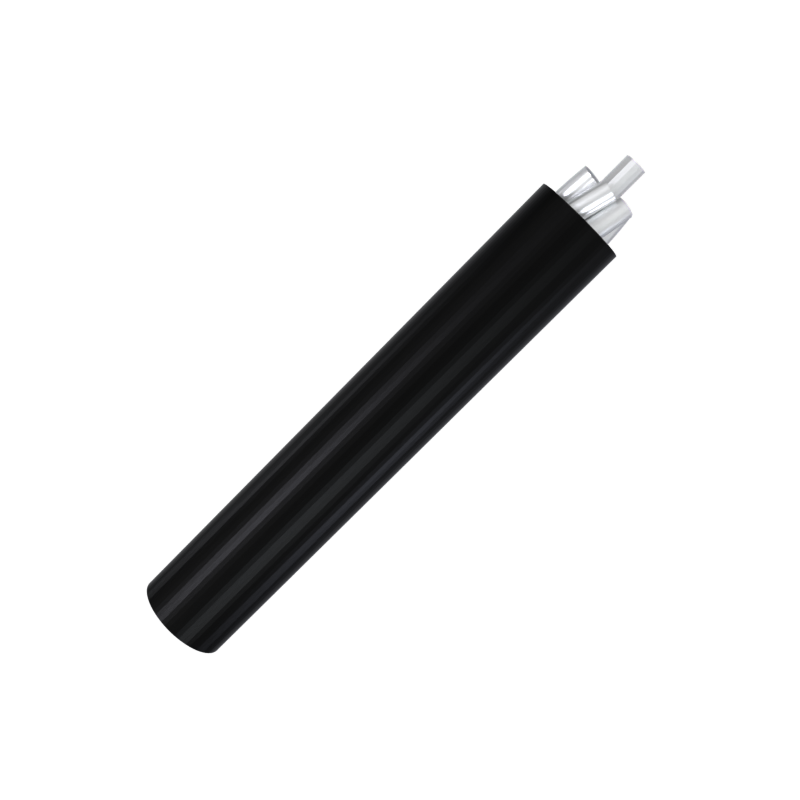

CAAPI Cable features a concentric-lay-stranded 6201-T81 aluminum alloy conductor with XLPE Insulation, providing optimized conductivity and high mechanical strength and offers exceptional durability and resistance to sunlight (UV), moisture, heat, and industrial fumes, ensuring reliable performance in demanding environments.
Application
It is used for primary and secondary overhead distribution networks. Its use is essential when these networks pass through wooded or forested areas. Suitable for outdoor installation in industrial plants, mines, and similar environments. With a maximum conductor temperature 75℃
and manufactured to the NTP 370.045 standard, this cable is essential for Primary and Secondary Overhead Distribution Networks. It is particularly suitable for installations crossing wooded areas and is widely used for reliable outdoor power runs in demanding environments such as industrial plants and mines.
Applicable Standard
NTP 370.045 ICEA S-76-474

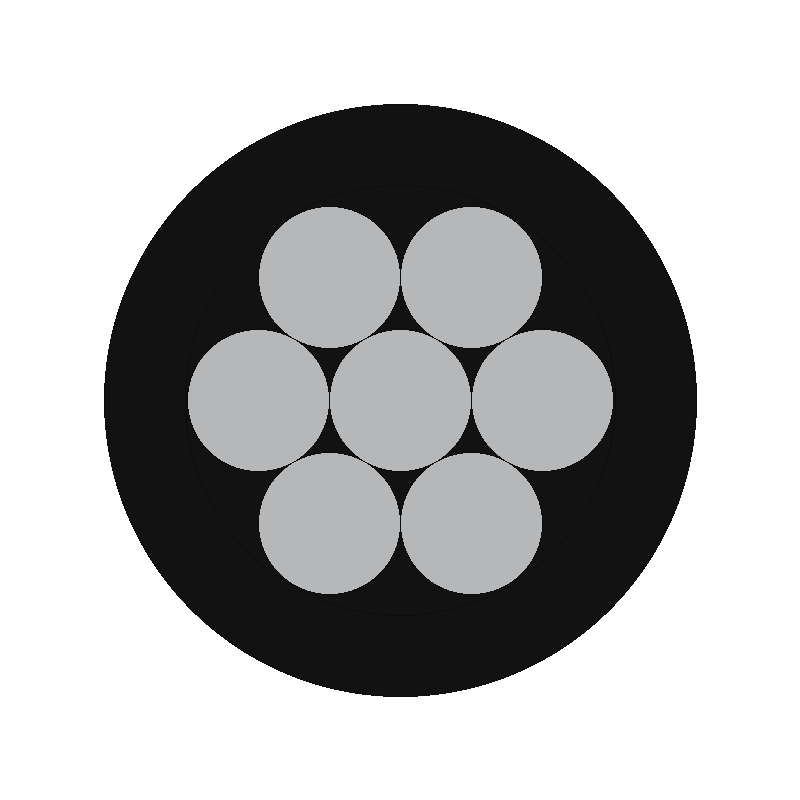

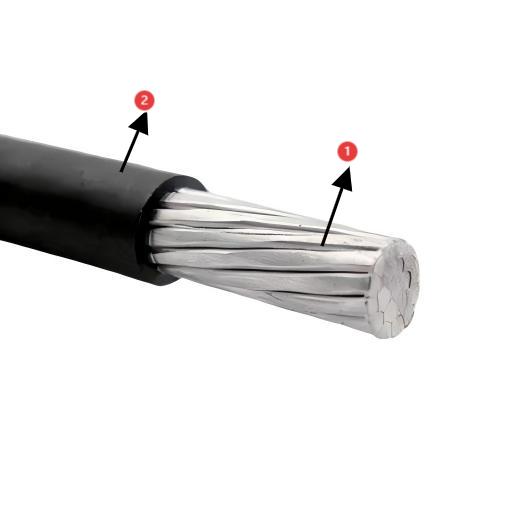

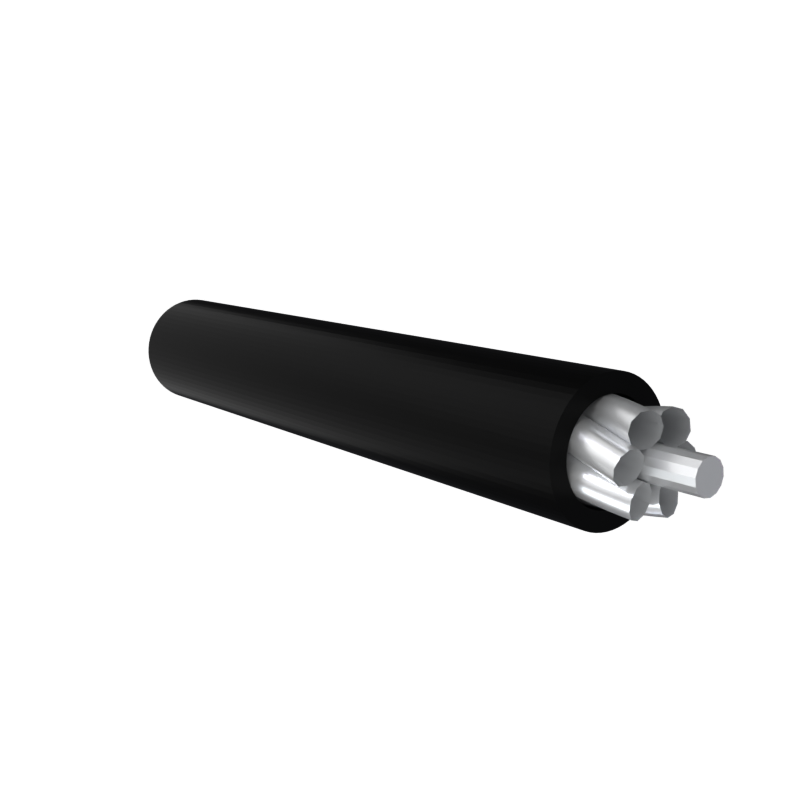

Construction
- Conductor: Concentrically stranded conductor, Aluminum Alloy 6201 – T81(AAAC)
- Outer Protection: Black thermoplastic polyethylene jacket, resistant to UV, moisture, heat, and industrial fumes(XLPE)(PE is available upon request)
Technical Parameters
| Nom Cross Section | Wire No.in Conductor | Diameter of Wire | Overall Diameter | Nom.Insulation Thickness | Approx.Overall Diameter | Approx.Weight |
| mm2 | No. | mm | mm | mm | mm | KG/KM |
| 10 | 7 | 1.35 | 4.05 | 1.0 | 6.05 | 43.00 |
| 25 | 7 | 2.13 | 6.39 | 1.2 | 8.79 | 96.00 |
| 35 | 7 | 2.50 | 7.50 | 1.4 | 10.30 | 128.00 |
| 50 | 7 | 3.03 | 9.09 | 1.4 | 11.89 | 182.00 |
| 70 | 7 | 3.57 | 10.71 | 1.4 | 13.51 | 242.00 |
| 95 | 19 | 2.52 | 12.60 | 1.6 | 15.80 | 328.00 |
| 120 | 19 | 2.84 | 14.20 | 1.6 | 17.40 | 406.00 |
| 150 | 19 | 3.16 | 15.80 | 1.8 | 19.40 | 503.00 |
| 185 | 19 | 3.52 | 17.60 | 2.0 | 21.60 | 624.00 |
