Product Description
N2XOH/NA2XOH Unipolar cables,suitable for use in public premises (areas of public gathering) where Halogen-Free, Non-Flame Propagating, and Low Smoke Emission cables are required.
Application
N2XOH/NA2XOH Unipolar cables are generally installed inside ducts, in the air, or directly buried, in both dry or wet locations.In case of fire, the cable’s outer sheath is non-flammable and self-extinguishing, surpassing the requirements of Standard IEC 60332-3-24 Category C. The cable’s outer sheath is resistant to solar radiation (UV), surpassing the requirements of Standard ASTM G-155.
Applicable Standard
IEC60228,IEC60502-1,IEC 60332-3-24

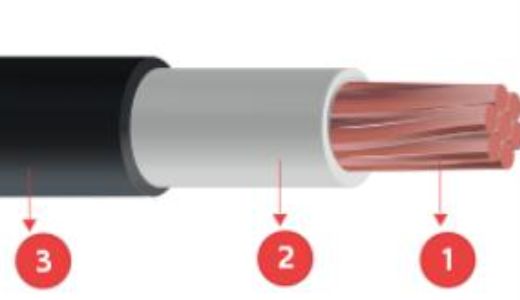

Construction
- Conductor: Copper/Aluminum Conductor
- Insulation: Cross-linked polyethylene (XLPE)
- Outer Sheath: Extruded layer of halogen-free flame-retardant (HFFR) thermoplastic compound, flame non-propagating, abrasion-resistant, UV (solar radiation) resistant. Marked at 1-meter intervals.
Technical Parameters
N2XOH Unipolar
NA2XOH Unipolar
| Nom.Cross Sectional Area | Min Wire No.in Conductor | Diameter of Conductor | Nom.Insulation Thickness | Nom.Sheath Thicness | Approx.Overall Diameter | Approx.Weight |
| mm2 | mm | mm | mm | mm | mm | Kg/Km |
| 1×2,5 | 7 | 2.0 | 0.7 | 1.4 | 6.2 | 70 |
| 1×4 | 7 | 2.5 | 0.7 | 1.4 | 6.7 | 85 |
| 1×6 | 7 | 3.0 | 0.7 | 1.4 | 7.2 | 110 |
| 1×10 | 7 | 3.8 | 0.7 | 1.4 | 8.0 | 150 |
| 1×16 | 7 | 4.8 | 0.7 | 1.4 | 9.0 | 220 |
| 1×25 | 7 | 6.0 | 0.9 | 1.4 | 10.6 | 330 |
| 1×35 | 7 | 7.2 | 0.9 | 1.4 | 11.8 | 420 |
| 1×50 | 19 | 8.8 | 1.0 | 1.4 | 13.6 | 560 |
| 1×70 | 19 | 10.4 | 1.1 | 1.4 | 15.4 | 770 |
| 1×95 | 19 | 12.0 | 1.1 | 1.5 | 17.2 | 1040 |
| 1×120 | 37 | 13.5 | 1.2 | 1.5 | 18.9 | 1280 |
| 1×150 | 37 | 15.2 | 1.4 | 1.6 | 21.2 | 1570 |
| 1×185 | 37 | 16.8 | 1.6 | 1.6 | 23.2 | 1950 |
| 1×240 | 37 | 19.2 | 1.7 | 1.7 | 26.0 | 2520 |
| 1×300 | 61 | 21.5 | 1.8 | 1.8 | 28.7 | 3140 |
| 1×400 | 61 | 24.9 | 2.0 | 1.9 | 32.7 | 4010 |
| 1×500 | 61 | 27.8 | 2.2 | 2.0 | 36.2 | 5060 |
| Nom.Cross Sectional Area | Min Wire No.in Conductor | Diameter of Conductor | Nom.Insulation Thickness | Nom.Sheath Thicness | Approx.
Overall Diameter |
Approx.Weight |
| mm2 | mm | mm | mm | mm | mm | Kg/Km |
| 1×16 | 7 | 5.07 | 0.7 | 1.40 | 10 | 110 |
| 1×25 | 7 | 6.37 | 0.9 | 1.40 | 12 | 150 |
| 1×35 | 7 | 7.50 | 0.9 | 1.40 | 13 | 190 |
| 1×50 | 19 | 8.85 | 1.0 | 1.40 | 15 | 240 |
| 1×70 | 19 | 10.70 | 1.1 | 1.40 | 17 | 310 |
| 1×95 | 19 | 12.60 | 1.1 | 1.50 | 19 | 410 |
| 1×120 | 37 | 14.10 | 1.2 | 1.50 | 21 | 500 |
| 1×150 | 37 | 15.80 | 1.4 | 1.60 | 23 | 610 |
| 1×185 | 37 | 17.60 | 1.6 | 1.60 | 25 | 740 |
| 1×240 | 37 | 20.20 | 1.7 | 1.70 | 28 | 950 |
| 1×300 | 61 | 22.60 | 1.8 | 1.80 | 31 | 1290 |
| 1×400 | 61 | 25.60 | 2.0 | 1.90 | 35 | 1460 |
| 1×500 | 61 | 29.00 | 2.2 | 2.00 | 39 | 1970 |
