0.6/1KV N2XY/NA2XY(YJV/YJLV)

Product Description

The N2XY (Copper) and NA2XY (Aluminum) cables are European-standard power distribution cables, widely recognized in international markets for their reliability in low-voltage installations. In the Chinese standard (GB), these are equivalent to YJV and YJLV cables respectively.

Application

N2XY/NA2XY(YJV/YJLV) are distribution cables, widely applicable for use in low-voltage power distribution systems and all types of industrial electrical installations.

Applicable Standard

NTP-IEC 60502-1 IEC60228

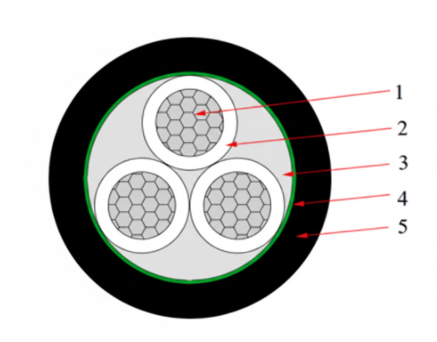

Construction

Material:Copper or Aluminum ,Class 1 (solid) or Class 2 (stranded),circular or compacted circular
Insulation:Cross-linked Polyethylene (XLPE)
Inner Sheath:PVC Bedding
Binder Tape: Non-woven wrapping tape if needed
Outer Jacket:Polyvinyl Chloride (PVC)

Technical Parameters

1 Core

2 Cores

3 Cores

4 Cores

5 Cores

3+1 Core

4+1Cores

Nominal Cross-Section Area	Insulation Nominal Thick.	Sheath Nominal Thick.	Approx. Overall Dia.	Approx.Weight (kg/km)
mm2	mm	mm	mm	Cu	AL
1X1.5	0.7	1.4	5.58	43	34
1X2.5	0.7	1.4	5.98	55	40
1X4	0.7	1.4	6.45	72	48
1X6	0.7	1.4	6.96	95	58
1X10	0.7	1.4	8.25	142	79
1X16	0.7	1.4	9.30	204	104
1X25	0.9	1.4	11.02	306	148
1X35	0.9	1.4	12.16	404	184
1X50	1	1.4	13.70	531	234
1X70	1.1	1.4	15.7	743	314
1X95	1.1	1.5	17.8	1007	418
1X120	1.2	1.5	19.61	1254	502
1X150	1.4	1.6	21.75	1539	616
1X185	1.6	1.6	24.04	1913	754
1X240	1.7	1.7	27.05	2487	964
1X300	1.8	1.8	29.88	3096	1186
1X400	2	1.9	33.45	3937	1493
1X500	2.2	2.0	37.65	5082	1904

Nominal Cross-Section Area	Insulation Nominal Thick.	Sheath Nominal Thick.	Approx. Overall Dia.	Approx.Weight (kg/km)
mm2	mm	mm	mm	Cu	AL
2X1.5	0.7	1.8	9.3	105	–
2X2.5	0.7	1.8	10.1	134	103
2X4	0.7	1.8	11.04	173	124
2X6	0.7	1.8	12.06	223	149
2X10	0.7	1.8	14.64	337	209
2X16	0.7	1.8	16.74	475	273
2X25	0.9	1.8	16.03	615	304
2X35	0.9	1.8	17.53	808	376
2X50	1	1.8	19.68	1064	479
2X70	1.1	1.9	22.46	1512	652
2X95	1.1	2.0	25.44	2012	840
2X120	1.2	2.1	27.92	2508	1030
2X150	1.4	2.2	30.83	3085	1261
2X185	1.6	2.3	34.23	3840	1558
2X240	1.7	2.5	38.50	4993	1994
2X300	1.8	2.6	42.33	6201	2438

Nominal Cross-Section Area	Insulation Nominal Thick.	Sheath Nominal Thick.	Approx. Overall Dia.	Approx.Weight (kg/km)
mm2	mm	mm	mm	Cu	AL
3X1.5	0.7	1.8	12.93	248	–
3X2.5	0.7	1.8	13.79	304	257
3X4	0.7	1.8	14.80	370	296
3X6	0.7	1.8	15.9	455	342
3X10	0.7	1.8	18.68	639	450
3X16	0.7	1.8	20.94	860	561
3X25	0.9	1.8	20.7	1075	599
3X35	0.9	1.8	22.6	1379	719
3X50	1	1.8	25.2	1785	892
3X70	1.1	2.0	30.5	2830	1516
3X95	1.1	2.1	34.2	3659	1867
3X120	1.2	2.2	37.2	4464	2204
3X150	1.4	2.4	40.9	5416	2628
3X185	1.6	2.5	45.3	6635	3146
3X240	1.7	2.7	50.2	8470	3883
3X300	1.8	2.9	55.4	10409	4656

Nominal Cross-Section Area	Insulation Nominal Thick.	Sheath Nominal Thick.	Approx. Overall Dia.	Approx.Weight (kg/km)
mm2	mm	mm	mm	Cu	AL
4X4	0.7	1.8	12.55	266	166
4X6	0.7	1.8	13.78	356	205
4X10	0.7	1.8	16.9	548	295
4X16	0.7	1.8	19.43	800	399
4X25	0.9	1.8	21.25	1150	526
4X35	0.9	1.8	23.4	1527	662
4X50	1	1.9	26.71	2039	866
4X70	1.1	2.0	30.52	2915	1180
4X95	1.1	2.1	34.83	3896	1545
4X120	1.2	2.3	38.4	4883	1918
4X150	1.4	2.4	42.44	5012	2353
4X185	1.6	2.6	47.37	7514	2936

Nominal Cross-Section Area	Insulation Nominal Thick.	Sheath Nominal Thick.	Approx. Overall Dia.	Approx.Weight (kg/km)
mm2	mm	mm	mm	Cu	AL
5X1.5	0.7	1.8	11.25	173	–
5X2.5	0.7	1.8	12.33	233	155
5X4	0.7	1.8	13.6	319	193
5X6	0.7	1.8	14.97	430	241
5X10	0.7	1.8	18.46	666	349
5X16	0.7	1.8	21.2	978	476
5X25	0.9	1.8	23.58	1420	640
5X35	0.9	1.8	26	1890	807
5X50	1	2.0	29.94	2539	1074
5X70	1.1	2.1	34.17	3630	1473
5X95	1.1	2.3	39.26	4871	1932
5X120	1.2	2.4	42.99	6081	2374
5X150	1.4	2.6	47.73	7508	2935
5X185	1.6	2.8	53.24	9382	3659
5X240	1.7	3.0	59.95	12206	4684
5X300	1.8	3.2	66.28	15209	5772

Nominal Cross-Section Area	Phase core Nominal Thick.	Neutral core Nominal Thick.	Nom.Sheath Thick	Approx. Overall Diameter	Approx.Weight (kg/km)
mm2	mm	mm	mm	mm	CU	AL
3X2.5+1X1.5	0.7	0.7	1.8	11.18	183	–
3X4 +1X2.5	0.7	0.7	1.8	12.27	247	156
3X6 +1X 4	0.7	0.7	1.8	13.47	331	192
3X10 +1X 6	0.7	0.7	1.8	16.12	495	267
3X16+1X 10	0.7	0.7	1.8	18.8	730	366
3X25 +1X 16	0.9	0.7	1.8	20.78	1054	486
3X35 +1X 16	0.9	0.7	1.8	22.4	1342	591
3X50 +1X 25	1	0.9	1.8	25.29	1808	772
3X70 +1X 35	1.1	0.9	1.9	28.82	2565	1054
3X95 +1X 50	1.1	1	2.1	33.06	3443	1386
3X120 +1X 70	1.2	1.1	2.2	36.54	4396	1739
3X150 +1X 70	1.4	1.1	2.3	39.75	5243	2066
3X185 +1X 95	1.6	1.1	2.5	44.67	6622	2598
3X240 +1X 120	1.7	1.2	2.7	50.05	8571	3314
3X300 +1X 150	1.8	1.4	2.9	55.33	10667	4087

Nominal Cross-Section Area	Phase core Nominal Thick.	Neutral core Nominal Thick.	Nom.Sheath Thick	Approx. Overall Diameter	Approx.Weight (kg/km)
mm2	mm	mm	mm	mm	CU	AL
4X2.5+1X1.5	0.7	0.7	1.8	12.11	218	–
4X4 +1X2.5	0.7	0.7	1.8	13.34	297	181
4X6 +1X 4	0.7	0.7	1.8	14.7	402	226
4X10 +1X 6	0.7	0.7	1.8	17.76	609	319
4X16+1X 10	0.7	0.7	1.8	20.72	902	437
4X25 +1X 16	0.9	0.7	1.8	23.11	1329	604
4X35 +1X 16	0.9	0.7	1.8	25.03	1715	748
4X50 +1X 25	1	0.9	1.9	28.55	2323	993
4X70 +1X 35	1.1	0.9	2.1	32.72	3312	1369
4X95 +1X 50	1.1	1	2.2	37.35	4429	1783
4X120 +1X 70	1.2	1.1	2.4	41.39	5644	2245
4X150 +1X 70	1.4	1.1	2.5	45.14	6773	2681
4X185 +1X 95	1.6	1.1	2.7	50.63	8533	3365
4X240 +1X 120	1.7	1.2	2.9	56.79	11057	4294
4X300 +1X 150	1.8	1.4	3.1	62.78	13762	5293
