Product Description
The NA2XY Triplex Parallel cable is a 0.6/1(1.2) kV low-voltage cable, consisting of three parallel NA2XY single-core cables bundled together.
Application
This cable represents an efficient and reliable standard solution for industrial and power distribution networks.
Applicable Standard
NTP-IEC 60502-1
Construction

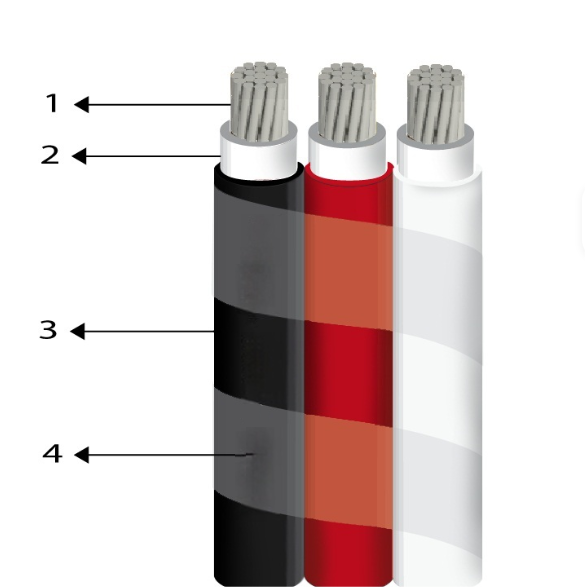

- Conductor: 1350 Aluminum(Solid type for cross-sections up to 10 mm²,Compact round stranded type for cross-sections exceeding 10 mm².)
- Insulation: Cross-linked polyethylene (XLPE).
- Outer sheath: Polyvinyl chloride (PVC ST2)(available in black, white and red for three-phase identification)
- Core assembly: The three cores are laid up in parallel and wrapped with non-hygroscopic tape.
Technical Parameters
NA2XY Triplex Parallel Cable
| Nom.Cross Section | Wire No.in Conductor | Nominal Thickness(mm) | Approx Diameter(mm) | Approx Weight | ||
| mm2 | No. | Insulation | Sheath | Phase | Overall | KG/KM |
| 3-1×10 | 7 | 0.7 | 1.40 | 8.5 | 9×26 | 235 |
| 3-1×16 | 7 | 0.9 | 1.40 | 10.0 | 10×30 | 320 |
| 3-1×25 | 7 | 0.9 | 1.40 | 12.0 | 12×35 | 450 |
| 3-1×35 | 7 | 0.9 | 1.40 | 13.0 | 13×39 | 550 |
| 3-1×50 | 7 | 1.0 | 1.40 | 14.0 | 14×42 | 695 |
| 3-1×70 | 19 | 1.1 | 1.50 | 16.0 | 16×48 | 925 |
| 3-1×95 | 19 | 1.1 | 1.50 | 18.0 | 18×54 | 1215 |
| 3-1×120 | 19 | 1.2 | 1.50 | 19.0 | 19x 57 | 1480 |
| 3-1×150 | 19 | 1.4 | 1.60 | 22.0 | 22×66 | 1815 |
| 3-1×185 | 37 | 1.6 | 1.60 | 24.0 | 24×72 | 2205 |
| 3-1×240 | 37 | 1.7 | 1.70 | 27.0 | 27×81 | 2825 |
| 3-1×400 | 61 | 2.0 | 1.90 | 32.0 | 32×96 | 4365 |
