Product Description
This type of cable is a standard low-voltage power solution designed according to IEC 60502-1. It is engineered for fixed installations where mechanical protection (armoring) is not required, focusing instead on flexibility and environmental safety.
Application
This 0.6/1kV PVC insulated unarmored cable is primarily designed for fixed installation in dry or damp indoor environments, suitable for power transmission and distribution systems in industrial plants, commercial buildings,and residential complexes where mechanical protection requirements are not stringent.
Applicable Standard
IEC60228 IEC60502-1

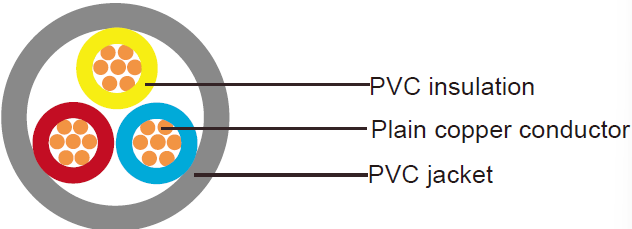

Construction
- Conductor: Class 1or Class 2 Aluminum or Copper Conductor
- Insulation: PVC Insulation
- Out Sheath: PVC Out sheath(Flame Retardant PVC available on request)
- Fire Performance: Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, Halogen Free material comply to IEC60754-1/2 and IEC 60684-2.
Technical Parameters
Single Core
Two Core
Three Core
Four Core
Five Core
3+1 Core
4+1 Core
| Nominal
Cross-Section Area |
Nominal Insulation Thickness | Nom. Sheath Thickness | Approx.
Overall Dia. |
Approx.Weight | |
| Cu | AL | ||||
| mm2 | mm | mm | mm | kg/km | |
| 1X1.5 | 0.8 | 1.4 | 5.8 | 48 | 39 |
| 1X2.5 | 0.8 | 1.4 | 6.2 | 61 | 45 |
| 1X4 | 1 | 1.4 | 7 | 84 | 60 |
| 1X6 | 1 | 1.4 | 7.6 | 108 | 71 |
| 1X10 | 1 | 1.4 | 8.8 | 212 | 149 |
| 1X16 | 1 | 1.8 | 10.7 | 223 | 123 |
| 1X25 | 1.2 | 1.8 | 12.4 | 330 | 172 |
| 1X35 | 1.2 | 1.8 | 13.5 | 431 | 212 |
| 1X50 | 1.4 | 1.8 | 15.3 | 571 | 274 |
| 1X70 | 1.4 | 1.8 | 17 | 783 | 354 |
| 1X95 | 1.6 | 1.8 | 19.3 | 1069 | 474 |
| 1X120 | 1.6 | 1.8 | 20.9 | 1317 | 565 |
| 1X150 | 1.8 | 1.8 | 22.9 | 1614 | 690 |
| 1X185 | 2 | 1.8 | 25.1 | 2013 | 854 |
| 1X240 | 2.2 | 1.8 | 28.2 | 2615 | 1092 |
| 1X300 | 2.4 | 1.9 | 31.1 | 3256 | 1345 |
| 1X400 | 2.6 | 2 | 34.7 | 4123 | 1680 |
| 1X500 | 2.8 | 2.1 | 38.7 | 5302 | 2124 |
| Nominal
Cross-Section Area |
Nominal Insulation Thickness | Nom. Sheath Thickness | Approx.
Overall Dia. |
Approx.Weight | |
| Cu | AL | ||||
| mm2 | mm | mm | mm | kg/km | |
| 2X1.5 | 0.8 | 1.8 | 9.7 | 112 | – |
| 2X2.5 | 0.8 | 1.8 | 10.5 | 141 | 110 |
| 2X4 | 1 | 1.8 | 12.24 | 197 | 147 |
| 2X6 | 1 | 1.8 | 13.26 | 249 | 174 |
| 2X10 | 1 | 1.8 | 15.84 | 366 | 238 |
| 2X16 | 1 | 1.8 | 17.94 | 509 | 306 |
| 2X25 | 1.2 | 1.8 | 22 | 666 | 466 |
| 2X35 | 1.2 | 1.8 | 24.2 | 865 | 557 |
| 2X50 | 1.4 | 1.8 | 22.2 | 1145 | 584 |
| 2X70 | 1.4 | 1.9 | 25 | 1596 | 749 |
| 2X95 | 1.6 | 2 | 28.6 | 2142 | 986 |
| 2X120 | 1.6 | 2.1 | 31 | 2639 | 1181 |
| 2X150 | 1.8 | 2.2 | 34.2 | 3254 | 1454 |
| 2X185 | 2 | 2.4 | 37.8 | 4042 | 1782 |
| 2X240 | 2.2 | 2.5 | 39.51 | 5236 | 2237 |
| 2X300 | 2.4 | 2.7 | 43.74 | 6525 | 2762 |
| Nominal
Cross-Section Area |
Nominal Insulation Thickness | Nom. Sheath Thickness | Approx.
Overall Dia. |
Approx.Weight | |
| Cu | AL | ||||
| mm2 | mm | mm | mm | kg/km | |
| 3X1.5 | 0.8 | 1.8 | 10.16 | 137 | – |
| 3X2.5 | 0.8 | 1.8 | 11.02 | 176 | 129 |
| 3X4 | 1 | 1.8 | 12.89 | 251 | 176 |
| 3X6 | 1 | 1.8 | 13.99 | 324 | 210 |
| 3X10 | 1 | 1.8 | 16.77 | 481 | 291 |
| 3X16 | 1 | 1.8 | 19.03 | 680 | 379 |
| 3X25 | 1.2 | 1.8 | 23.3 | 955 | 511 |
| 3X35 | 1.2 | 1.8 | 25.7 | 1249 | 630 |
| 3X50 | 1.4 | 1.8 | 25.1 | 1788 | 823 |
| 3X70 | 1.4 | 1.9 | 28.2 | 2410 | 1056 |
| 3X95 | 1.6 | 2.1 | 32.2 | 3217 | 1410 |
| 3X120 | 1.6 | 2.2 | 35.2 | 3986 | 1702 |
| 3X150 | 1.8 | 2.3 | 39.4 | 4969 | 2105 |
| 3X185 | 2 | 2.5 | 43.6 | 6127 | 2589 |
| 3X240 | 2.2 | 2.7 | 48.8 | 7869 | 3276 |
| 3X300 | 2.4 | 2.9 | 53.2 | 9676 | 3960 |
| Nominal
Cross-Section Area |
Nominal Insulation Thickness | Nom. Sheath Thickness | Approx.
Overall Dia. |
Approx.Weight | |
| Cu | AL | ||||
| mm2 | mm | mm | mm | kg/km | |
| 4X4 | 1 | 1.8 | 13.8 | 300 | 201 |
| 4X6 | 1 | 1.8 | 14.9 | 399 | 251 |
| 4X10 | 1 | 1.8 | 17.6 | 621 | 365 |
| 4X16 | 1 | 1.8 | 20 | 914 | 497 |
| 4X25 | 1.2 | 1.8 | 22 | 1361 | 656 |
| 4X35 | 1.2 | 1.8 | 24.4 | 1766 | 810 |
| 4X50 | 1.4 | 1.9 | 28.4 | 2358 | 1071 |
| 4X70 | 1.4 | 2 | 31.6 | 3183 | 1378 |
| 4X95 | 1.6 | 2.2 | 36 | 4245 | 1837 |
| 4X120 | 1.6 | 2.3 | 39.3 | 5263 | 2218 |
| 4X150 | 1.8 | 2.5 | 43.9 | 6578 | 2760 |
| 4X185 | 2 | 2.6 | 48.5 | 8077 | 3360 |
| 3X300 | 2.4 | 2.9 | 53.2 | 9676 | 3960 |
| Nominal
Cross-Section Area |
Nominal Insulation Thickness | Nom. Sheath Thickness | Approx.
Overall Dia. |
Approx.Weight | |
| Cu | AL | ||||
| mm2 | mm | mm | mm | kg/km | |
| 5X1.5 | 0.8 | 1.8 | 11.79 | 196 | – |
| 5X2.5 | 0.8 | 1.8 | 12.87 | 259 | 180 |
| 5X4 | 1 | 1.8 | 15.22 | 378 | 252 |
| 5X6 | 1 | 1.8 | 16.59 | 495 | 306 |
| 5X10 | 1 | 1.8 | 20.08 | 748 | 431 |
| 5X16 | 1 | 1.8 | 22.91 | 1073 | 571 |
| 5X25 | 1.2 | 1.8 | 24.19 | 1533 | 753 |
| 5X35 | 1.2 | 1.9 | 26.81 | 2030 | 947 |
| 5X50 | 1.4 | 2.1 | 30.95 | 2736 | 1270 |
| 5X70 | 1.4 | 2.2 | 34.98 | 3838 | 1681 |
| 5X95 | 1.6 | 2.4 | 40.47 | 5185 | 2246 |
| 5X120 | 1.6 | 2.5 | 44 | 6400 | 2694 |
| 5X150 | 1.8 | 2.6 | 48.54 | 7868 | 3294 |
| 5X185 | 2 | 2.8 | 54.04 | 9814 | 4091 |
| 5X240 | 2.2 | 3.1 | 61.16 | 12797 | 5275 |
| 5X300 | 2.4 | 3.3 | 67.69 | 15974 | 6510 |
| Conductor | Neutral | Diameters | Approx.Weight | |||||||
| Copper | ||||||||||
| AWG | Stranding | NO. | AWG | Cond. | About | On | About | Over | Total | Total with |
| of | Size | Insl | insulating | neutral | embedded | without | integrated | |||
| wires | ±.030″ | shield | wires | jacket | jacket | jacket | ||||
| ±.050″ | ||||||||||
| 1/0 | 19 | 9 | 14 | 0.362 | 0.86 | 0.94 | 1.068 | 1.168 | 767 | 842 |
| 2/0 | 19 | 11 | 14 | 0.405 | 0.905 | 0.985 | 1.113 | 1.213 | 897 | 975 |
| 3/0 | 19 | 14 | 14 | 0.456 | 0.955 | 1.035 | 1.163 | 1.263 | 1066 | 1145 |
| 4/0 | 19 | 11 | 12 | 0.512 | 1.01 | 1.09 | 1.294 | 1.394 | 1333 | 1434 |
| 250 | 37 | 13 | 12 | 0.558 | 1.07 | 1.19 | 1.352 | 1.452 | 1539 | 1673 |
| 350 | 37 | 12 | 10 | 0.66 | 1.17 | 1.29 | 1.494 | 1.654 | 1987 | 2149 |
| 500 | 37 | 17 | 10 | 0.789 | 1.3 | 1.42 | 1.624 | 1.784 | 2754 | 2924 |
| 750 | 61 | 25 | 10 | 0.968 | 1.49 | 1.61 | 1.814 | 1.974 | 3952 | 4138 |
| 1000 | 61 | 33 | 10 | 1.117 | 1.635 | 1.795 | 1.999 | 2.159 | 5061 | 5251 |
| Conductor | Neutral | Diameters | Approx.Weight | |||||||
| Copper | ||||||||||
| AWG | Stranding | NO. | AWG | Cond. | About | On | About | Over | Total | Total with |
| of | Size | Insl | insulating | neutral | embedded | without | integrated | |||
| wires | ±.030″ | shield | wires | jacket | jacket | jacket | ||||
| ±.050″ | ||||||||||
| 1/0 | 19 | 9 | 14 | 0.362 | 0.86 | 0.94 | 1.068 | 1.168 | 767 | 842 |
| 2/0 | 19 | 11 | 14 | 0.405 | 0.905 | 0.985 | 1.113 | 1.213 | 897 | 975 |
| 3/0 | 19 | 14 | 14 | 0.456 | 0.955 | 1.035 | 1.163 | 1.263 | 1066 | 1145 |
| 4/0 | 19 | 11 | 12 | 0.512 | 1.01 | 1.09 | 1.294 | 1.394 | 1333 | 1434 |
| 250 | 37 | 13 | 12 | 0.558 | 1.07 | 1.19 | 1.352 | 1.452 | 1539 | 1673 |
| 350 | 37 | 12 | 10 | 0.66 | 1.17 | 1.29 | 1.494 | 1.654 | 1987 | 2149 |
| 500 | 37 | 17 | 10 | 0.789 | 1.3 | 1.42 | 1.624 | 1.784 | 2754 | 2924 |
| 750 | 61 | 25 | 10 | 0.968 | 1.49 | 1.61 | 1.814 | 1.974 | 3952 | 4138 |
| 1000 | 61 | 33 | 10 | 1.117 | 1.635 | 1.795 | 1.999 | 2.159 | 5061 | 5251 |
