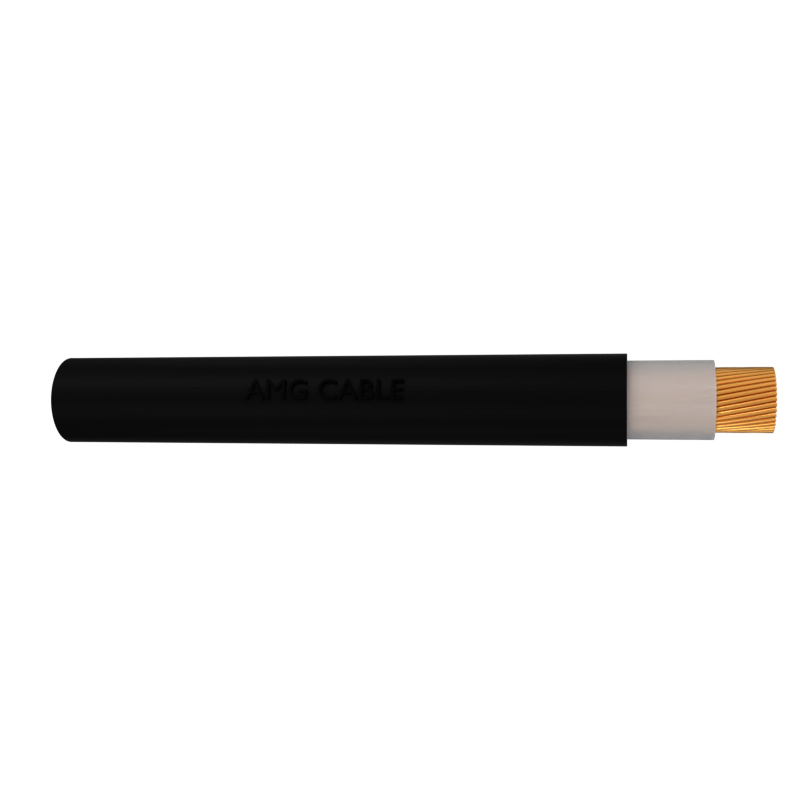

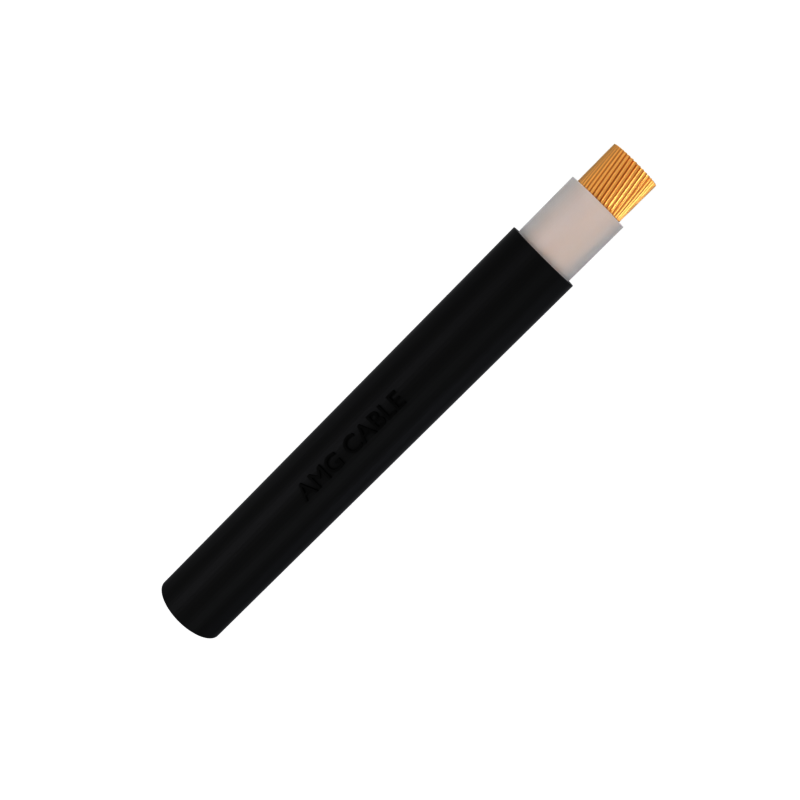

0.6/1KV RV-K PVC Flexible Cable

IEC 60502-1

UNE 21123-2

GET A QUOTE SEND EMAIL NOW

Product Description

The RV-K cable is the ideal choice for low-voltage power distribution, perfect for industrial connections, building installations, and urban grids.

Application

Its exceptional flexibility significantly simplifies the installation process in complex layouts. It can be used outdoors, in ducts, or directly buried without additional protection, and its AD8 water resistance rating allows for permanent submersion up to 5 meters deep.

Applicable Standard

IEC 60502-1 UNE 21123-2

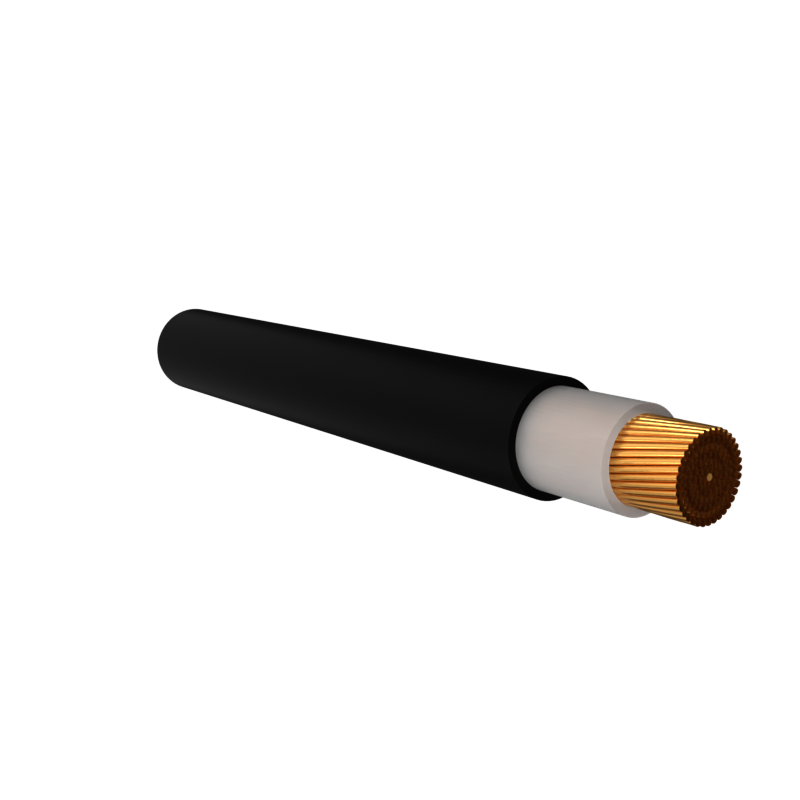

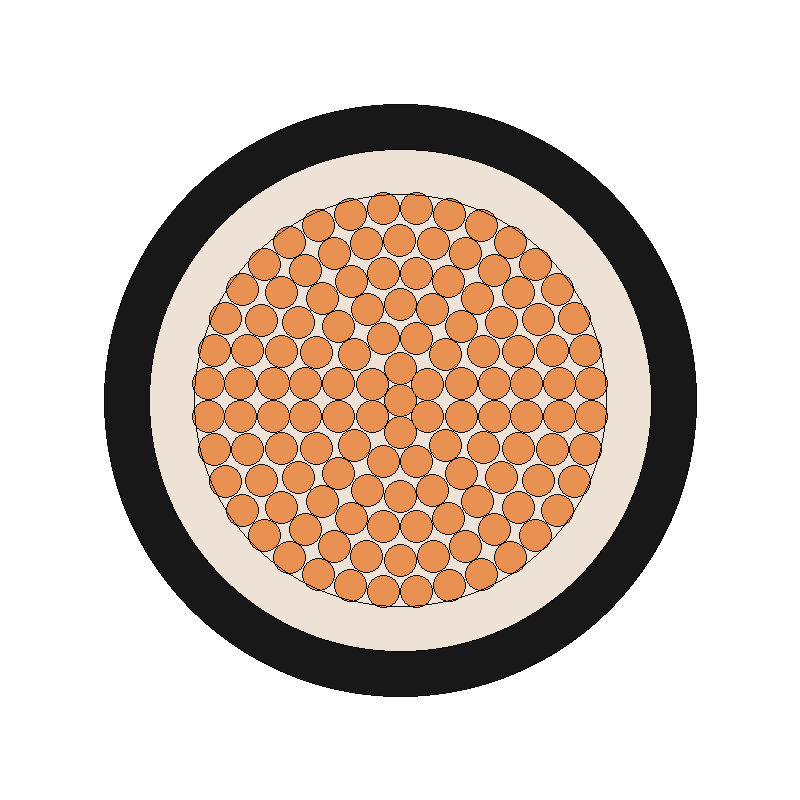

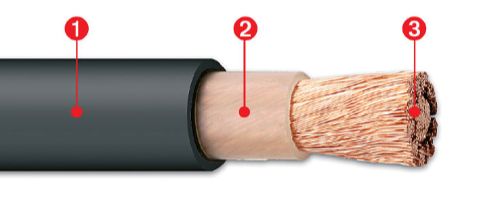

Construction

Conductor:Class 5 flexible copper conductor
Insulation:XLPE (Cross-Linked Polyethylene)
Sheath:PVC (Polyvinyl Chloride)

Technical Parameters

RV-K

No.of Cores	Nom. Cross Sectional Area	Wire No.In Conductor	Nom. Insulation Thickness	Approx.Overall Diameter	Approx.Weight	Max. DC Resistance of Conductor at 20℃
	mm2		mm	mm	kg/km	ohms/km
1	1.5	24	0.7	5.7	45	13.3
1	2.5	40	0.7	6.2	57	7.98
1	4	48	0.7	6.7	74	4.95
1	6	72	0.7	73	95	3.30
1	10	68	0.7	8.3	141	1.91
1	16	116	0.7	9.2	197	1.21
1	25	182	0.9	11.0	293	0.780
1	35	224	0.9	12.0	386	0.554
1	50	324	1	13.6	535	0.386
1	70	304	1.1	15.3	703	0.272
1	95	416	1.1	17.0	925	0.206
1	120	544	1.2	19.2	1138	0.161
1	150	640	1.4	21.0	1428	0.129
1	185	800	1.6	22.9	1742	0.106
1	240	1088	1.7	25.9	2266	0.0801
1	300	1344	1.8	28.8	2833	0.0641
1	400	1760	2.0	34.4	3620	0.0486
1	500	2376	2.2	374	4864	0.0384
2	1.5	24	0.7	8.7	103	13.3
2	2.5	40	0.7	9.5	132	7.98
2	4	48	0.7	10.6	176	4.95
2	6	72	0.7	11.7	227	3.30
2	10	68	0.7	13.6	334	1.91
2	16	116	0.7	15.7	472	1.21
2	25	182	0.9	18.9	709	0.780
2	35	224	0.9	21.4	955	0.554
2	50	324	1.0	23.0	1162	0.386
2	70	304.0	1.1	24.9	1604	0.272
2	95	416	1.1	27.9	2085	0.206
2	120	544	1.2	31.5	2649	0.161
2	150	640	1.4	34.7	3269	0.129
2	185	800	1.6	43.6	3962	0.106
2	240	1088	1.7	16.3	5231	0.0801
3	1.5	24	0.7	9.9	134	13.3
3	2.5	40	0.7	11.0	177	7.98
3	4	48	0.7	12.1	238	4.95
3	6	72	0.7	13.4	311	3.30
3	10	68	0.7	15.5	474	191
3	16	116	0.7	17.5	671	1.21
3	25	182	0.9	21.3	1017	0.780
3	35	224	0.9	23.5	1340	0.554
3	50	324	1.0	270	1867	0.386
3	70	304	1.1	30.8	2484	0.272
3	95	416	1.1	34.3	3246	0.206
3	120	544	1.2	39.2	4064	0.161
3	150	640	1.4	43.1	5092	0.129
3	185	800	1.6	473	6233	0.106
3	240	1088	1.7	53.8	8133	0.0801
4	1.5	24	0.7	10.7	157	13.3
4	2.5	40	0.7	11.9	210	7.98
4	4	48	0.7	13.1	287	4.95
4	6	72	0.7	14.5	377	3.30
4	10	68.0	0.7	170	584	1.91
4	16	116	0.7	19.1	834	1.21
4	25	182	0.9	23.4	1269	0.780
4	35	224	0.9	25.9	1683	0.554
4	50	324	1	30.0	2372	0.386
4	70	304	1.1	34.3	3157	0.272
4	95	416	1.1	38.1	4134	0.206
4	120	544	1.2	43.9	5188	0.161
4	150	640	1.4	47.9	6479	0.129
4	185	800	1.6	52.8	7964	0.106
4	240	1088.0	1.7	60.1	10388	0.0801
5	1.5	24	0.7	11.5	183	13.3
5	2.5	40	0.7	12.8	247	798
5	4	48	0.7	14.2	338	4.95
5	6	72	0.7	15.8	448	3.30
5	10	68	0.7	18.5	697	191
5	16	116	0.7	20.9	1003	1.21
5	25	182	0.9	25.7	1531	0.780
5	35	224	0.9	28.5	2037	0.554
5	50	324	1	33.2	2893	0.386
5	70	304	1.1	38.0	3851	0.272
5	95	416	1.1	42.5	5071	0.206
5	120	544	1.2	48.6	6325	0.161
5	150	640	1.4	53.3	7936	0.129
