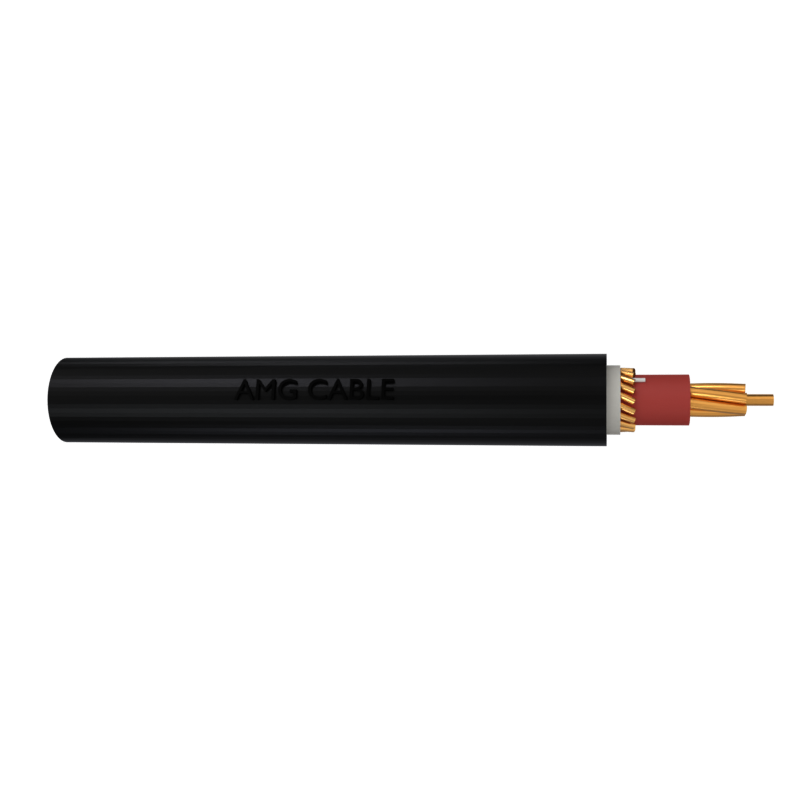

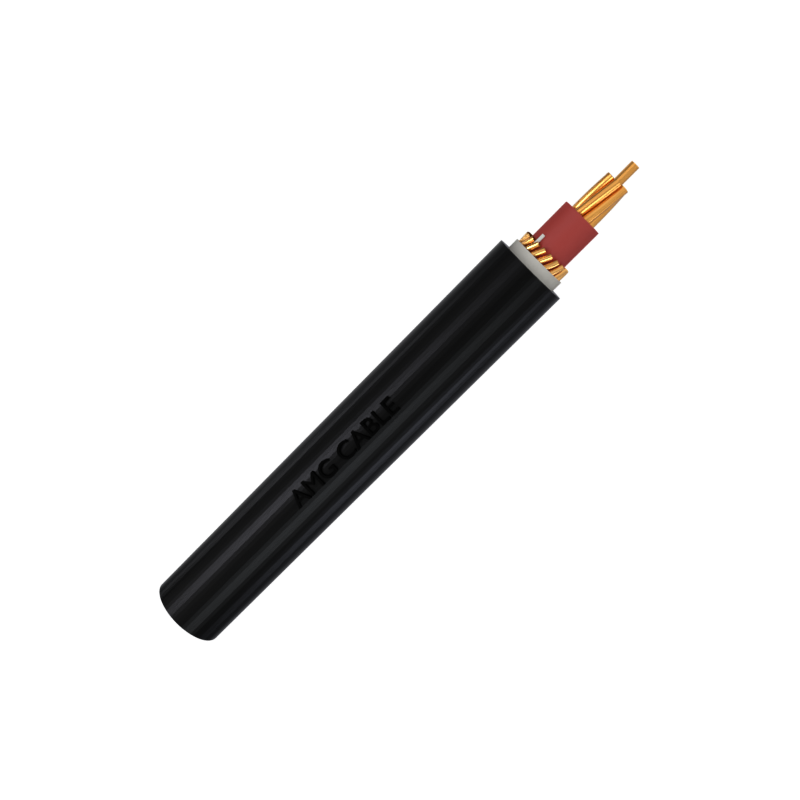

Product Description
Circular stranded hard-drawn copper phase conductor, XLPE insulated with concentrically arranged bare earth conductors. Polyethylene sheathed 600/1000 V house service connection cable. Nylon ripcord laid under sheath.
Application
For use in electricity supply to houses, 600V Strung in air from pole top distribution box to houses pre-paid electricity meter / main circuit breaker.
Applicable Standard
SANS 1507 -6

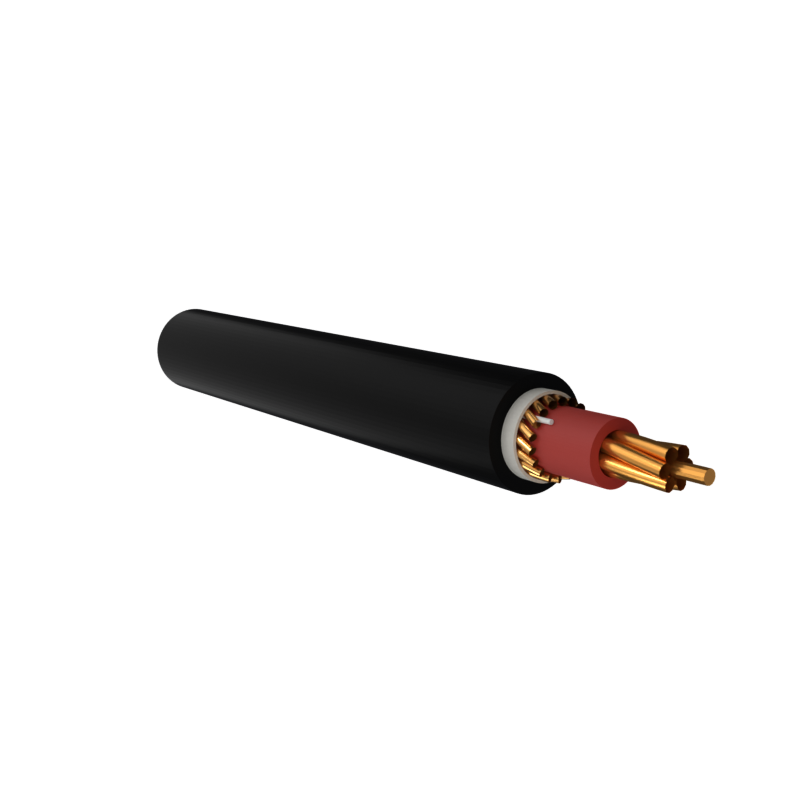

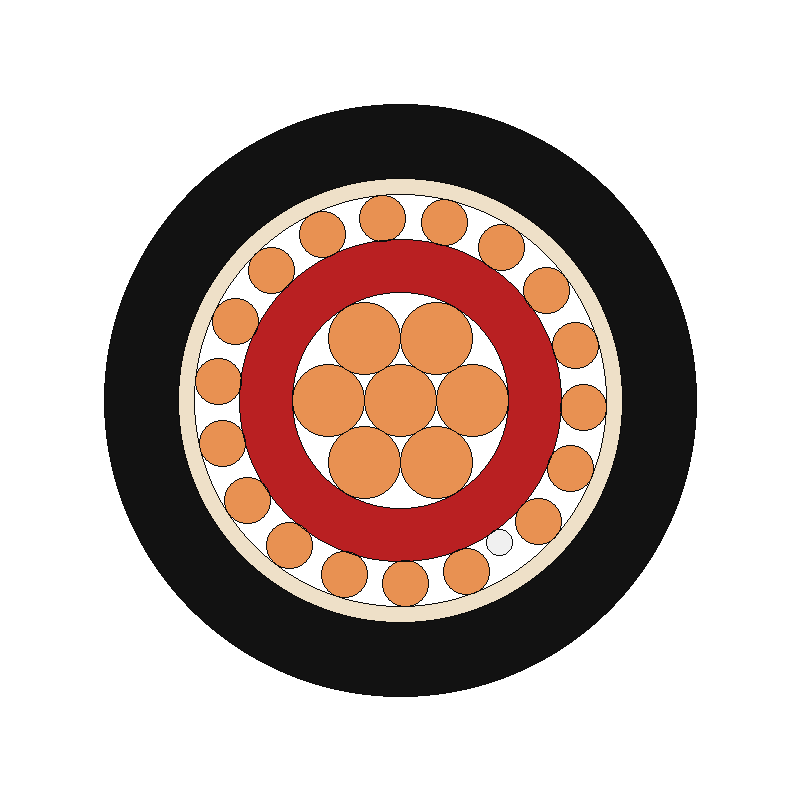

Construction
- 1. Phase Conductor:Stranded Copper Conductor
- 2. Insulation:XLPE
- 3. Earth Conductor:Solid Copper Wire
- 4. Ripcord:Nylon
- 5. Binder Tape:Polyester Tape
- 6. Outer Sheath:PE (Polyethylene)
Technical Parameter
AIRDAC CNE CABLE
| Size | Phase Conductor | XLPE Insulation | Earth Conductor | PE Sheath | Approx. Weight |
||||
| Structure | O.D | Thickness | O.D | Structure | O.D | Thickness | O.D | ||
| mm2 | No./mm | mm | mm | mm | No./mm | mm | mm | mm | kg/km |
| 4 | 7/0.92 | 2.76 | 1.0 | 4.76 | 8/0.85 | 6.46 | 1.4 | 9.41 | 131 |
| 10 | 7/1.35 | 4.05 | 1.0 | 6.05 | 18/0.85 | 775 | 1.4 | 10.70 | 240 |
