Product Description
Airdac SNE (Separate Neutral Earth) cables manufactured to SANS 1507-6 are specialized service connection cables widely used in South Africa and neighboring regions. They are specifically designed for overhead power distribution from a utility pole to individual residential or commercial dwellings.
Application
Airdac SNE cable, the phase core is made of grade 2 high quality HD Cu andi nsulated with XLPE, at the same time, XLPE insulated neutral and bare earthare surrounded by the phase core. The voltage is not exceed 1kV. And the outersheath is PE. Nylon ripcord is tucked beneath the sheath.
Applicable Standard
SANS 1507 -6

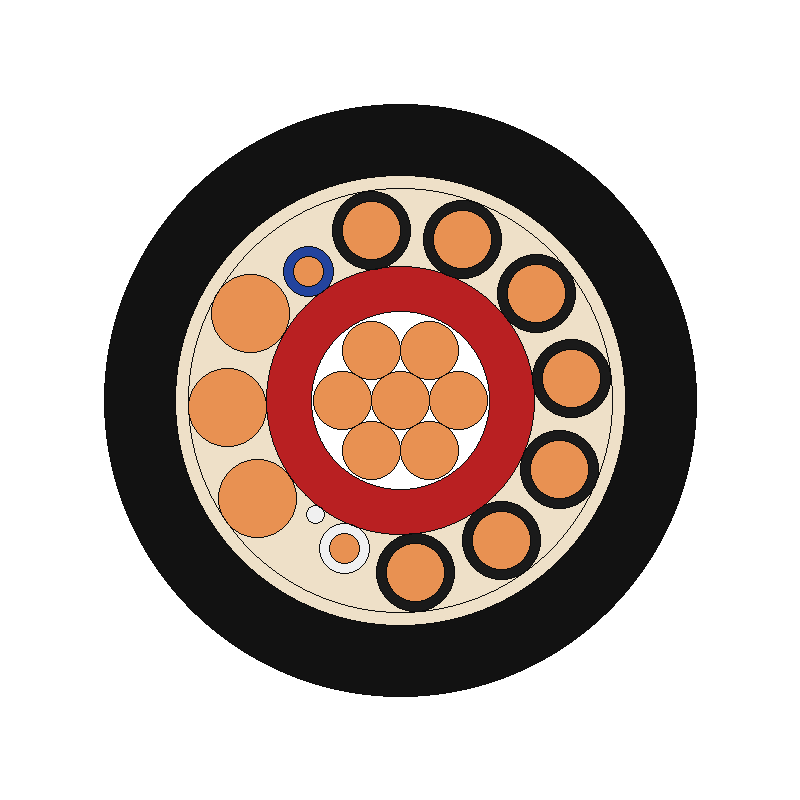

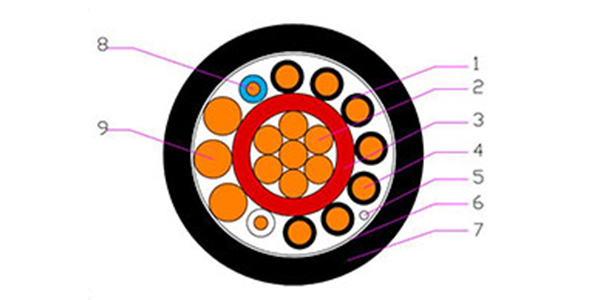

Construction
- 1. Insulation:PE (Polyethylene)
- 2. Phase Conductor:Stranded Copper Conductor
- 3. Insulation:XLPE
- 4. Neutral Conductor:Solid Copper Wire
- 5. Ripcord:Nylon
- 6. Binder Tape:Polyester Tape
- 7. Outer Sheath:PE (Polyethylene)
- 8. Pilot Core:PE Insulated Copper Wire
- 9. Earth Conductor:Solid Copper Wire
Technical Parameter
AIRDAC SNE CABLE
| Size | Phase Conductor | XLPE Insulation | Earth Conductor | Neutral Conductor | Pilot Core | PE Sheath | Approx. Weight |
|||
| Structure | O.D | Thickness | O.D | Structure | Structure | Structure | Thickness | OD | ||
| mm2 | No./mm | mm | mm | mm | No./mm | No./mm | No./mm | mm | mm | kg/km |
| 4 | 7/0.92 | 2.76 | 1.0 | 4.76 | 3/105 | 7/0.86 | 2/1.13 | 1.4 | 10.0 | 168 |
| 10 | 7/1.35 | 4.05 | 1.0 | 6.05 | 3/1.78 | 7/1.33 | 2/1.13 | 1.6 | 12.7 | 334 |
| 16 | 7/1.70 | 5.10 | 1.0 | 710 | 3/2.20 | 7/1.76 | 2/1.13 | 1.6 | 14.5 | 502 |
