Aluminum Conductor Steel Reinforced(ACSR Conductor)

Selecting the right ACSR (Aluminum Conductor Steel Reinforced) conductor depends on several technical and environmental factors:
Current Carrying Capacity (Ampacity): Calculate maximum load current to choose the required aluminum cross-sectional area.
Mechanical Strength & Span Length: Match the steel core ratio (e.g., 6/1, 26/7, 54/7) to the mechanical tension and tower span requirements.
Operating Temperature: Evaluate maximum continuous operating thermal limits (typically 75°C to 90°C) to prevent excessive sag.
Environmental Exposure: Choose greased cores or aluminum-clad steel (ACSR/AW) for coastal or high-corrosion zones.
International Standards: Ensure compliance with global specs like ASTM B232, IEC 61089, or BS EN 50182.

ACSR is the preferred choice for overhead lines due to its exceptional combination of properties. It merges the lightweight and high electrical conductivity of aluminum with the high tensile strength and ruggedness of a steel core. This unique design enables the conductor to handle higher line tensions, significantly reduce sag, and achieve much longer span lengths than most other conductors. Its favorable strength-to-weight ratio ensures dependable performance under adverse weather, making it economical and reliable for a wide range of transmission and distribution applications.

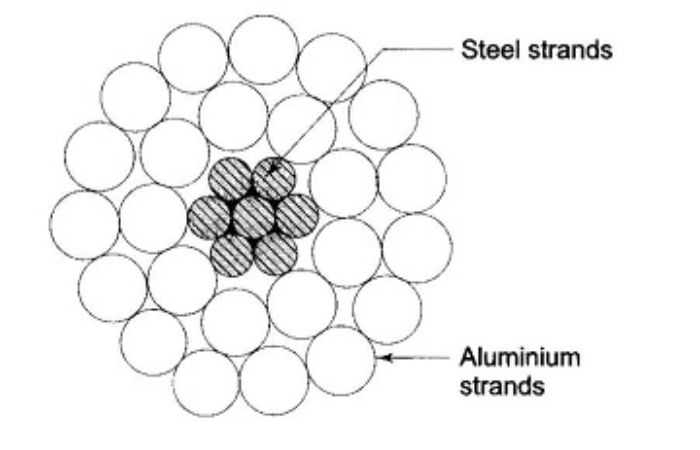

The primary difference is in their construction. ACSR (Aluminum Conductor Steel Reinforced) consists of aluminum strands surrounding a central steel core for superior mechanical strength. AAAC (All Aluminum Alloy Conductor) is made entirely of high-strength aluminum alloy strands. Consequently, ACSR has higher tensile strength and is ideal for long-span, high-tension applications like river crossings. AAAC is lighter and offers better corrosion resistance, making it more suitable for coastal or humid environments. AAAC also has slightly better conductivity, but ACSR is generally preferred when maximum mechanical strength is required.

Under standard operating conditions, the expected service lifespan of an ACSR conductor is typically 30 to 50 years.
Key factors influencing conductor longevity include:
Environmental Conditions: Coastal or industrial atmospheric pollution can accelerate galvanic corrosion between aluminum and steel cores.
Operating Temperatures: Continuous overheating beyond design thresholds degrades mechanical properties.
Vibration Management: Using appropriate stockbridge dampers prevents wind-induced fatigue damage over time.

The standard maximum continuous operating temperature for conventional ACSR conductors is 75°C (167°F) according to IEC and IEEE standards, though emergency operating limits may allow up to 90°C (194°F) for brief periods.
Exceeding these temperature limits causes thermal annealing (softening) of the hard-drawn aluminum wires, permanently reducing tensile strength and creating dangerous line sag. For applications requiring continuous operation above 100°C, high-temperature low-sag (HTLS) conductors are recommended.
