Product Description
CAAI-S cable is constructed with 1350 or 6201 aluminum alloy conductors and insulated with XLPE. It is designed for overhead power transmission and distribution systems up to 0.6/1 kV, typically installed on power poles or building exteriors.
Application
CAAI-S cable a new type of aerial cable designed for overhead power transmission lines. It enhances the safety and reliability of power distribution networks.
Applicable Standard
NTP 370.254, ICEA S-76-474

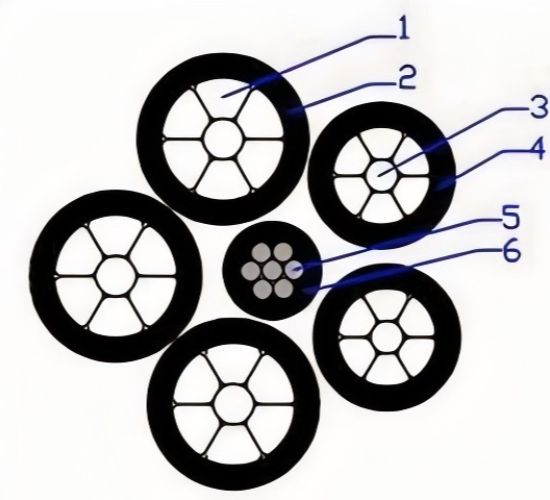

Construction
In general, the CAAI-S Cable is constructed in the following structure:
- Conductor:Class 2 Aluminium 1350.
- Insulation: XLPE
- Public lighting: Aluminium 1350 with XLPE Insulation
- Messenger: Galvanized stranded steel wire with XLPE
Technical Parameters
| Name | No. Of Cores | Phase Conductor Cross Section(mm2) | Public Lighting | Messenger Conductor Dia(mm) | Nominal OD(mm) |
| CAAI-S 2*16+1*16mm2+P3.2 | 2 | 16 | 1*16mm2 | 3.2 | 16.6 |
| CAAI-S 2*16+2*16mm2+P3.2 | 2 | 16 | 2*16mm2 | 3.2 | 18.8 |
| CAAI-S 2*25+1*16mm2+P3.2 | 2 | 25 | 1*16mm2 | 3.2 | 20.5 |
| CAAI-S 2*25+2*16mm2+P3.2 | 2 | 25 | 2*16mm2 | 3.2 | 21.3 |
| CAAI-S 2*35+1*16mm2+P3.2 | 2 | 35 | 1*16mm2 | 3.2 | 23.0 |
| CAAI-S 3*16+1*16mm2+P3.2 | 3 | 16 | 1*16mm2 | 3,2 | 18.7 |
| CAAI-S 3*16+1*16mm2+P3.2 | 3 | 16 | 1*16mm2 | 3.6 | 19.0 |
| CAAI-S 3*16+2*16mm2+P3.6 | 3 | 16 | 1*16mm2 | 3.6 | 22.3 |
| CAAI-S 2*25+2*16mm2+P3.2 | 3 | 25 | 1*16mm2 | 3.2 | 21.3 |
| CAAI-S 3*25+2*16mm2+P3.2 | 3 | 25 | 2*16mm2 | 3.2 | 23.3 |
| CAAI-S 3*35+1*16mm2+P3.2 | 3 | 35 | 1*16mm2 | 3.2 | 23.0 |
| CAAI-S 3*35+2*25mm2+P3.6 | 3 | 35 | 2*25mm2 | 3.6 | 26.1 |
| CAAI-S 3*50+1*16mm2+P4.8 | 3 | 50 | 1*16mm2 | 4.8 | 26.4 |
| CAAI-S 3*50+2*16mm2+P3.2 | 3 | 50 | 2*16mm2 | 3.2 | 27.6 |
| CAAI-S 3*50+2*25mm2+P3.6 | 3 | 50 | 2*25mm2 | 3.6 | 28.9 |
| CAAI-S 3*70+1*25mm2+P3.6 | 3 | 70 | 1*25mm2 | 3.6 | 30.0 |
| CAAI-S 3*70+2*16mm2+P6.35 | 3 | 70 | 2*16mm2 | 6.35 | 30.4 |
