Galvanized Steel Conductor/Guy Wire/GSW

Galvanized steel is considered a poor electrical conductor compared to copper or aluminum. It offers an electrical conductivity of only about 8% to 12% IACS (International Annealed Copper Standard) and exhibits high electrical resistance.
In overhead transmission lines, galvanized steel wire (GSW) is rarely used for primary power transmission. Instead, its electrical role is usually limited to overhead ground wires (static wires), where it safely channels lightning strikes and surge currents into the earth. Its primary value in utility networks lies in its exceptional mechanical tensile strength and corrosion resistance rather than electrical conductivity.

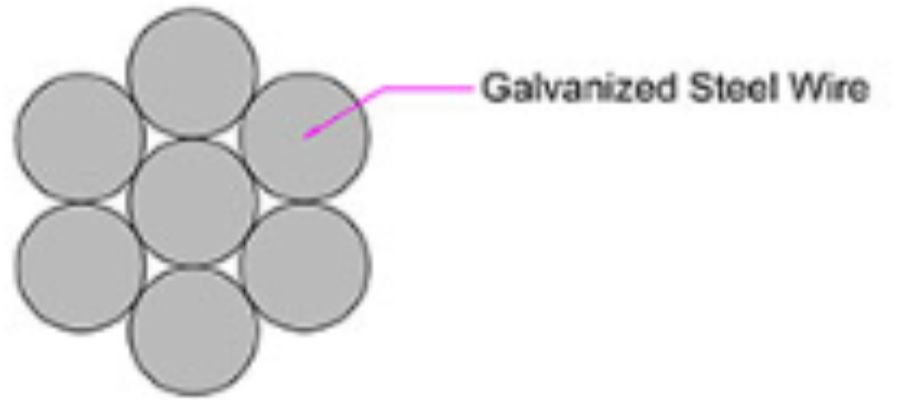

A galvanized steel guy wire (also known as a stay wire) is a high-tensile stranded steel cable coated with a protective layer of zinc, engineered to provide structural stability and mechanical support to tall vertical structures such as utility poles, transmission towers, telecom masts, and wind turbines.
Key purposes and operational benefits include:
Tension & Load Balancing: It offsets heavy lateral strain and dynamic loads caused by angled line dead-ends, high wind forces, and ice accumulation.
Preventing Structural Failure: Holds support poles and towers rigid and upright, preventing tipping, bending, or structural collapse under extreme weather conditions.
Cost Efficiency: Using tensioned guy wires enables power utilities to deploy lighter, more economical support poles instead of relying on massive, expensive self-supporting foundations.
Corrosion Protection: The hot-dip galvanizing (zinc coating) protects the high-strength steel core from rust and atmospheric degradation, ensuring a long operational lifespan outdoors.

Cutting high-tensile galvanized steel wire safely requires selecting the proper tool based on the wire gauge and diameter:
1.Thin Gauges (<3 mm): Use heavy-duty side-cutting pliers, lineman’s pliers, or specialized wire cutters.
2.Medium Gauges (3 mm to 6 mm): Use long-handled bolt cutters or high-tensile wire strand cutters for maximum leverage.
3.Heavy Strands & Guy Wires (>6 mm): Use an angle grinder equipped with a thin metal-cutting wheel or a hydraulic cable cutter for clean cuts without strand fraying.
Safety Tip: Always wear heavy leather work gloves and safety goggles to protect against wire recoil and sharp metal burrs.

Galvanized steel wire is widely used across power utilities, industrial construction, and agriculture due to its high tensile strength and zinc rust protection. Common applications include:
Power Transmission & Utilities: Used as guy/stay wire for pole anchoring, overhead static ground wire (GSW) for lightning protection, and the central strength core inside ACSR conductors.
Cable Armoring: Applied as steel wire armor (SWA) around heavy power and submarine cables for mechanical crush protection.
Structural & Fencing Applications: Utilized in high-tensile agricultural fencing, mesh gabions, suspension cables, and tie wire.

Welding galvanized steel wire requires strict safety precautions because heating the zinc coating produces toxic zinc oxide fumes (“metal fume fever”).
Recommended Welding Procedure:
1.Grind Off Coating: Mechanically strip the zinc galvanizing layer from the weld joint area using an angle grinder down to raw steel.
2.Welding Method: Use MIG (GMAW), TIG, or resistance spot welding. Perform welding in a well-ventilated area or wear a P100/N95 respirator.
3.Anti-Corrosion Touch-Up: Once the weld cools, clean off slag and apply a high-zinc cold galvanizing spray paint to restore weather protection at the joint.
