Product Description

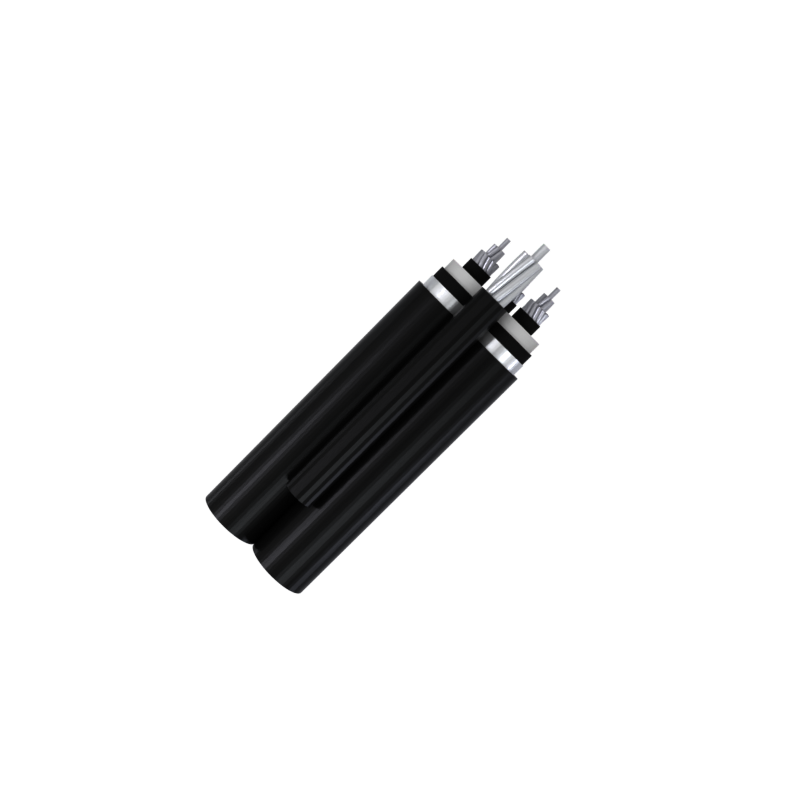

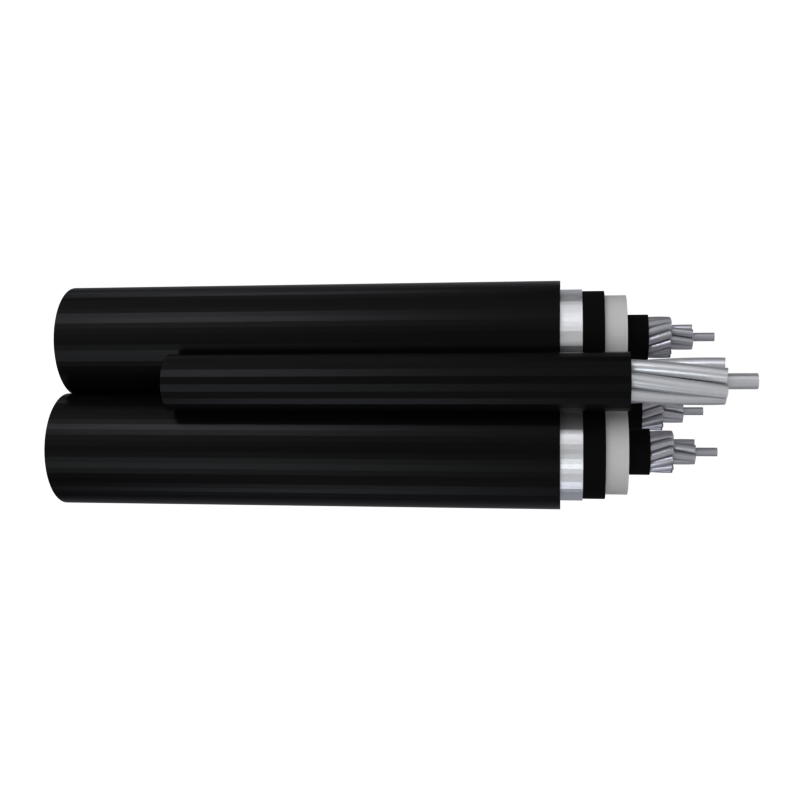

French standard medium-voltage overhead lines are high-performance XLPE-insulated aluminum cables engineered with NF C 33-226 technology. Featuring an aluminum tape screen and a high-strength polyethylene (PE) sheath, they provide exceptional weather resistance and safety, serving as the core product for modern urban and forested overhead power grids.
Application
These power cables are the new generation of cables forpublic medium voltage distribution–HTA. Used for direct installation on the ground, water, outdoors, indoors and in cable ducts. The cable is made of 1 or 3 bunched cores. The longitudinal seal is provided by a swelling powder
Applicable Standard
IEC 60228 Conductors of insulated cables
NF C33-226 Insulated cables and their accessories for power networks Cables with rated voltages from 6/10(12) kV to 18/30(36) kV, insulated with fixed-gradient cross-linked polyethylene, for distribution networks
IEC 60502-2 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) – Part 2:Cables for rated voltages of 6kV(Um=7.2kV) and 30 kV(Um=36kV)
Construction

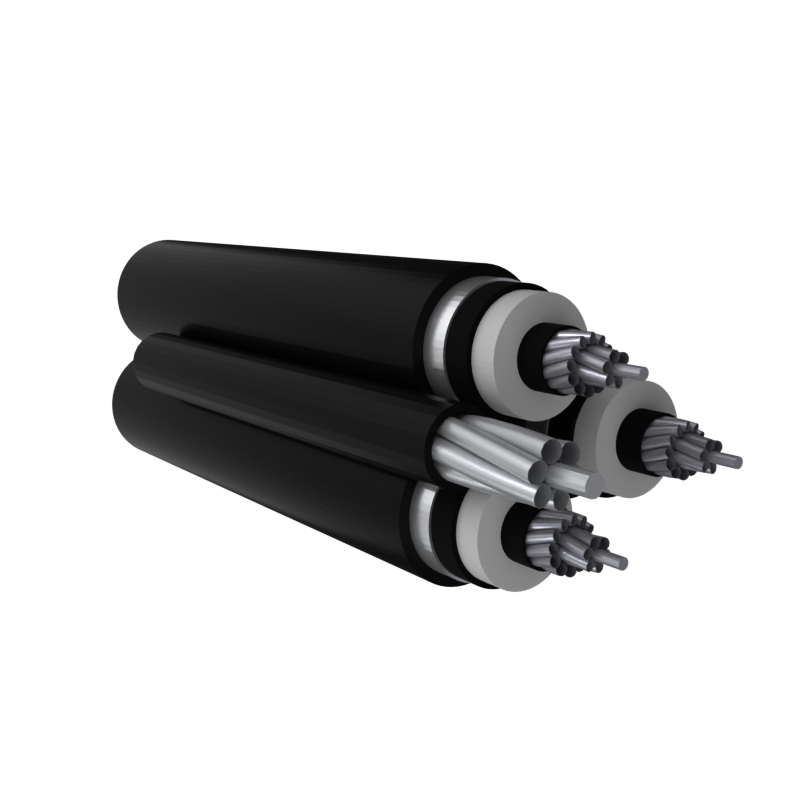

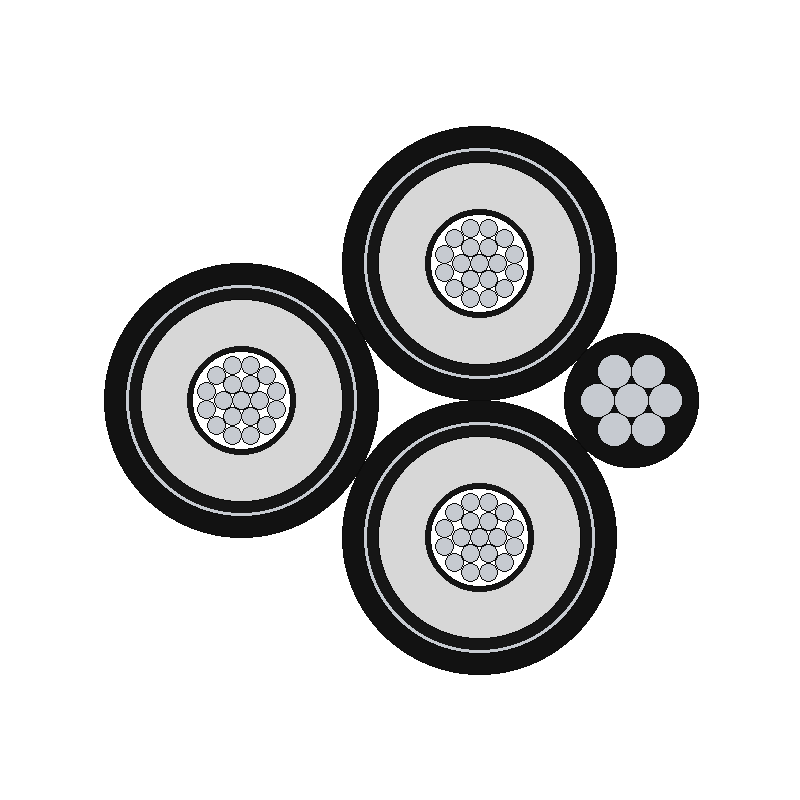

- Conductor:Aluminum or copper, class 2,circular compacted conductors
- Conductor screen: Non-metallic,semi-conducting compound
- Insulation:Cross-linked polyethylene(XLPE)
- Insulation screen:Non-metallic,semi-conducting compound,extruded strippable grooved elastomer
- Longitudinal water tightness: Swelling powder
- Metallic screen: Aluminium plastic tape (AL/PET)
- Outer sheath: Polyethylene (PE)
Technical Parameters
| No.of Cores/Nominal cross section | Phase | Messenger | ||||
|
Min. No.of Wire |
Nominal insulation thickness | Nominal AL/PET tape Thickness | Nominal
Sheath Thickness |
Conductor | Nominal Insulation Thickness | |
| mm² | No. | mm | mm | mm | No./mm | mm |
| 3×1×50+1×50 | 6 | 3.4 | 0.20 | 2.0 | 7/3.0 | 1.2 |
| 3×1×70+1×50 | 12 | 3.4 | 0.20 | 2.0 | 7/3.0 | 1.2 |
| 3×1×95+1×50 | 15 | 3.4 | 0.20 | 2.0 | 7/3.0 | 1.2 |
| 3×1×120+1×50 | 15 | 3.4 | 0.20 | 2.0 | 7/3.0 | 1.2 |
| 3×1×150+1×50 | 15 | 3.4 | 0.20 | 2.0 | 7/3.0 | 1.2 |
| 3×1×185+1×50 | 30 | 3.4 | 0.20 | 2.0 | 7/3.0 | 1.2 |
| 3×1×240+1×50 | 30 | 3.4 | 0.20 | 2.0 | 7/3.0 | 1.2 |
| 3×1×30O+1×50 | 30 | 3.4 | 0.20 | 2.0 | 7/3.0 | 1.2 |
| 3×1×400+1×50 | 53 | 3.4 | 0.20 | 2.2 | 7/3.0 | 1.2 |
| 3×1×500+1×50 | 53 | 3.4 | 0.20 | 2.2 | 7/3.0 | 1.2 |
| 3×1×630+1×50 | 53 | 3.4 | 0.20 | 2.4 | 7/3.0 | 1.2 |
| No.of Cores/Nominal cross section | Phase | Messenger | ||||
| Min. No.of Wire |
Nominal insulation thickness | Nominal AL/PET tape Thickness | Nominal
Sheath Thickness |
Conductor | Nominal Insulation Thickness | |
| mm² | No. | mm | mm | mm | No./mm | mm |
| 3×1×50+1×50 | 6 | 4.5 | 0.20 | 2.0 | 7/3.0 | 1.2 |
| 3×1×70+1×50 | 12 | 4.5 | 0.20 | 2.0 | 7/3.0 | 1.2 |
| 3×1×95+1×50 | 15 | 4.5 | 0.20 | 2.0 | 7/3.0 | 1.2 |
| 3×1×120+1×50 | 15 | 4.5 | 0.20 | 2.0 | 7/3.0 | 1.2 |
| 3×1×150+1×50 | 15 | 4.5 | 0.20 | 2.0 | 7/3.0 | 1.2 |
| 3×1×185+1×50 | 30 | 4.5 | 0.20 | 2.0 | 7/3.0 | 1.2 |
| 3×1×240+1×50 | 30 | 4.5 | 0.20 | 2.1 | 7/3.0 | 1.2 |
| 3×1×300+1×50 | 30 | 4.5 | 0.20 | 2.1 | 7/3.0 | 1.2 |
| 3×1×400+1×50 | 53 | 4.5 | 0.20 | 2.2 | 7/3.0 | 1.2 |
| 3×1×500+1×50 | 53 | 4.5 | 0.20 | 2.3 | 7/3.0 | 1.2 |
| 3×1×630+1×50 | 53 | 4.5 | 0.20 | 2.4 | 7/3.0 | 1.2 |
| No.of Cores/Nominal cross section | Phase | Messenger | ||||
| Min.
No.of Wire |
Nominal insulation thickness | Nominal AL/PET tape Thickness | Nominal
Sheath Thickness |
Conductor | Nominal Insulation Thickness | |
| mm² | No. | mm | mm | mm | No./mm | mm |
| 3×1×50+1×50 | 6 | 5.5 | 0.20 | 2.0 | 7/3.0 | 1.2 |
| 3×1×70+1×50 | 12 | 5.5 | 0.20 | 2.0 | 7/3.0 | 1.2 |
| 3×1×95+1×50 | 15 | 5.5 | 0.20 | 2.0 | 7/3.0 | 1.2 |
| 3×1×12O+1×50 | 15 | 5.5 | 0.20 | 2.0 | 7/3.0 | 1.2 |
| 3×1×150+1×50 | 15 | 5.5 | 0.20 | 2.0 | 7/3.0 | 1.2 |
| 3×1×185+1×50 | 30 | 5.5 | 0.20 | 2.0 | 7/3.0 | 1.2 |
| 3×1×240+1×50 | 30 | 5.5 | 0.20 | 2.1 | 7/3.0 | 1.2 |
| 3×1×300+1×50 | 30 | 5.5 | 0.20 | 2.2 | 7/3.0 | 1.2 |
| 3×1×400+1×50 | 53 | 5.5 | 0.20 | 2.3 | 7/3.0 | 1.2 |
| 3×1×500+1×50 | 53 | 5.5 | 0.20 | 2.4 | 7/3.0 | 1.2 |
| 3×1×630+1×50 | 53 | 5.5 | 0.20 | 2.5 | 7/3.0 | 1.2 |
| No.of Cores/Nominal cross section | Phase | Messenger | ||||
| Min.
No.of Wire |
Nominal insulation thickness | Nominal AL/PET tape Thickness | Nominal
Sheath Thickness |
Conductor | Nominal Insulation Thickness | |
| mm² | No. | mm | mm | mm | No./mm | mm |
| 3×1×50+1×50 | 6 | 8.0 | 0.20 | 2.0 | 7/3.0 | 1.2 |
| 3×1×70+1×50 | 12 | 8.0 | 0.20 | 2.0 | 7/3.0 | 1.2 |
| 3×1×95+1×50 | 15 | 8.0 | 0.20 | 2.1 | 7/3.0 | 1.2 |
| 3×1×120+1×50 | 15 | 8.0 | 0.20 | 2.1 | 7/3.0 | 1.2 |
| 3×1×150+1×50 | 15 | 8.0 | 0.20 | 2.2 | 7/3.0 | 1.2 |
| 3×1×185+1×50 | 30 | 8.0 | 0.20 | 2.2 | 7/3.0 | 1.2 |
| 3×1×240+1×50 | 30 | 8.0 | 0.20 | 2.3 | 7/3.0 | 1.2 |
| 3×1×300+1×50 | 30 | 8.0 | 0.20 | 2.4 | 7/3.0 | 1.2 |
| 3×1×400+1×50 | 53 | 8.0 | 0.20 | 2.5 | 7/3.0 | 1.2 |
| 3×1×500+1×50 | 53 | 8.0 | 0.20 | 2.6 | 7/3.0 | 1.2 |
| 3×1×630+1×50 | 53 | 8.0 | 0.20 | 2.7 | 7/3.0 | 1.2 |
