Product Description
ASTM Service Drop Cable is an overhead aluminum cable assembly featuring XLPE-insulated phase conductors twisted around a bare neutral messenger, designed to provide safe and weather-resistant power delivery from utility poles to residential or commercial buildings.
Application
The Service Drop Cable is designed for overhead service applications such as street lighting, outdoor lighting, and temporary power for construction sites.This cable is suitable for use as a service drop or secondary distribution cable for systems with rated voltages of 0.6/1 kV and below.
Applicable Standard
ICEA S-76-474: Standard for Neutral Supported Power Cable Assemblies with Weather-resistant Extruded Insulation Rated 600 Volts
ASTM B 231: Standard Specification for Concentric Lay Stranded Aluminum 1350 Conductors (AAC)
ASTM B 232: Standard Specification for Concentric Lay Stranded Aluminum Conductors, Coated Steel Reinforced (ACSR)
ASTM B 399: Standard Specification for Concentric Lay Stranded Aluminum-alloy 6201-T81 Conductors (AAAC)
Specification
- Rated voltage 0.6/1KV & below
- Extruded weather-resistant insulation
- Max. conductor working temperature 90℃ (XLPE insulation) or 70℃ (PE insulation)
- Bare or insulated neutral core available

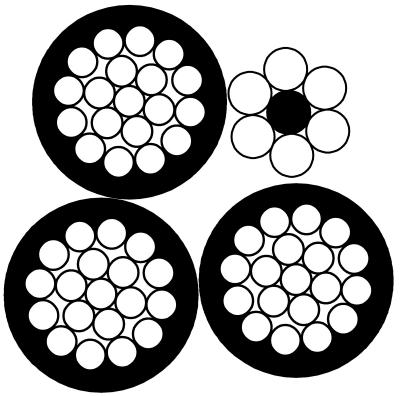

Construction
- 1350 aluminum phase conductor
- AAC, ACSR or AAAC neutral conductor
- XLPE or PE insulation
Technical Parameters
| Code | Size | Phase Core | Neutral Core | Approx. Weight | ||||
| Phase | Neutral | Wire No. | Insulation Thick. | Wire No. | Wire Dia. | Rated Tensile Strength | ||
| AWG/MCM | / | mm | / | mm | kN | kg/km | ||
| Clydesdale | 4 | 4 | 1 | 1.14 | 7 | 1.96 | 3.91 | 299 |
| Pinto | 4 | 4 | 7 | 1.14 | 7 | 1.96 | 3.91 | 306 |
| Mustang | 2 | 2 | 7 | 1.14 | 7 | 2.47 | 5.99 | 461 |
| Criollo | 1/0 | 1/0 | 19 | 1.52 | 7 | 3.12 | 8.84 | 744 |
| Percheron | 2/0 | 2/0 | 19 | 1.52 | 7 | 3.50 | 11.1 | 914 |
| Hanoverian | 3/0 | 3/0 | 19 | 1.52 | 19 | 2.39 | 14.7 | 1127 |
| Oldenburg | 4/0 | 4/0 | 19 | 1.52 | 19 | 2.68 | 17.8 | 1385 |
| Lippizaner | 336.4 | 336.4 | 19 | 2.03 | 19 | 3.38 | 27.4 | 2236 |
| Code | Size | Phase Core | Neutral Core | Approx. Weight | ||||
| Phase | Neutral | Wire No. | Insulation Thick. | Wire No.
(Al.+St.) |
Wire Dia. | Rated Tensile Strength | ||
| AWG/MCM | / | mm | / | mm | kN | kg/km | ||
| Morochuca | 6 | 6 | 1 | 1.14 | 6+1 | 1.68 | 5.24 | 221 |
| Chola | 6 | 6 | 7 | 1.14 | 6+1 | 1.68 | 5.24 | 227 |
| Morgan | 4 | 4 | 1 | 1.14 | 6+1 | 2.12 | 8.32 | 331 |
| Hackney | 4 | 4 | 7 | 1.14 | 6+1 | 2.12 | 8.32 | 338 |
| Palomino | 2 | 2 | 7 | 1.14 | 6+1 | 2.67 | 12.7 | 511 |
| Costena | 1/0 | 1/0 | 19 | 1.52 | 6+1 | 3.37 | 19.3 | 824 |
| Grullo | 2/0 | 2/0 | 19 | 1.52 | 6+1 | 3.78 | 23.6 | 1015 |
| Suffolk | 3/0 | 3/0 | 19 | 1.52 | 6+1 | 4.25 | 29.4 | 1254 |
| Appaloosa | 4/0 | 4/0 | 19 | 1.52 | 6+1 | 4.77 | 37.1 | 1554 |
| Bronco | 336.4 | 336.4 | 19 | 2.03 | 18+1 | 3.47 | 38.2 | 2321 |
| Gelding | 336.4 | 4/0 | 19 | 2.03 | 6+1 | 4.77 | 37.1 | 2221 |
| Code | Size | Phase Core | Neutral Core | Approx. Weight | ||||
| Phase | Neutral | Wire No. | Insulation Thick. | Wire No. | Wire Dia. | Rated Tensile Strength | ||
| AWG/MCM | / | mm | / | mm | kN | kg/km | ||
| Bay | 6 | 6 | 1 | 1.14 | 7 | 1.68 | 4.92 | 207 |
| French Coach | 6 | 6 | 7 | 1.14 | 7 | 1.68 | 4.92 | 213 |
| German Coach | 4 | 4 | 1 | 1.14 | 7 | 2.12 | 7.83 | 309 |
| Arabian | 4 | 4 | 7 | 1.14 | 7 | 2.12 | 7.83 | 316 |
| Belgian | 2 | 2 | 7 | 1.14 | 7 | 2.67 | 12.4 | 476 |
| Shetland | 1/0 | 1/0 | 19 | 1.52 | 7 | 3.37 | 18.9 | 768 |
| Thoroughbred | 2/0 | 2/0 | 19 | 1.52 | 7 | 3.78 | 23.8 | 945 |
| Trotter | 3/0 | 3/0 | 19 | 1.52 | 7 | 4.25 | 30.0 | 1166 |
| Walking | 4/0 | 4/0 | 19 | 1.52 | 7 | 4.77 | 37.8 | 1442 |
