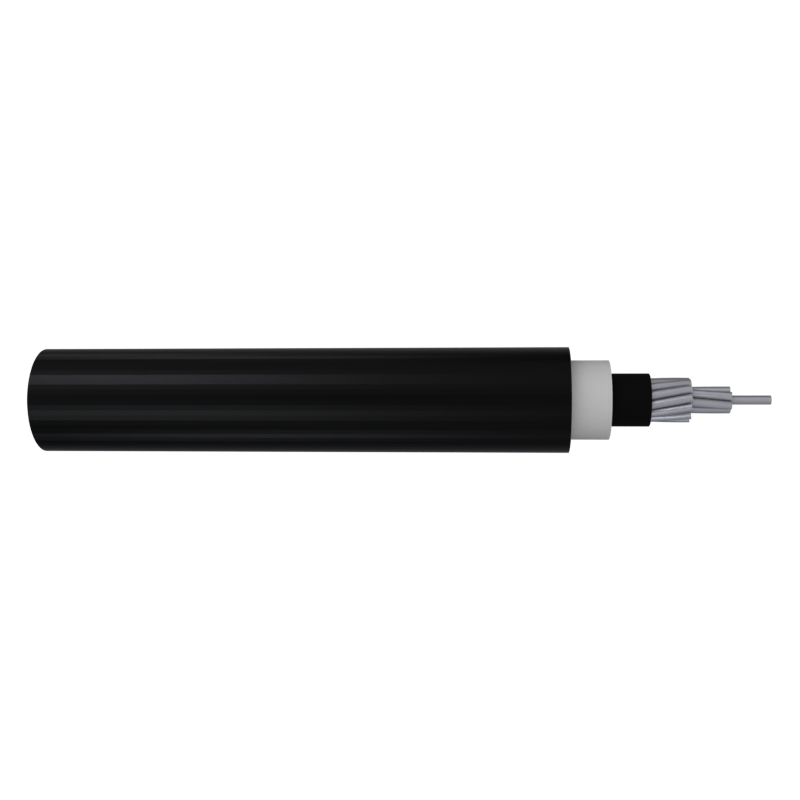

Product Description
The conductors are stranded, circular compressed aluminum. The conductor screen consists of a black extruded semiconducting shield. The inner insulation is primarily natural-colored cross-linked polyethylene (XLPE), while the outer insulation—available in black or gray—uses thermoplastic HDPE or XLPE with weather and UV resistance. This standard encompasses both thermoplastic and cross-linked polyethylene constructions, rated for normal service temperatures of 75°C or 90°C.
Application
This type of spaced aerial cable (SAC cable) is designed for overhead power transmission, with a maximum system voltage of 15/25/35 kV.
Applicable Standard
ICEA S-66-524

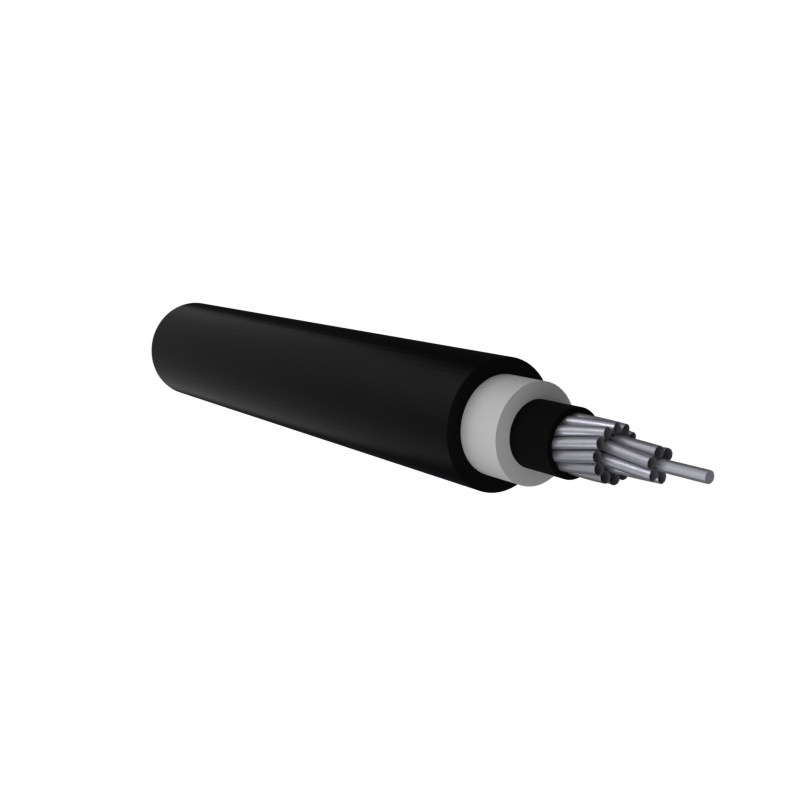

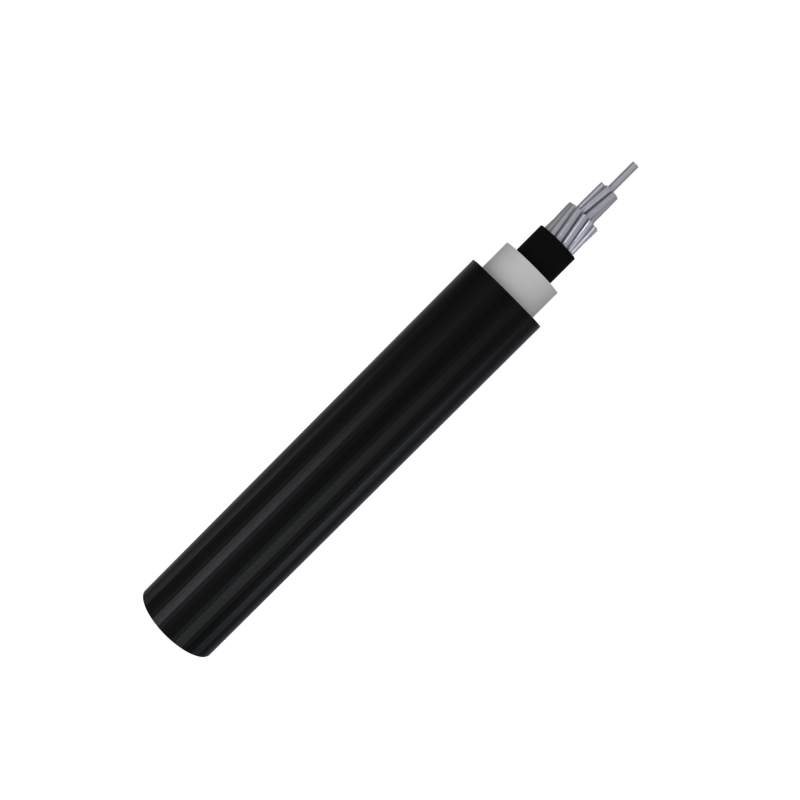

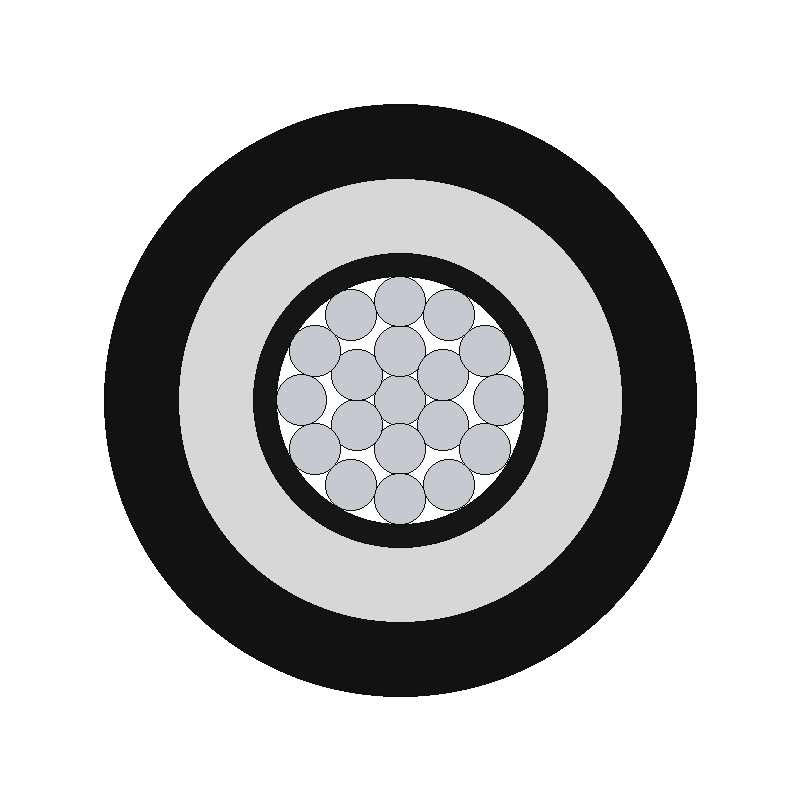

Construction
- 1.Conductor : Compact stranded hard drawn Aluminium wire or Aluminum Alloy Wire
- 2.Conductor shield : Semi-conductive Compound
- 3.Insulation : XLPE (Natural)
- 4.Sheath : XLPE/HDPE (Black)d
Technical Parameters
15kV SAC Cable AAC/XLPE/XLPE
15kV SAC Cable AAC/XLPE/HDPE
25KV SAC Cable AAC/XLPE/XLPE
25kV SAC AAC/XLPE/HDPE
35kV SAC Cable AAC/XLPE/XLPE
35KV SAC Cable AAC/XLPE/HDPE
| Nominal Size | Min.No. of Wires |
Covering Thickness | Approx. Diameter | Min.Breaking Load | Weight | ||
| Conductor Shield | Inner Layer | Outer Layer | |||||
| mm2 | No. | mm | mm | mm | mm | N | KG/KM |
| 25 | 6 | 0.60 | 1.91 | 1.91 | 15.2 | 3762 | 218 |
| 35 | 6 | 0.60 | 1.91 | 1.91 | 16.2 | 5177 | 258 |
| 50 | 6 | 060 | 1.91 | 1.91 | 173 | 7011 | 307 |
| 70 | 12 | 060 | 1.91 | 1.91 | 19.0 | 10354 | 387 |
| 95 | 15 | 0.60 | 1.91 | 1.91 | 20.8 | 13727 | 482 |
| 120 | 15 | 0.60 | 1.91 | 1.91 | 22.0 | 17339 | 564 |
| 150 | 15 | 060 | 1.91 | 1.91 | 23.7 | 21033 | 660 |
| 185 | 30 | 0.60 | 1.91 | 1.91 | 25.3 | 26732 | 780 |
| 240 | 30 | 0.60 | 1.91 | 1.91 | 276 | 34679 | 968 |
| Nominal Size | Min.No. of Wires |
Covering Thickness | Approx. Diameter | Min.Breaking Load | Weight | ||
| Conductor Shield | Inner Layer | Outer Layer | |||||
| mm2 | No. | mm | mm | mm | mm | N | KG/KM |
| 25 | 6 | 0.60 | 1.91 | 1.91 | 15.2 | 3762 | 221 |
| 35 | 6 | 0.60 | 1.91 | 1.91 | 16.2 | 5177 | 261 |
| 50 | 6 | 0.60 | 1.91 | 1.91 | 17.3 | 7011 | 310 |
| 70 | 12 | 0.60 | 1.91 | 1.91 | 19.0 | 10354 | 390 |
| 95 | 15 | 0.60 | 1.91 | 1.91 | 20.8 | 13727 | 486 |
| 120 | 15 | 0.60 | 1.91 | 1.91 | 22.0 | 17339 | 568 |
| 150 | 15 | 0.60 | 1.91 | 1.91 | 23.7 | 21033 | 664 |
| 185 | 30 | 0.60 | 1.91 | 1.91 | 25.3 | 26732 | 785 |
| 240 | 30 | 0.60 | 1.91 | 1.91 | 276 | 34679 | 973 |
| No.of Cores/Nominal cross section | Phase | Messenger | ||||
| Min. No.of Wire |
Nominal insulation thickness | Nominal AL/PET tape Thickness | Nominal
Sheath Thickness |
Conductor | Nominal Insulation Thickness | |
| mm² | No. | mm | mm | mm | No./mm | mm |
| 3×1×50+1×50 | 6 | 4.5 | 0.20 | 2.0 | 7/3.0 | 1.2 |
| 3×1×70+1×50 | 12 | 4.5 | 0.20 | 2.0 | 7/3.0 | 1.2 |
| 3×1×95+1×50 | 15 | 4.5 | 0.20 | 2.0 | 7/3.0 | 1.2 |
| 3×1×120+1×50 | 15 | 4.5 | 0.20 | 2.0 | 7/3.0 | 1.2 |
| 3×1×150+1×50 | 15 | 4.5 | 0.20 | 2.0 | 7/3.0 | 1.2 |
| 3×1×185+1×50 | 30 | 4.5 | 0.20 | 2.0 | 7/3.0 | 1.2 |
| 3×1×240+1×50 | 30 | 4.5 | 0.20 | 2.1 | 7/3.0 | 1.2 |
| 3×1×300+1×50 | 30 | 4.5 | 0.20 | 2.1 | 7/3.0 | 1.2 |
| 3×1×400+1×50 | 53 | 4.5 | 0.20 | 2.2 | 7/3.0 | 1.2 |
| 3×1×500+1×50 | 53 | 4.5 | 0.20 | 2.3 | 7/3.0 | 1.2 |
| 3×1×630+1×50 | 53 | 4.5 | 0.20 | 2.4 | 7/3.0 | 1.2 |
| Nominal Size | Min.No. of Wires |
Covering Thickness | Approx. Diameter | Min.Breaking Load | Weight | ||
| Conductor Shield | Inner Layer | Outer Layer | |||||
| mm2 | No. | mm | mm | mm | mm | N | kg/km |
| 25 | 6 | 0.70 | 3.18 | 3.18 | 20.1 | 3762 | 351 |
| 35 | 6 | 0.70 | 3.18 | 3.18 | 21.1 | 5177 | 398 |
| 50 | 6 | 0.70 | 3.18 | 3.18 | 22.2 | 7011 | 455 |
| 70 | 12 | 0.70 | 3.18 | 3.18 | 23.9 | 10354 | 548 |
| 95 | 15 | 0.70 | 3.18 | 3.18 | 25.7 | 13727 | 657 |
| 120 | 15 | 0.70 | 3.18 | 3.18 | 26.9 | 17339 | 748 |
| 150 | 15 | 0.70 | 3.18 | 3.18 | 28.6 | 21033 | 856 |
| 185 | 30 | 0.70 | 3.18 | 3.18 | 30.2 | 26732 | 989 |
| 240 | 30 | 0.70 | 3.18 | 3.18 | 32.5 | 34679 | 1195 |
| Nominal Size | Min.No. of Wires |
Conductor Shield | Covering Thickness | Approx. Diameter | Min,Breaking Load | Weight | |
| Inner Layer | Outer Layer | ||||||
| mm² | No. | mm | mm | mm | mm | N | kg/km |
| 25 | 6 | 0.70 | 3.18 | 3.18 | 20.1 | 3762 | 356 |
| 35 | 6 | 0.70 | 3.18 | 3.18 | 21.1 | 5177 | 404 |
| 50 | 6 | 0.70 | 3.18 | 3.18 | 22.2 | 7011 | 461 |
| 70 | 12 | 0.70 | 3.18 | 3.18 | 23.9 | 10354 | 555 |
| 95 | 15 | 0.70 | 3.18 | 3.18 | 25.7 | 13727 | 664 |
| 120 | 15 | 0.70 | 3.18 | 3.18 | 26.9 | 17339 | 755 |
| 150 | 15 | 0.70 | 3.18 | 3.18 | 28.6 | 21033 | 864 |
| 185 | 30 | 0.70 | 3.18 | 3.18 | 30.2 | 26732 | 997 |
| 240 | 30 | 0.70 | 3.18 | 3.18 | 32.5 | 34679 | 1203 |
| Nominal Size | Min.No. of Wires |
Covering Thickness | Approx. Diameter | Min.Breaking Load | Weight | ||
| Conductor Shield | Inner Layer | Outer Layer | |||||
| mm2 | No. | mm | mm | mm | mm | N | KG/KM |
| 25 | 6 | 0.70 | 4.45 | 3.18 | 22.6 | 3762 | 433 |
| 35 | 6 | 0.70 | 4.45 | 3.18 | 23.6 | 5177 | 485 |
| 50 | 6 | 0.70 | 4.45 | 3.18 | 24.7 | 7011 | 545 |
| 70 | 12 | 0.70 | 4.45 | 3.18 | 26.4 | 10354 | 645 |
| 95 | 15 | 0.70 | 4.45 | 3.18 | 28.2 | 13727 | 761 |
| 120 | 15 | 0.70 | 4.45 | 3.18 | 29.4 | 17339 | 856 |
| 150 | 15 | 0.70 | 4.45 | 3.18 | 31.1 | 21033 | 971 |
| 185 | 30 | 0.70 | 4.45 | 3.18 | 32.7 | 26732 | 1110 |
| 240 | 30 | 0.70 | 4.45 | 3.18 | 35.0 | 34679 | 1324 |
| Nominal Size | Min.No. of Wires |
Covering Thickness | Approx. Diameter | Min.Breaking Load | Weight | ||
| Conductor Shield | Inner Layer | Outer Layer | |||||
| mm2 | No. | mm | mm | mm | mm | N | KG/KM |
| 25 | 6 | 0.70 | 4.45 | 3.18 | 22.6 | 3762 | 439 |
| 35 | 6 | 0.70 | 4.45 | 3.18 | 23.6 | 5177 | 491 |
| 50 | 6 | 0.70 | 4.45 | 3.18 | 24.7 | 7011 | 552 |
| 70 | 12 | 0.70 | 4.45 | 3.18 | 26.4 | 10354 | 652 |
| 95 | 15 | 0.70 | 4.45 | 3.18 | 28.2 | 13727 | 768 |
| 120 | 15 | 0.70 | 4.45 | 3.18 | 29.4 | 17339 | 864 |
| 150 | 15 | 0.70 | 4.45 | 3.18 | 31.1 | 21033 | 980 |
| 185 | 30 | 0.70 | 4.45 | 3.18 | 32.7 | 26732 | 1119 |
| 240 | 30 | 0.70 | 4.45 | 3.18 | 35.0 | 34679 | 1334 |
