Product Description
CAAI cable(Self Supporting Cable) is constructed with 1350 or 6201 aluminum alloy conductors and insulated with XLPE. It is designed for overhead power transmission and distribution systems up to 0.6/1 kV, typically installed on power poles or building exteriors.
Application
Used in secondary low-cost electricity distribution networks in urban and rural areas. Installed on poles or building walls with appropriate accessories. No insulators are required.
Applicable Standard
NTP 370.254, ICEA S-76-474

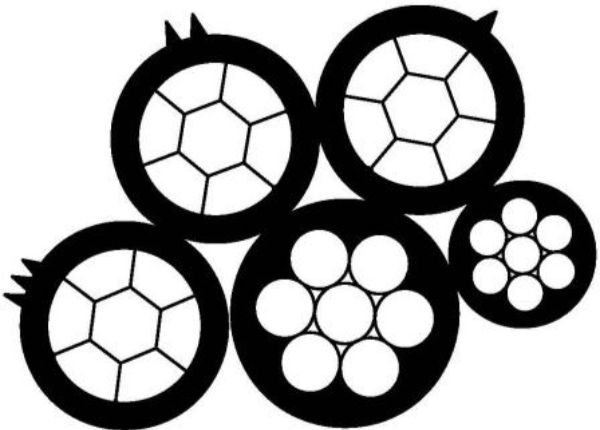

Construction
Aluminum conductor with an aluminum alloy support core. The support conductor can be either bare (type “ND”) or insulated (type “NA”).
- 1350 aluminum phase and lighting conductor
- 6201 aluminum alloy neutral conductor
- XLPE Insulation
Technical Parameters
| Size | Phase Core | Neutral Core | Lighting Core | Approx. Weight | Max. Cond. DC Resist. @ 20℃ | Min. Breaking Load of Neutral | |||||
| – | Conductor Wire No. | Insulation Thickness | Wire No. | Insulation Thickness | Wire No. | Insulation Thickness | Phase Core | Neutral Core | Lighting Core | – | |
| mm2 | / | mm | / | mm | / | mm | Kg/km | Ω/km | Ω/km | Ω/km | kN |
| 1×16+NA25 | 7 | 1.14 | 7 | 1.14 | / | / | 159 | 1.91 | 1.3189 | / | 6.44 |
| 1×25+NA25 | 7 | 1.14 | 7 | 1.14 | / | / | 186 | 1.20 | 1.3189 | / | 6.44 |
| 1×16+1×16+NA25 | 7 | 1.14 | 7 | 1.14 | 7 | 1.14 | 224 | 1.91 | 1.3189 | 1.91 | 6.44 |
| 2×16+NA25 | 7 | 1.14 | 7 | 1.14 | / | / | 224 | 1.91 | 1.3189 | / | 6.44 |
| 2×16+1×16+NA25 | 7 | 1.14 | 7 | 1.14 | 7 | 1.14 | 289 | 1.91 | 1.3189 | 1.91 | 6.44 |
| 2×25+1×16+NA25 | 7 | 1.14 | 7 | 1.14 | 7 | 1.14 | 343 | 1.20 | 1.3189 | 1.91 | 6.44 |
| 2×35+1×16+NA25 | 7 | 1.14 | 7 | 1.14 | 7 | 1.14 | 401 | 0.868 | 1.3189 | 1.91 | 6.44 |
| 2×25+NA25 | 7 | 1.14 | 7 | 1.14 | / | / | 278 | 1.20 | 1.3189 | / | 6.44 |
| 3×16+1×16+NA25 | 7 | 1.14 | 7 | 1.14 | 7 | 1.14 | 354 | 1.91 | 1.3189 | 1.91 | 6.44 |
| 3×25+1×16+NA25 | 7 | 1.14 | 7 | 1.14 | 7 | 1.14 | 435 | 1.20 | 1.3189 | 1.91 | 6.44 |
| 3×35+1×16+NA25 | 7 | 1.14 | 7 | 1.14 | 7 | 1.14 | 522 | 0.868 | 1.3189 | 1.91 | 6.44 |
| 3×50+1×16+NA35 | 7 | 1.52 | 7 | 1.14 | 7 | 1.14 | 712 | 0.641 | 0.9421 | 1.91 | 9.13 |
| 3×70+1×16+NA50 | 19 | 1.52 | 7 | 1.14 | 7 | 1.52 | 952 | 0.443 | 0.6516 | 1.91 | 13.14 |
| 3×95+1×16+NA70 | 19 | 1.52 | 7 | 1.14 | 19 | 1.52 | 1253 | 0.320 | 0.4840 | 1.91 | 17.47 |
| 3×120+1×16+NA70 | 19 | 2.03 | 7 | 1.14 | 19 | 1.52 | 1535 | 0.253 | 0.4840 | 1.91 | 17.47 |
