Product Description
Pre-assembled cables are manufactured by twisting together one, two, or three insulated phase conductors along with an insulated neutral conductor.
Application
Pre-assembled aluminum conductors are used for overhead secondary distribution networks, street lighting circuits, and closed-type secondary networks. These conductors are suitable for installation in both dry and humid environments.
Applicable Standard
ABNT NBR 8182, IEC 60228&IEC 60502-1
Construction

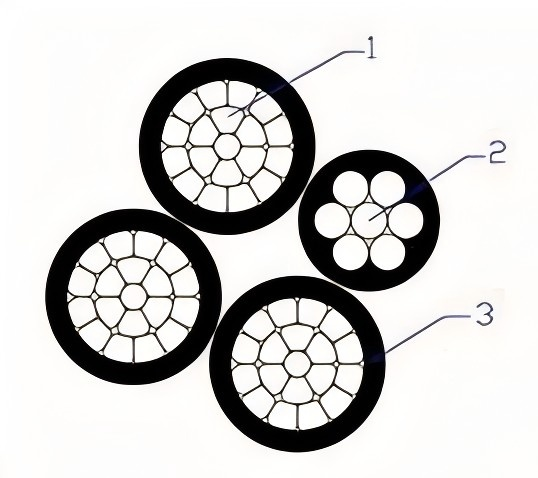

In general, the pre-assembled Cable is constructed in the following structure:
- Phase core:Class 2 compacted or non-compacted aluminum wire
- Neutral Core:AAC,AAAC or ACSR
- Insulation: XLPE or PE
Technical Parameters
| Size | Phase Core | Neutral Core | Approx. Overall Diameter | Approx. Weight | ||
| Wire No. | Insulation Thickness | Wire No. | Insulation Thickness | |||
| mm2 | / | mm | / | mm | mm | Kg/km |
| 2×16 | 7 | 1.20 | 7 | 1.2 | 15.00 | 132 |
| 1×16+16 | 7 | 1.20 | 7 | / | 12.60 | 110 |
| 2×25 | 7 | 1.20 | 7 | 1.2 | 17.20 | 190 |
| 1×25+25 | 7 | 1.20 | 7 | / | 15.00 | 163 |
| 2×25+25 | 7 | 1.20 | 7 | 1.20 | 19.20 | 282 |
| 3×25+50 | 7 | 1.20 | 7 | 1.40 | 23.20 | 461 |
| 3×35+50 | 7 | 1.40 | 7 | 1.40 | 25.80 | 568 |
| 3×50+50 | 7 | 1.40 | 7 | 1.40 | 27.90 | 685 |
| 3×70+50 | 19 | 1.40 | 7 | 1.40 | 30.80 | 876 |
| 3×95+50 | 19 | 1.60 | 7 | 1.40 | 34.5 | 1134 |
