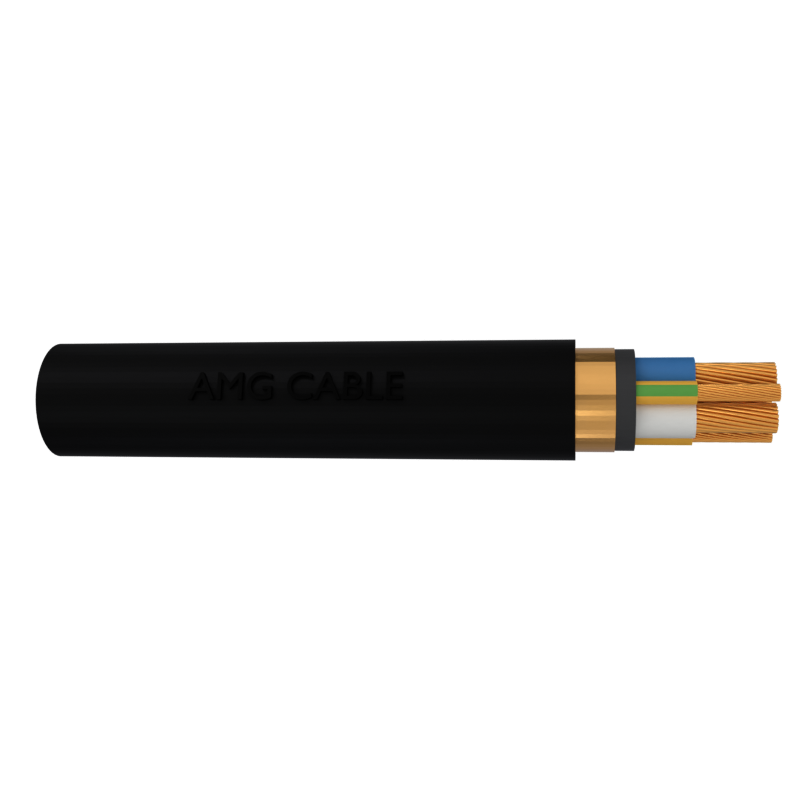

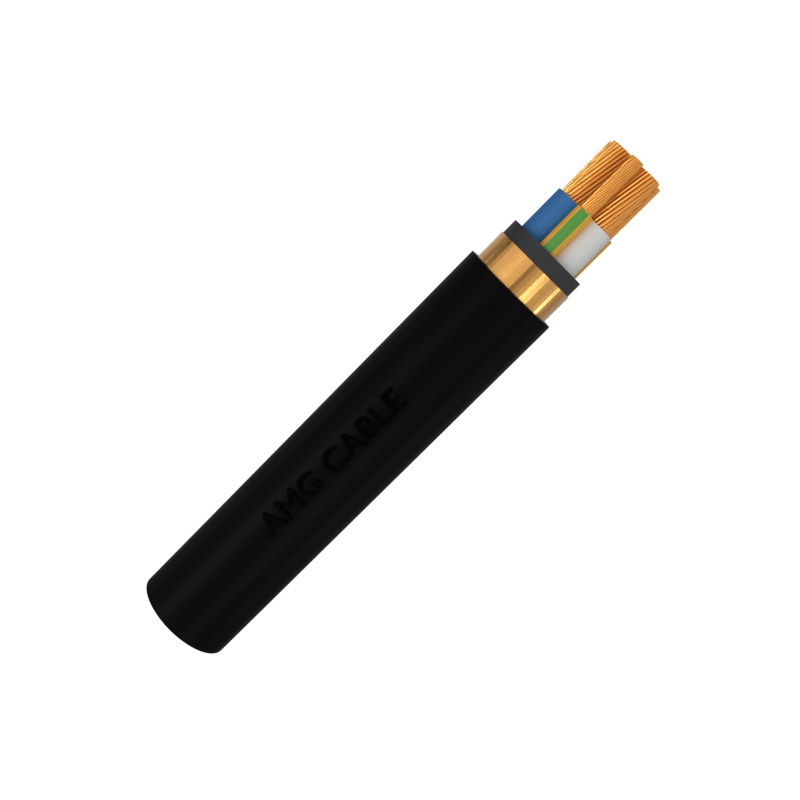

Product Description
Flexible VSD/EMC Cables (0.6/1kV),are suitable for Variable Speed Drive (VSD) systems and any application that demands high-performance screening.
Application
They are specifically engineered to provide Electromagnetic Compatibility (EMC) by reducing interference and disturbance, thus preventing unwanted effects caused by the propagation and reception of electromagnetic energy.
Applicable Standard
AS/NZS1125
AS/NZS3808
AS/NZS5000.1

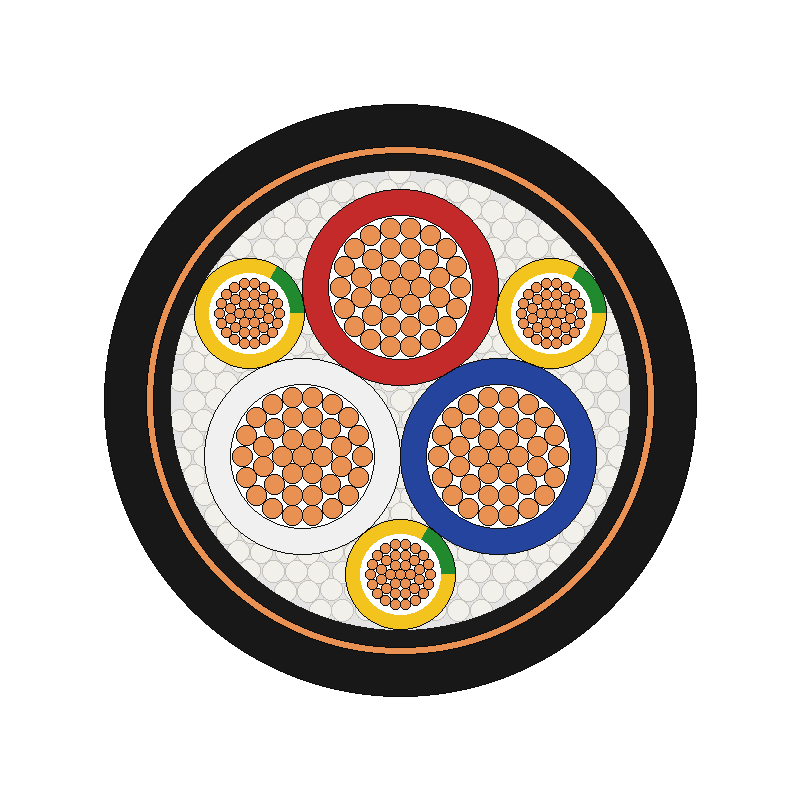

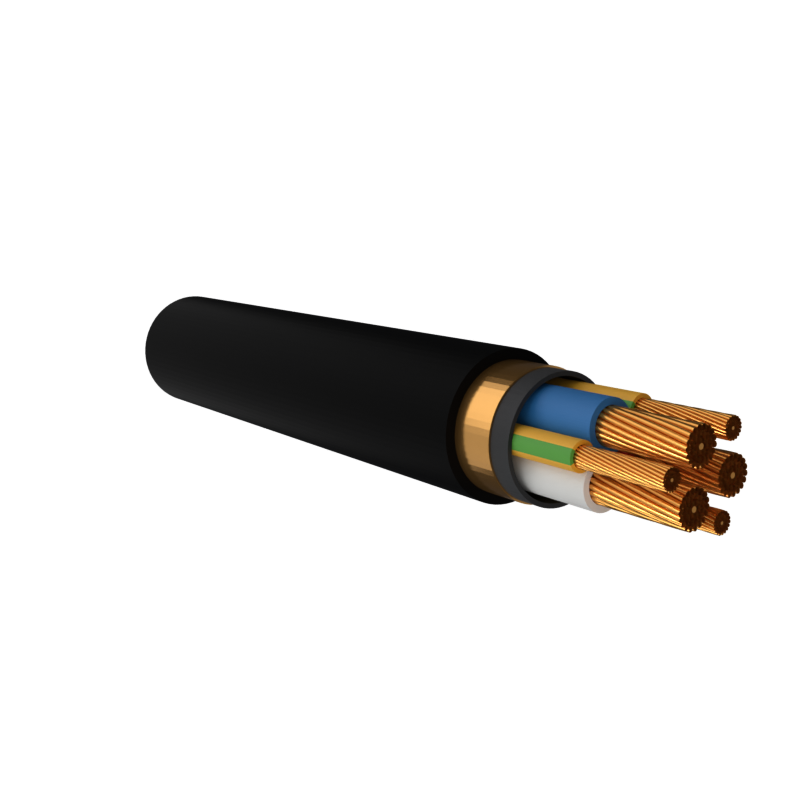

Construction
Type 1:
| Conductor | Plain annealed copper, class 5 strands |
| Insulation | Flame retardant polyvinyl chloride PVC |
| Insulation colour: | 3 cores + E: Red, White, Blue + Green/Yellow4 cores + E: Red, White, Blue, Black + Green/Yellow |
| Filler: | Non-hygroscopic Material |
| Bedding: | Flame retardant polyvinyl chloride PVC |
| Screen: | Tinned annealed copper braid |
| Sheath: | Flame retardant polyvinyl chloride PVC |
| Sheath colour: | Transparent |
Type 2:
| Conductor | Plain annealed copper, class 5 strands |
| Insulation | Cross -linked polyethylene (XLPE) |
| Insulation colour: | 3 cores + E: Red, White, Blue + Green/Yellow 4 cores + E: Red, White, Blue, Black + Green/Yellow |
| Filler: | Non-hygroscopic material |
| Bedding: | Thermoplastic elastomer (TPE) |
| Screen: | Plain annealed copper braid |
| Sheath: | Thermoplastic elastomer (TPE) |
| Sheath colour: | Black |
Technical Parameters
Type 1
Type 2
| No.of Cores | Nom.Conductor Area | Core Diameter | Earth Conductor Area | Earth Conductor Diameter | Overall Bedding Diameter | Approx.Overall Cable Diameter | Approx.Weight |
| ~ | mm2 | mm | mm2 | mm | mm | mm | KG/KM |
| 2C+E | 1.5 | 3.2 | 1.5 | 3.2 | 9.8 | 14.48 | 220 |
| 2C+E | 2.5 | 3.7 | 2.5 | 3.7 | 11.0 | 15.85 | 272 |
| 3C+E | 1.0 | 2.9 | 1.0 | 2.7 | 9.1 | 13.62 | 205 |
| 3C+E | 1.5 | 3.2 | 1.5 | 3.0 | 9.8 | 14.48 | 238 |
| 3C+E | 2.5 | 3.7 | 2.5 | 3.5 | 11.0 | 15.85 | 299 |
| 3C+E | 4 | 4.7 | 4 | 4.7 | 13.3 | 18.58 | 417 |
| 3C+3E | 6 | 5.3 | 1.5 | 3.0 | 13.4 | 16.86 | 478 |
| 3C+3E | 10 | 6.2 | 1.5 | 3.0 | 15.5 | 19.07 | 636 |
| 3C+3E | 16 | 7.4 | 2.5 | 3.5 | 18.4 | 22.10 | 908 |
| 3C+3E | 25 | 9.1 | 4 | 4.7 | 22.3 | 29.12 | 1357 |
| 3C+3E | 35 | 10.3 | 6 | 5.3 | 25.3 | 32.71 | 1794 |
| 3C+3E | 50 | 12.3 | 10 | 6.2 | 29.5 | 37.67 | 2480 |
| 3C+3E | 70 | 14.0 | 10 | 6.2 | 33.5 | 42.75 | 3323 |
| 4C+E | 1.5 | 3.2 | 1.5 | 3.0 | 9.2 | 13.79 | 239 |
| 4C+E | 2.5 | 3.7 | 2.5 | 3.5 | 10.5 | 15.21 | 309 |
| 4C+E | 4 | 4.7 | 2.5 | 3.5 | 12.4 | 17.49 | 415 |
| 4C+E | 6 | 5.3 | 2.5 | 3.5 | 13.6 | 18.92 | 516 |
| 4C+E | 10 | 6.2 | 4 | 4.7 | 16.1 | 21.87 | 753 |
| 4C+E | 16 | 7.4 | 6 | 5.3 | 18.7 | 24.89 | 1054 |
| 4C+E | 25 | 9.1 | 6 | 5.3 | 22.2 | 29.03 | 1499 |
| 4C+E | 35 | 10.3 | 10 | 6.2 | 25.2 | 32.51 | 1987 |
| 4C+E | 50 | 12.3 | 16 | 7.4 | 29.6 | 37.80 | 2766 |
| 4C+E | 70 | 14.0 | 25 | 9.1 | 34.0 | 43.37 | 3877 |
| No.of Cores | Nom.
Conductor Area |
Core Diameter | Earth Conductor Area | Earth Conductor Diameter | Over Bedding Diameter | Approx.Overall Cable Diameter | Approx.Weight |
| ~ | mm2 | mm | mm2 | mm | mm | mm | KG/KM |
| 3C+E | 1.5 | 3.2 | 1.5 | 3.0 | 8.8 | 12.26 | 201 |
| 3C+E | 2.5 | 3.7 | 2.5 | 3.5 | 10.1 | 13.56 | 260 |
| 3C+3E | 4 | 4.7 | 1.5 | 3.0 | 10.4 | 13.89 | 311 |
| 3C+3E | 6 | 5.3 | 1.5 | 3.0 | 11.7 | 15.34 | 393 |
| 3C+3E | 10 | 6.2 | 1.5 | 3.0 | 13.9 | 17.64 | 563 |
| 3C+3E | 16 | 7.4 | 2.5 | 3.5 | 16.4 | 20.34 | 808 |
| 3C+3E | 25 | 9.1 | 4 | 4.1 | 20.3 | 24.53 | 1206 |
| 3C+3E | 35 | 10.3 | 6 | 4.7 | 23.1 | 27.49 | 1608 |
| 3C+3E | 50 | 12.3 | 10 | 5.6 | 27.0 | 31.70 | 2248 |
| 3C+3E | 70 | 14.0 | 10 | 5.6 | 31.4 | 36.84 | 3118 |
| 4C+E | 1.5 | 3.2 | 1.5 | 3.0 | 9.4 | 12.65 | 222 |
| 4C+E | 2.5 | 3.7 | 2.5 | 3.5 | 10.5 | 13.89 | 288 |
| 4C+E | 4 | 4.7 | 2.5 | 3.5 | 11.6 | 15.05 | 362 |
| 4C+E | 6 | 5.3 | 2.5 | 3.5 | 12.8 | 16.30 | 455 |
| 4C+E | 10 | 6.2 | 4 | 4.7 | 15.2 | 18.88 | 676 |
| 4C+E | 16 | 7.4 | 6 | 5.3 | 18.0 | 21.95 | 980 |
| 4C+E | 25 | 9.1 | 6 | 5.3 | 21.6 | 25.78 | 1405 |
| 4C+E | 35 | 10.3 | 10 | 6.2 | 24.9 | 29.25 | 1900 |
| 4C+E | 50 | 12.3 | 16 | 7.4 | 28.8 | 33.46 | 2618 |
| 4C+E | 70 | 14.0 | 25 | 9.1 | 33.6 | 38.97 | 3740 |
