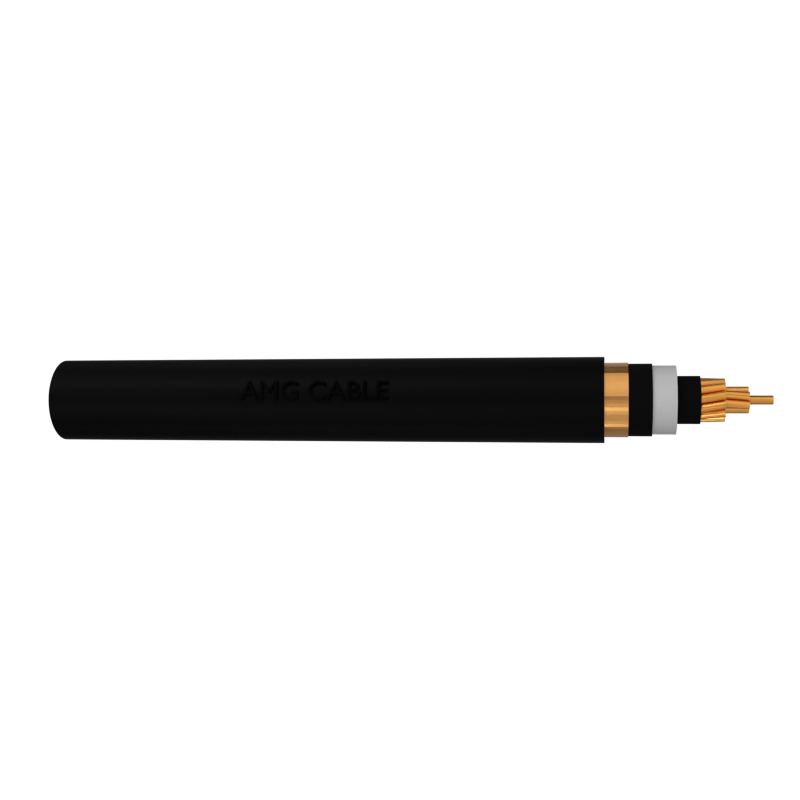

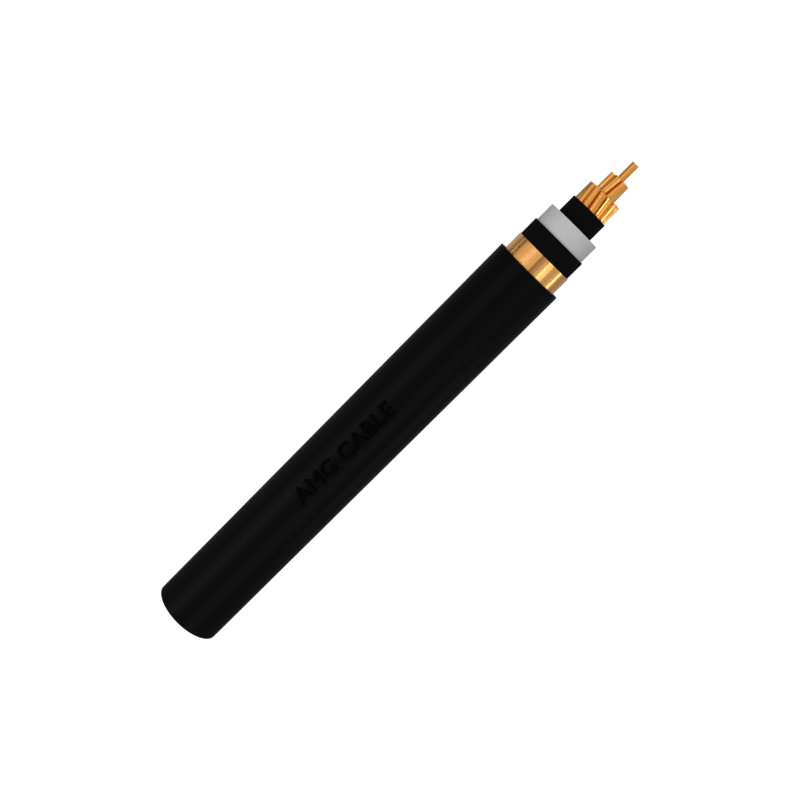

5kV 8KV 15KV 25KV 35kV MV-90 MV-105 Copper tape Cable

Medium voltage copper conductor underground power cables in 5kV, 8kV, 15kV, 25kV, 35kV voltage ratings with MV-90 and MV-105 insulation, constructed per ICEA S-94-649 standard.

ASTM B 8 & B 496

ICEA S-93-639 / NEMA WC 74

UL1072

GET A QUOTE SEND EMAIL NOW

Product Description

Medium voltage copper conductor underground power cables in 5kV, 8kV, 15kV, 25kV, 35kV voltage ratings with MV-90 and MV-105 insulation, constructed per ICEA S-94-649 standard.

Application

MV-90 (5-35kV) Shielded Copper Cable with 100% / 133% XLPE insulation, engineered for primary distribution networks in residential, commercial, and industrial areas; suitable for installation in conduits, underground ducts, or direct burial applications.

Applicable Standard

ASTM B 8 & B 496

ICEA S-93-639 / NEMA WC 74

UL1072

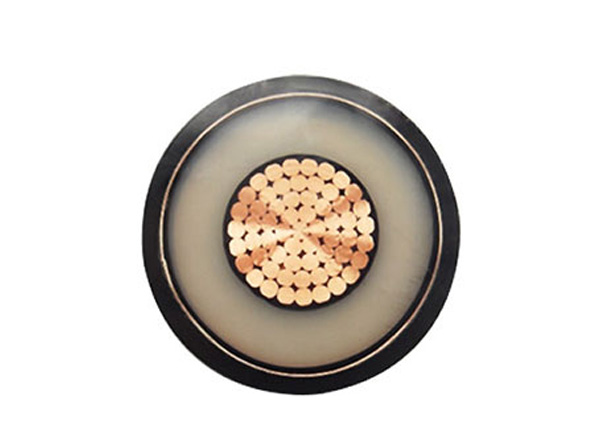

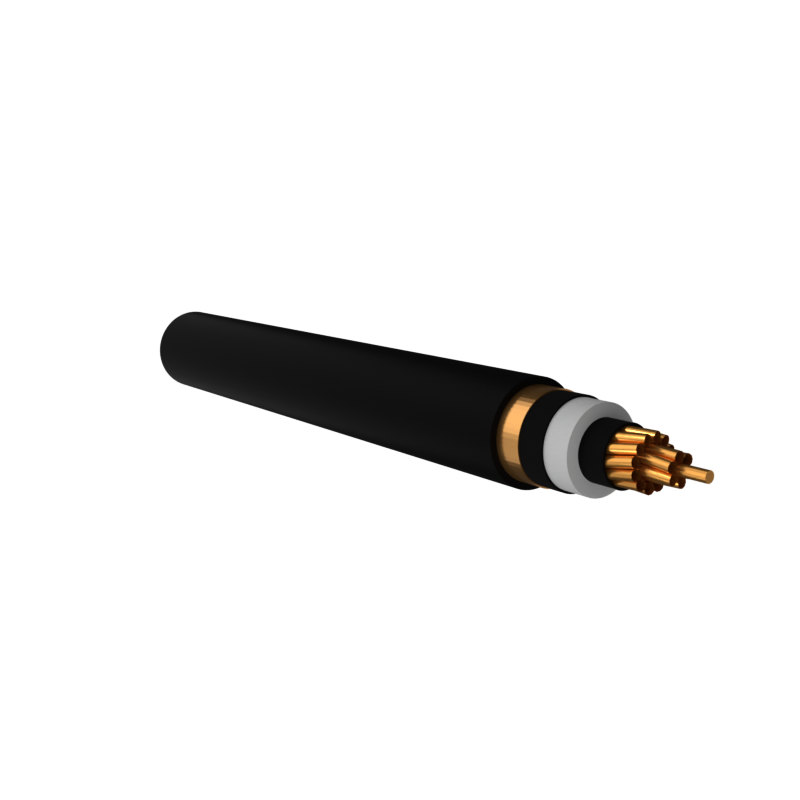

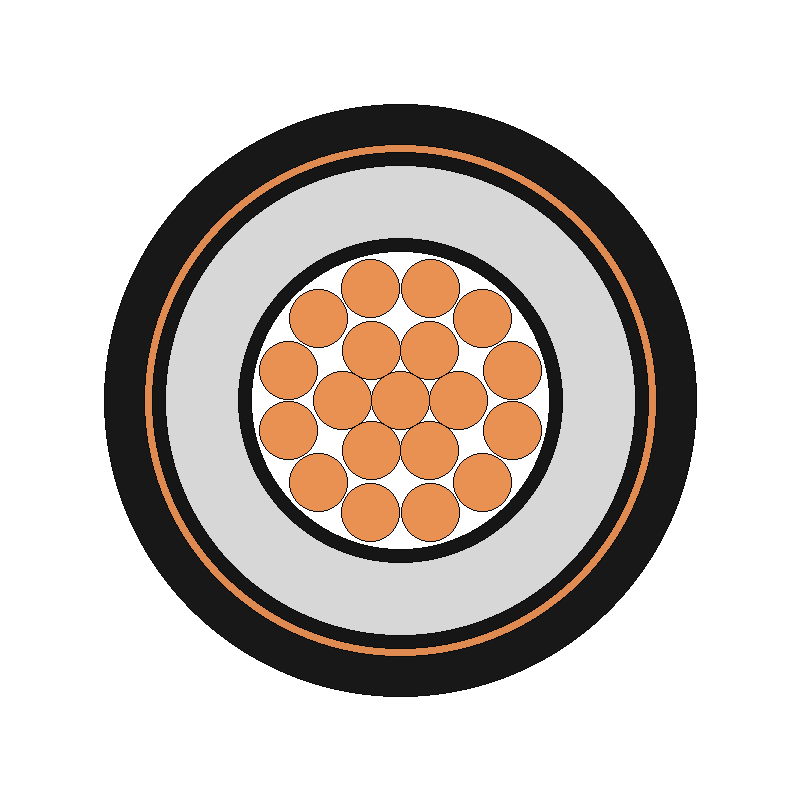

Construction

Conductor: Compressed or compacted concentric-lay-stranded Copper or Aluminum.
Conductor Shield: Extruded non-metallic semiconducting compound.
Insulation: Available in 100%, 133%, and 173% insulation levels; Cross-linked Polyethylene (XLPE) or Tree-Retardant Cross-linked Polyethylene (TR-XLPE).
Insulation Shield: Extruded non-metallic semiconducting compound.
Metallic Shield: Helically applied copper tape.
Outer Jacket: Sunlight-resistant Polyvinyl Chloride (PVC), Polyethylene (PE), or Polyolefin (PO).

Technical Parameter

5KV MV-90

15KV MV-90

25KV MV-90

35KV MV-90

Size	Number of Strands	Conductor Nominal OD	100%Insulation Levels (90 mil)
			Nominal Diameter Over Insulation	Jacket Thickness	Approx. Overall Diameter	Approximate Net Weight
			Nominal Diameter Over Insulation	Jacket Thickness	Approx. Overall Diameter	Copper	Aluminum
AWG or kcmil		in	mil	mil	in	lb/kft	lb/kft
8	7	0.13	0.35	60	0.56	200
6	7	0.17	0.38	60	0.59	245	188
4	7	0.21	0.43	60	0.64	311	221
2	7	0.27	0.48	60	0.69	410	267
1	19	0.3	0.51	60	0.72	475	295
1/0	19	0.34	0.55	60	0.76	558	331
2/0	19	0.38	0.59	60	0.8	659	373
3/0	19	0.42	0.64	80	0.89	821	460
4/0	19	0.48	0.69	80	0.94	980	526
250	37	0.52	0.75	80	0.99	1124	586
350	37	0.62	0.84	80	1.09	1477	724
500	37	0.74	0.96	80	1.21	1996	921
750	61	0.91	1.14	80	1.41	2879	1266
1000	61	1.06	1.3	80	1.57	3723	1573

Size	No. Of Wire	Con. Dia	100%Insulation Level (115 mil)					133%Insulation Level (140 mil)
AWG/ KCMIL		Con. Dia	Nom. Con. Diameter	Jacket Thickness	Approx OD	Approx. Weight （lb/kft)		Nom. Dia	Jacket Thickness	Approx. OD	Approx. Weight （lb/kft)
		in	in	mil	in	CU	AL	in	mil	in	CU	AL
2	7	0.27	0.65	80	0.91	549	406	0.74	80	1	615	472
1	19	0.3	0.68	80	0.94	618	438	0.77	80	1.03	686	506
1/0	19	0.34	0.72	80	0.97	707	480	0.81	80	1.06	776	549
2/0	19	0.38	0.76	80	1.01	814	528	0.85	80	1.1	886	600
3/0	19	0.42	0.81	80	1.06	948	587	0.9	80	1.15	1023	662
4/0	19	0.48	0.86	80	1.11	1113	658	0.95	80	1.2	1191	736
250	37	0.52	0.92	80	1.17	1262	725	1.01	80	1.28	1368	830
300	37	0.57	0.97	80	1.22	1445	800	1.06	80	1.33	1554	909
350	37	0.62	1.01	80	1.29	1651	897	1.1	80	1.38	1738	985
400	37	0.66	1.05	80	1.33	1830	970	1.14	80	1.42	1920	1060
500	37	0.74	1.13	80	1.41	2184	1109	1.22	80	1.5	2279	1203
600	61	0.81	1.22	80	1.49	2544	1253	1.31	80	1.58	2643	1353
750	61	0.91	1.31	80	1.59	3062	1449	1.4	110	1.74	3269	1656
1000	61	1.06	1.47	110	1.8	4029	1879	1.56	110	1.92	4197	2047

Size	No.of Wire	Con. Dia	100%Insulation Level (260 mil)					133%Insulation Level(320 mil)
Size	No.of Wire	Con. Dia	Nom. Thickness	Jacket Thickness	Approx.OD	Approx. Weight (lb/kft)		Nom. Dia	Jacket Thickness	Approx. OD	Approx. Weight (lb/kft)
AWG/ Kcmil		in	In	mil	in	CU	AL	In	mil	in	CU	AL
1	19	0.3	0.85	80	1.1	749	570	0.97	80	1.23	854	675
1/0	19	0.34	0.89	80	1.14	841	616	1.01	80	1.29	974	747
2/0	19	0.38	0.93	80	1.18	953	668	1.05	80	1.33	1090	804
3/0	19	0.42	0.98	80	1.23	1092	733	1.1	80	1.37	1233	872
4/0	19	0.48	1.03	80	1.3	1288	834	1.15	80	1.43	1408	953
250	37	0.52	1.09	80	1.36	1444	907	1.21	80	1.48	1569	1031
300	37	0.57	1.14	80	1.41	1633	989	1.26	80	1.53	1761	1116
350	37	0.62	1.18	80	1.45	1820	1067	1.3	80	1.58	1951	1198
400	37	0.66	1.22	80	1.49	2003	1144	1.34	80	1.62	2138	1278
500	37	0.74	1.3	80	1.57	2366	1292	1.42	110	1.76	2610	1534

Size	Wire No.	Conductor Diameter	100%Insulation Level (345 mil)					133%Insulation Level (420 ml)
Size			Nom. Dia Over Insulation	Jacket Thickness	Approx. Overall Diameter	Approx. Weight		Nom. Diameter Over Insulation	Jacket Thickness	Approx. Overall Diameter	Approximate. Weight
						Cu	Al				Cu	Al
AWG /kcmil						Cu	Al				Cu	Al
		in	in	mil	in	lb/kft		in	mil	in	lb/kft
1/0	19	0.34	1.06	80	1.34	1022	795	1.21	80	1.49	1176	949
2/0	19	0.38	1.1	80	1.38	1139	853	1.25	80	1.53	1296	1010
3/0	19	0.42	1.15	80	1.42	1284	923	1.3	80	1.57	1446	1085
4/0	19	0.48	1.2	80	1.48	1461	1006	1.35	80	1.63	1627	1173
250	37	0.52	1.26	80	1.53	1623	1085	1.41	110	1.74	1897	1359
300	37	0.57	1.31	80	1.58	1817	1172	1.46	110	1.79	2098	1454
350	37	0.62	1.35	80	1.63	2009	1255	1.5	110	1.84	2297	1544
400	37	0.66	1.39	80	1.67	2197	1337	1.54	110	1.91	2541	1681
500	37	0.74	1.47	110	1.81	2674	1598	1.62	110	1.99	2926	1850
600	61	0.81	1.56	110	1.93	3107	1816	1.71	110	2.08	3320	2029
750	61	0.91	1.65	110	2.02	3653	2040	1.8	110	2.17	3875	2262
1000	61	1.06	1.81	110	2.17	4559	2409	1.96	110	2.32	4795	2645
