Product Description
The 0.6/1kV Copper Concentric Cable exported to Chile is a specialized service entrance cable designed to meet the rigorous safety and technical standards of the Chilean electricity market.
Application
Single-phase service drops from low-voltage overhead lines. The design of these cables aims to prevent electricity theft during the drop from the line to its connection with the residential meter.
Applicable Standard
Conductor: In accordance with IEC 60228.
Insulation: In accordance with IEC 60502-1.
Concentric conductor: In accordance with IEC 60228.
Outer sheath: In accordance with IEC 60502-1.6

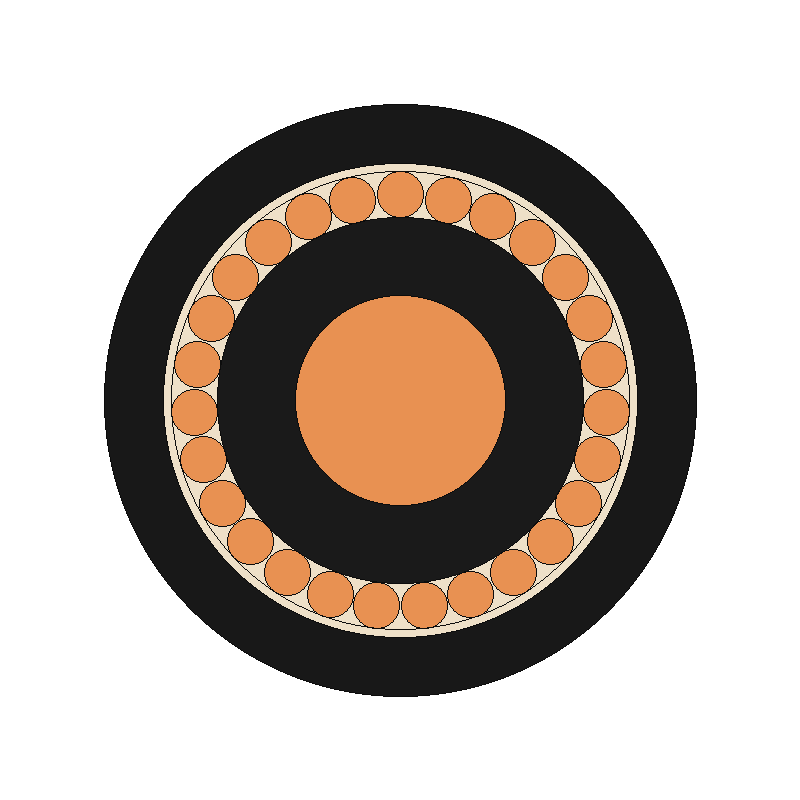

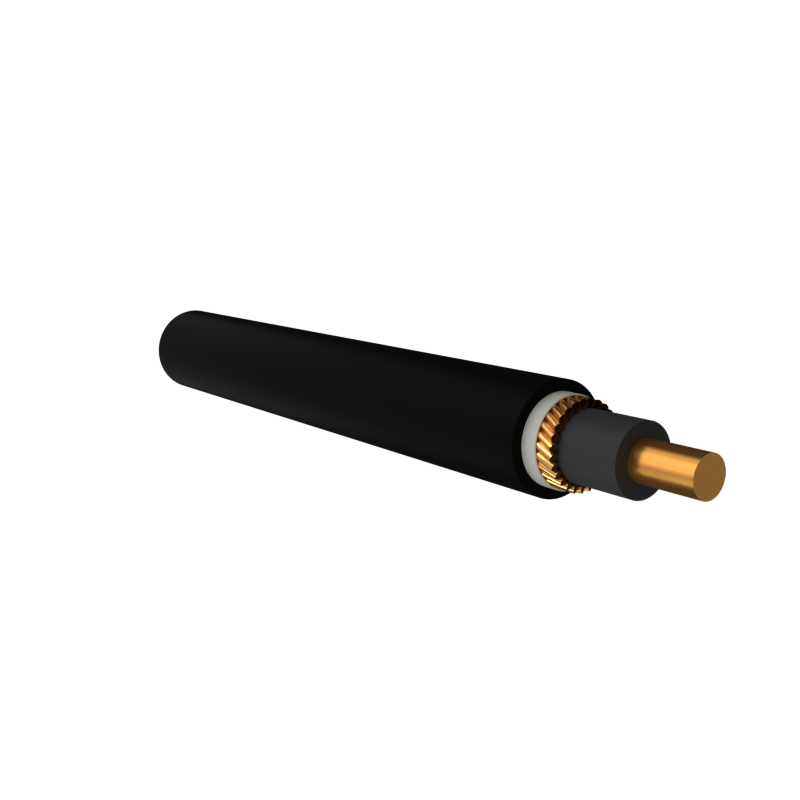

Construction
- Central Conductor: Class 1 solid copper wire
- Insulation: Black PVC
- Concentric Conductor:Stranded Copper wires applied helically
- Separator Tape: Polyester Tape
Technical Parameter

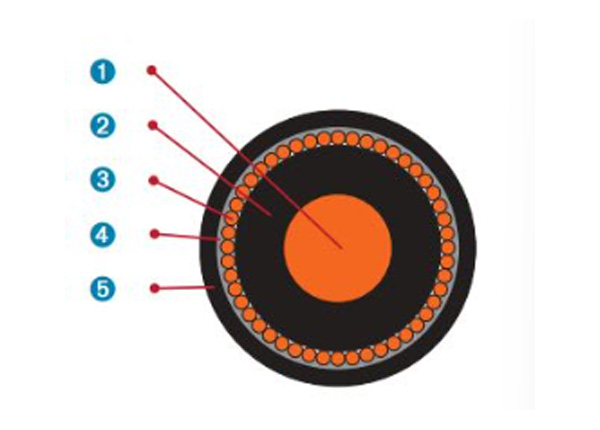

Concentric Cable to Chile
| Size | Approx.Dia of Conductor | Nom.
Insualtion Thickness |
Nom.
Out sheath Thickness |
Appprox.
Overall Diameter |
Approx.Weight | Max.DC Resistance@20℃ | Maximum Current Capacity |
| mm2 | mm | mm | mm | mm | KG/KM | Ω/km | A |
| 2×4 | 2.2 | 1.0 | 0.76 | 7.0 | 110 | 461 | 30 |
| 2×6 | 2.7 | 1.0 | 0.76 | 7.8 | 150 | 308 | 45 |
| The values indicated here are approximate and subject to manufacturing tolerances. | |||||||
