Product Description
AMG Cable offers high-performance Flat ESP cables, specifically engineered for applications with minimal clearance between the casing and production tubing. To ensure superior reliability and simplified installation, our cables are supplied on professional reels in continuous, splice-free lengths. These cables are built to withstand extreme thermal stress, with a maximum permissible operating temperature of 450°F (232°C).
Technical Characteristics:
- Cable Type: 3-Core Flat / 3-Core Round
- Voltage Rating: 3kV, 4kV, 5kV or6kV
- Temperature Rating: EPDM: Up to 400°F (204°C) or 450°F (232°C)
- Polypropylene: Up to 205°F (96°C)
Application
Downhole extraction systems are the backbone of crude oil production, where the integrity of the Electrical Submersible Pump (ESP) system hinges entirely on a seamless power chain. From the wellhead feed-through and power cables to motor leads and pigtail connectors, every component must exhibit absolute reliability. AMG Cable Solutions delivers a high-performance ESP cable portfolio engineered for efficiency and ruggedness. Our solutions are designed to simplify installation and minimize maintenance, ensuring consistent power delivery even in the most demanding wellbore conditions.
Applicable Standard
API RP 11S5-2008;API RP 11S6-2008; IEEE 1017,1018,1019; GB/T 16750-2015

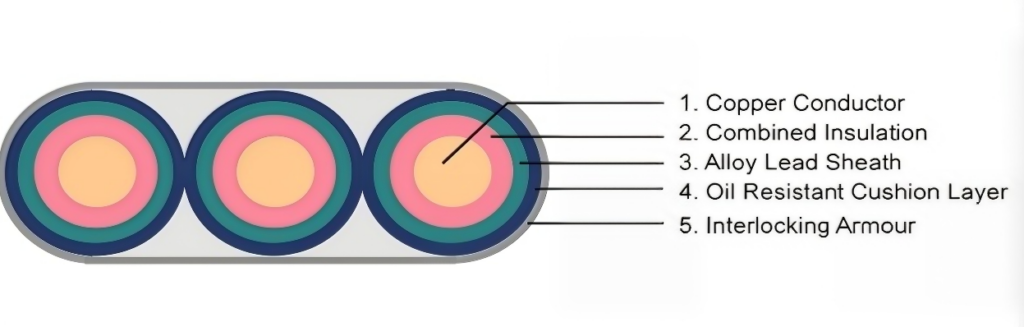

Construction
1.Solid or Stranded Tinned Copper Conductor
2.Combined Insulation( Poly-propylene / PDM/PFA/F46/FEP)
3.Lead Sheath
4.Synthetic Braid(Optional)
5.Bedding/Cushion
6.Armour
Technical Parameters
| Type | Conductor specification | EPDM insulation | LEAD sheath | Approx.Dimensions | Approx. Weight | |||||
| AWG | Area | Outer Diameter | Thickness | Outer Diameter | Thickness | Outer Diameter | Thickness | Width | ||
| ~ | ~ | mm2 | mm | mm | mm | mm | mm | mm | mm | KG/KM |
| 6EP3LDGF | 6 | 13 | 4.12 | 1.7 | 7.52 | 0.76 | 9.12 | 13.14 | 32.72 | 1700 |
| 4EP3LDGF | 4 | 20 | 5.19 | 1.7 | 8.59 | 0.76 | 10.19 | 14.21 | 35.93 | 2100 |
| 2EP3LDGF | 2 | 33 | 6.54 | 1.7 | 9.94 | 0.76 | 11.54 | 15.56 | 40 | 2600 |
| 1EP3LDGF | 1 | 42 | 7.35 | 1.7 | 10.75 | 0.76 | 12.35 | 16.37 | 42.41 | 3000 |
| Type | Conductor specification | EPDM insulation | LEAD sheath | Approx.Dimensions | Approx. Weight | |||||
| AWG | Area | Outer Diameter | Thickness | Outer Diameter | Thickness | Outer Diameter | Thickness | Width | ||
| ~ | ~ | mm2 | mm | mm | mm | mm | mm | mm | mm | KG/KM |
| 6EP5LDGF | 6 | 13 | 4.12 | 1.9 | 7.92 | 0.76 | 9.52 | 12.54 | 34 | 1850 |
| 4EP5LDGF | 4 | 20 | 5.19 | 1.9 | 8.99 | 0.76 | 10.59 | 14.61 | 37.13 | 2230 |
| 2EP5LDGF | 2 | 33 | 6.54 | 1.9 | 10.34 | 0.76 | 11.94 | 15.96 | 41 | 2770 |
| 1EP5LDGF | 1 | 42 | 7.35 | 1.9 | 11.15 | 0.76 | 14.75 | 16.8 | 43.6 | 3140 |
