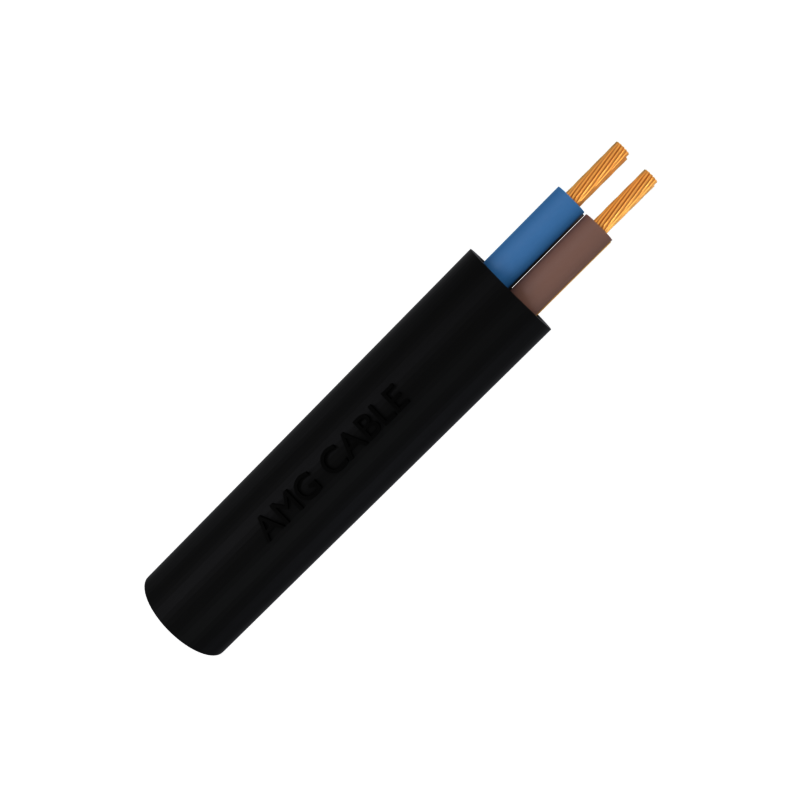

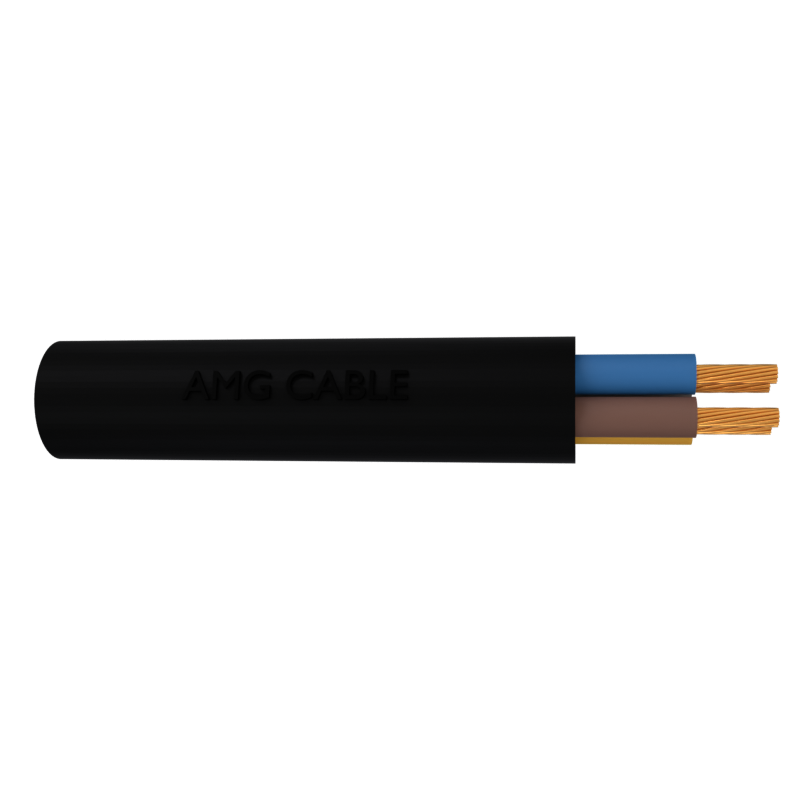

Product Description
The H05VV-F and H05VVH2-F are flexible PVC cables designed for medium-duty applications.
Application
These cables are suitable for applications involving medium mechanical stress in damp and wet environments, such as power supply for refrigerators, washing machines, spin dryers and similar household appliances, provided that they comply with the relevant equipment specifications. They are also applicable to cooking and heating appliances, on the condition that the cables do not make direct contact with the hot components of the appliances or any other heat sources.
Applicable Standard
BS EN 50525-2-11, DIN EN 50525-2-11;

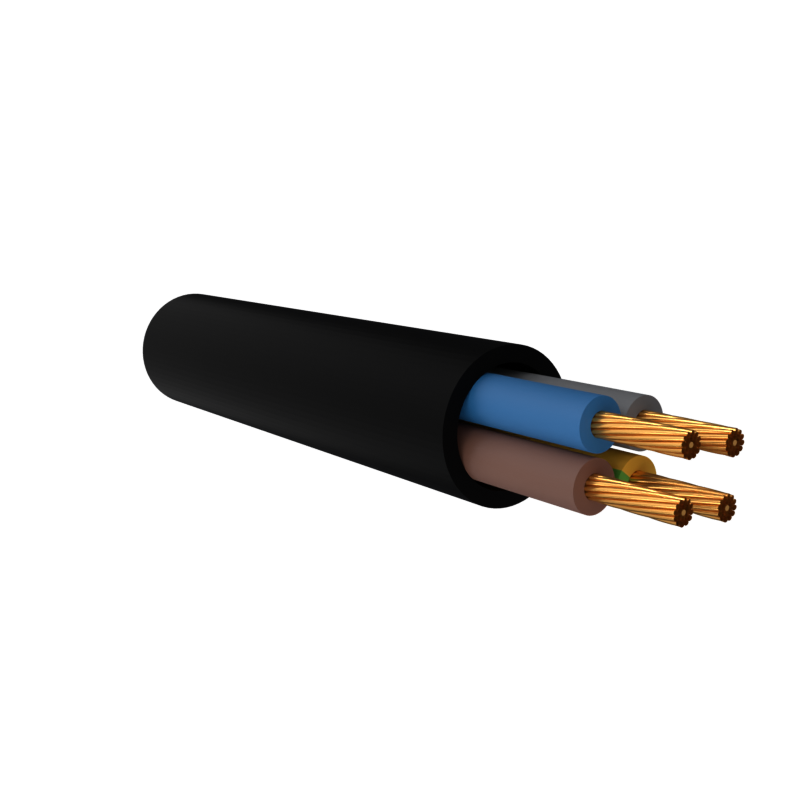

Construction

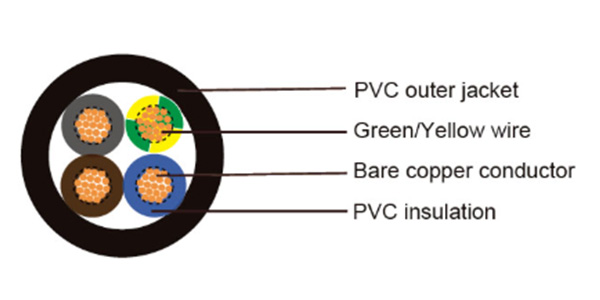

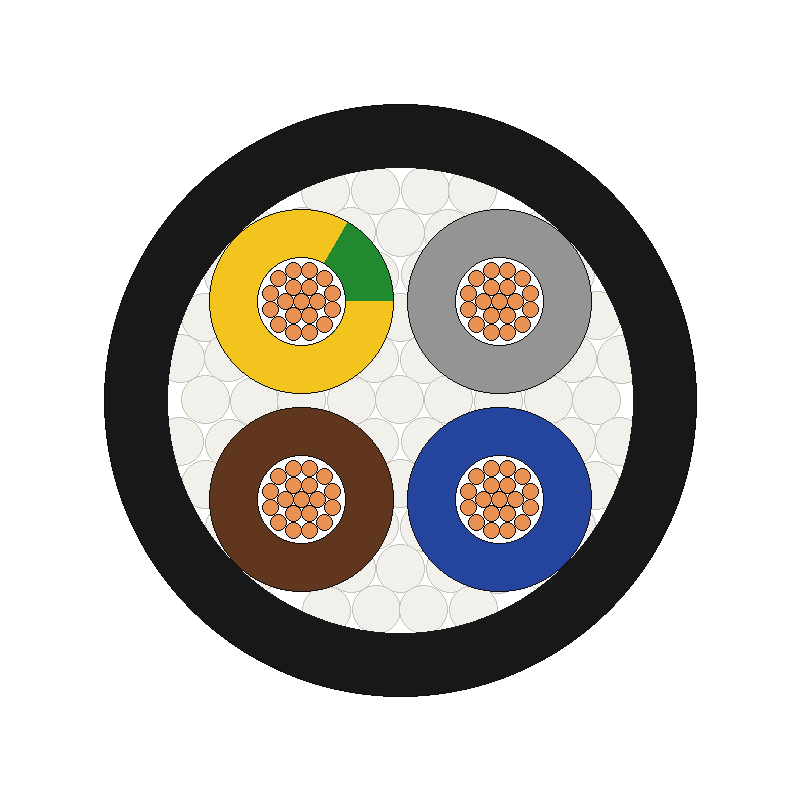

- Conductor: Class 5 Bare Copper Conductor
- Insulation: PVC insulation TI2
- Outer sheath: PVC Outer Sheath TM2
Technical Characteristics
- Operating Voltage: 300/500 V
- Withstand Test Voltage: 2000 V
- Dynamic Bending Radius: 7.5 × Ø
- Static Bending Radius: 4 × Ø
- Dynamic Temperature Range: -5°C ~ +70°C
- Static Temperature Range: -40°C ~ +70°C
- Short-circuit Endurance Temperature: +160°C
- Flame Retardancy Compliance: IEC 60332.1
- Insulation Resistance: 20 MΩ·km
Technical Parameters
H05VV-F&H05VVH2-F
| Nom.Cross Section | Nom.Insulation Thickness | Nom.Sheath Thickness | Approx.Overall Diameter | Approx.Weight |
| mm2 | mm | mm | mm | KG/KM |
| H05VV-F | ||||
| 2 x 0.75 | 0.6 | 0.8 | 6.4 | 57 |
| 3 x 0.75 | 0.6 | 0.8 | 6.8 | 68 |
| 4 x 0.75 | 0.6 | 0.8 | 7.4 | 84 |
| 5 x 0.75 | 0.6 | 0.9 | 8.5 | 106 |
| 2 x 1.00 | 0.6 | 0.8 | 6.8 | 65 |
| 3 x 1.00 | 0.6 | 0.8 | 7.2 | 79 |
| 4 x 1.00 | 0.6 | 0.9 | 8 | 101 |
| 5 x 1.00 | 0.6 | 0.9 | 8.8 | 123 |
| 2 x 1.50 | 0.7 | 0.8 | 7.6 | 87 |
| 3 x 1.50 | 0.7 | 0.9 | 8.2 | 111 |
| 4 x 1.50 | 0.7 | 1 | 9.2 | 142 |
| 5 x 1.50 | 0.7 | 1.1 | 10.5 | 176 |
| 2 x 2.50 | 0.8 | 1 | 9.2 | 134 |
| 3 x 2.50 | 0.8 | 1.1 | 10.1 | 169 |
| 4 x 2.50 | 0.8 | 1.1 | 11.2 | 211 |
| 5 x 2.50 | 0.8 | 1.2 | 12.4 | 262 |
| 3 x 4.00 | 0.8 | 1.2 | 11.3 | 233 |
| 4 x 4.00 | 0.8 | 1.2 | 12.5 | 292 |
| 5 x 4.00 | 0.8 | 1.4 | 13.7 | 369 |
| 3 x 6.00 | 0.8 | 1.1 | 13.1 | 328 |
| 4 x 6.00 | 0.8 | 1.3 | 13.9 | 490 |
| H05VVH2-F | ||||
| 2 x 0.75 | 0.6 | 0.8 | 4.2 x 6.8 | 48 |
| 2 x 1.00 | 0.6 | 0.8 | 4.4 x 7.2 | 57 |
