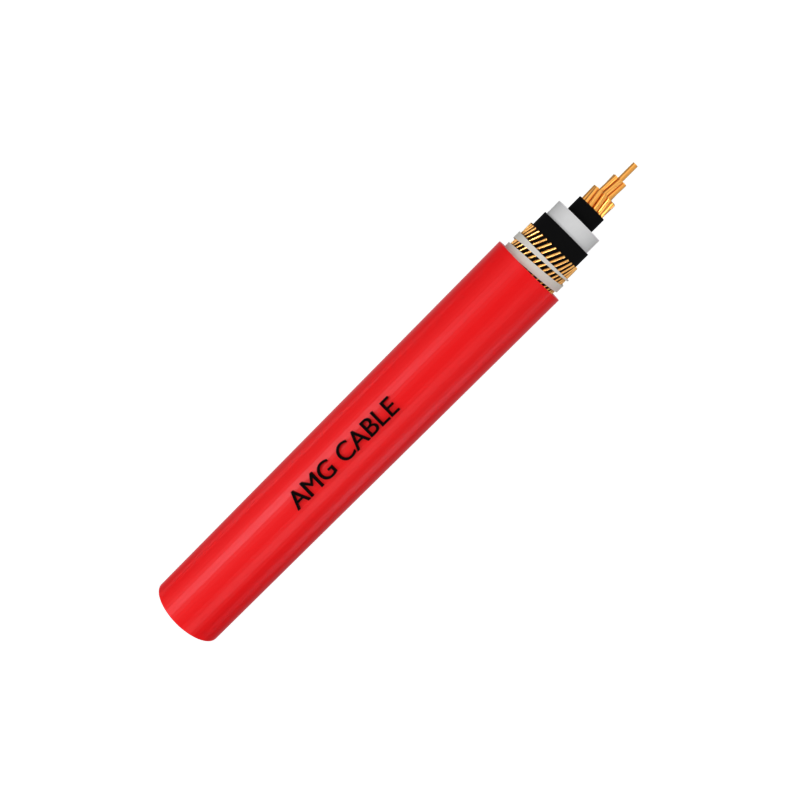

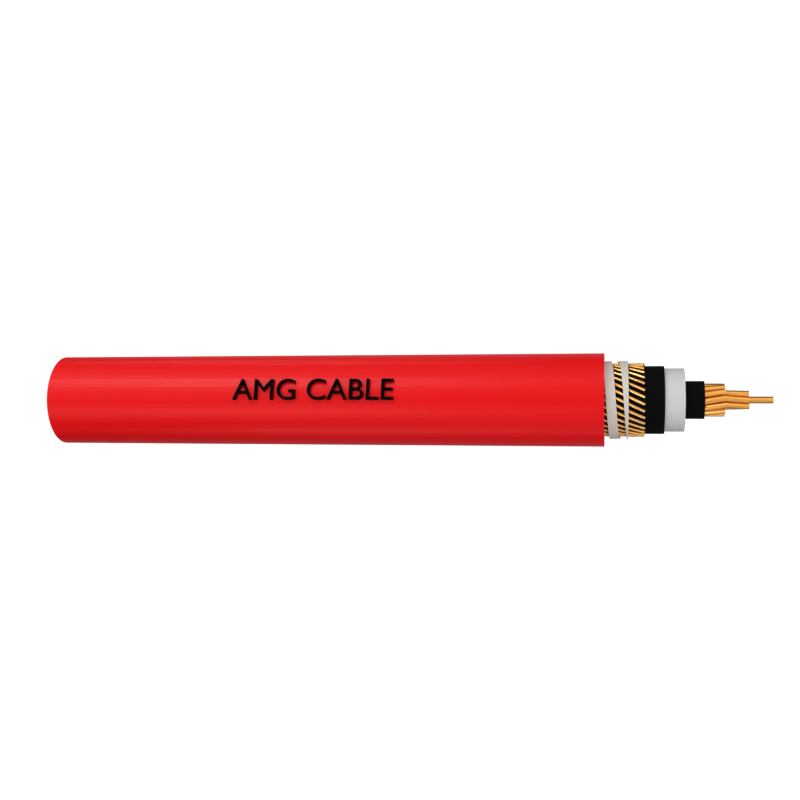

Product Description
N2XSY is a standardized, single-core medium-voltage power cable designed according to the VDE 0276-620 standard. It is a high-performance, unarmoured cable commonly used for stationary installations where mechanical stress is minimal but electrical reliability is paramount.
Application
N2XSY cable is specifically engineered for medium voltage power distribution and serves as a reliable solution for transformer feeders in substations. It is widely utilized across power plants, large-scale industrial and operational installations, as well as within residential infrastructure and mining facilities. The design is optimized for fixed installation in dry locations, ensuring stable electrical performance for diverse utility and infrastructure projects.
Applicable Standard
NTP-IEC 60228
NTP-IEC 60502-2
IEC 60228
IEC 60502-2
VDE 0276-620

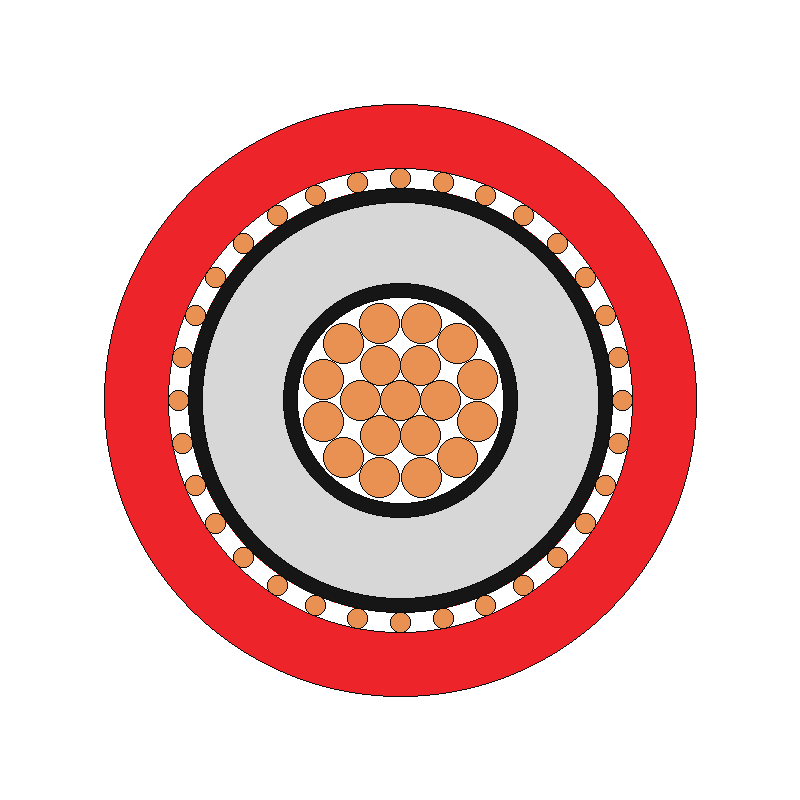

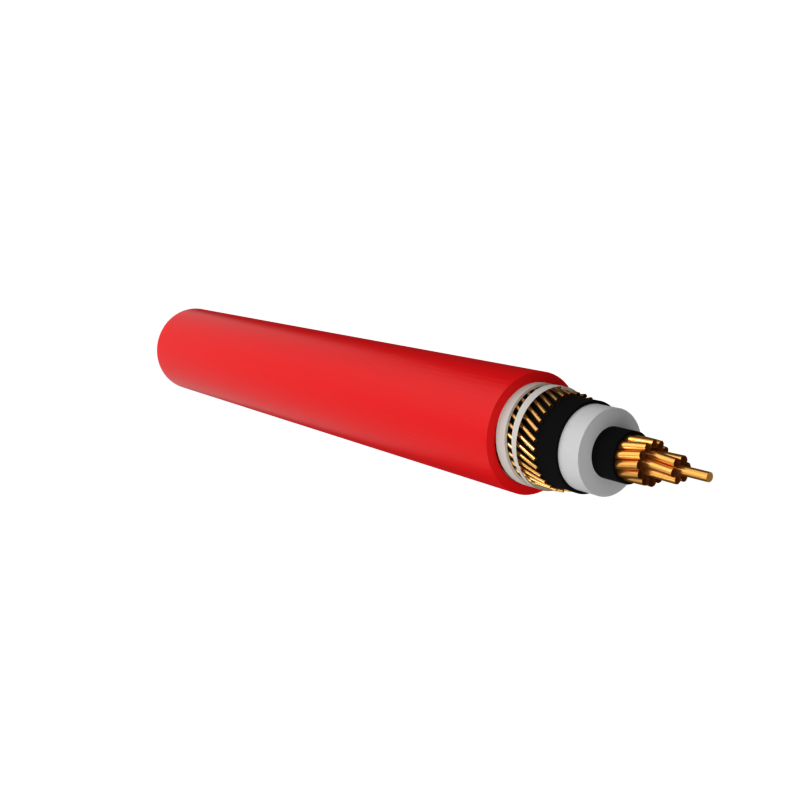

Construction
- 1. Conductor: Compact stranded soft copper, class 2.
- 2.Inner semi-conductor: Extruded.
- 3. Insulation: Cross linked polyethylene TR-XLPE(Tree retardant).
- 4.External semi-conductor: Extruded strippable.
- 5. Screen: Copper wires.
- 6. Tape: Polyester.
- 7. Outer sheath: Compound polyvinyl chloride PVC.
Electrical Parameters
- Temperature Range:During installation up to -5°C/+23°F
- Operating Temperature: Max. +90°C/+194°F
- Short Circuit Temperature:+250°C/+482°F (short circuit duration up to 5 sec.)
- Nominal Voltages:U0/U 6/10 kV, 12/20 kV, 18/30 kV
- Operating Voltages for :6/10 kV = max. 12 kV, 12/20 kV = max. 24 kV,18/30 kV = max. 36 kV
- Test Voltages for 6/10 kV = 15 kV,12/20 kV = 30 kV,18/30 kV = 45 kV
Technical Parameter
| No./Nom.
Cross Sectional Area |
Construction | Approx. Conductor diameter |
Nom. Insulation thickness |
Min. External diameter |
Max. External diameter |
Conductor resistance at 20℃ |
Cu Weight |
Approx.Weight |
| No.xmm² | mm | mm | mm | mm | Q/km | kg/km | kg/km | |
| 6/10 kV | ||||||||
| 1×35/16 | RM | 7.5 | 3.4 | 23 | 28 | 0.524 | 518 | 892 |
| 1×50/16 | RM | 8.6 | 3.4 | 24 | 29 | 0.387 | 662 | 1027 |
| 1×70/16 | RM | 10.2 | 3.4 | 26 | 31 | 0.268 | 854 | 1254 |
| 1×95/16 | RM | 12.0 | 3.4 | 27 | 32 | 0.193 | 1094 | 1525 |
| 1×120/16 | RM | 135 | 3.4 | 29 | 34 | 0.153 | 1334 | 1773 |
| 1×150/16 | RM | 15.0 | 3.4 | 30 | 35 | 0.124 | 1622 | 2050 |
| 1×150/25 | RM | 15.0 | 3.4 | 30 | 35 | 0.124 | 1723 | 2135 |
| 1×185/16 | RM | 16.8 | 3.4 | 32 | 37 | 0.0991 | 1958 | 2450 |
| 1×185/25 | RM | 16.8 | 3.4 | 32 | 37 | 0.0991 | 2059 | 2482 |
| 1×240/16 | RM | 19.2 | 3.4 | 34 | 39 | 0.0754 | 2486 | 3000 |
| 1×240/25 | RM | 19.2 | 3.4 | 34 | 39 | 0.0754 | 2587 | 3045 |
| 1×300/25 | RM | 21.6 | 3.4 | 36 | 41 | 0.0601 | 3163 | 3646 |
| 1×400/35 | RM | 24.6 | 3.4 | 40 | 45 | 0.0470 | 4234 | 4557 |
| 1×500/35 | RM | 27.6 | 3.4 | 43 | 48 | 0.0366 | 5194 | 5585 |
| 1×630/35 | RM | 31.5 | 3.4 | 48 | 52 | 0.0283 | 6395 | 7090 |
| No./Nom.
Cross Sectional Area |
Construction | Approx. Conductor diameter |
Nom. Insulation thickness |
Min. External diameter |
Max. External diameter |
Conductor resistance at 20℃ |
Cu Weight |
Approx.
Weight |
| No.xmm² | mm | mm | mm | mm | Q/km | kg/km | kg/km | |
| 12/20 kV | ||||||||
| 1×35/16 | RM | 7.5 | 5.5 | 27 | 32 | 0.524 | 518 | 1067 |
| 1×50/16 | RM | 8.6 | 5.5 | 28 | 33 | 0.387 | 662 | 1208 |
| 1×70/16 | RM | 10.2 | 5.5 | 30 | 35 | 0.268 | 854 | 1446 |
| 1×95/16 | RM | 12.0 | 5.5 | 31 | 36 | 0.193 | 1094 | 1726 |
| 1×120/16 | RM | 13.5 | 5.5 | 33 | 38 | 0.153 | 1334 | 1983 |
| 1×150/16 | RM | 15.0 | 5.5 | 34 | 39 | 0.124 | 1622 | 2300 |
| 1×150/25 | RM | 15.0 | 5.5 | 34 | 39 | 0.124 | 1723 | 2353 |
| 1×185/16 | RM | 16.8 | 5.5 | 36 | 41 | 0.0991 | 1958 | 2650 |
| 1×185/25 | RM | 16.8 | 5.5 | 36 | 41 | 0.0991 | 2059 | 2712 |
| 1×240/16 | RM | 19.2 | 5.5 | 39 | 44 | 0.0754 | 2486 | 3250 |
| 1×240/25 | RM | 19.2 | 5.5 | 39 | 44 | 0.0754 | 2587 | 3290 |
| 1×300/25 | RM | 21.6 | 5.5 | 41 | 46 | 0.0601 | 3163 | 3889 |
| 1×400/35 | RM | 24.6 | 5.5 | 44 | 49 | 0.0470 | 4234 | 4831 |
| 1×500/35 | RM | 27.6 | 5.5 | 47 | 52 | 0.0366 | 5194 | 6050 |
| 1×630/35 | RM | 31.5 | 5.5 | 51 | 55 | 0.0283 | 6395 | 7340 |
| No./Nom.Cross Sectional Area | Construction | Approx. Conductor diameter |
Nom. Insulation thickness |
Min. External diameter |
Max. External diameter |
Conductor resistance at 20℃ |
Cu Weight |
Approx.Weight |
| Nxmm² | mm | mm | mm | mm | Q/km | kg/km | kg/km | |
| 18/30 kV | ||||||||
| 1×50/16 | RM | 8.6 | 8.0 | 33 | 38 | 0.387 | 715 | 1455 |
| 1×70/16 | RM | 10.2 | 8.0 | 35 | 40 | 0.268 | 100 | 1706 |
| 1×95/16 | RM | 12.0 | 8.0 | 36 | 41 | 0.193 | 136 | 2001 |
| 1×120/16 | RM | 13.5 | 8.0 | 38 | 43 | 0.153 | 172 | 2270 |
| 1×150/25 | RM | 15.0 | 8.0 | 39 | 44 | 0.124 | 214 | 2650 |
| 1×185/25 | RM | 16.8 | 8.0 | 41 | 46 | 0.0991 | 265 | 3022 |
| 1×240/25 | RM | 19.2 | 8.0 | 43 | 48 | 0.0754 | 343 | 3618 |
| 1×300/25 | RM | 21.6 | 8.0 | 46 | 51 | 0.0601 | 429 | 4350 |
| 1×400/35 | RM | 24.6 | 8.0 | 49 | 54 | 0.0470 | 572 | 5350 |
| 1×500/35 | RM | 27.6 | 8.0 | 52 | 57 | 0.0366 | 715 | 6450 |
| 1×630/35 | RM | 31.5 | 8.0 | 57 | 62 | 0.0283 | 901 | 7800 |
