Product Description

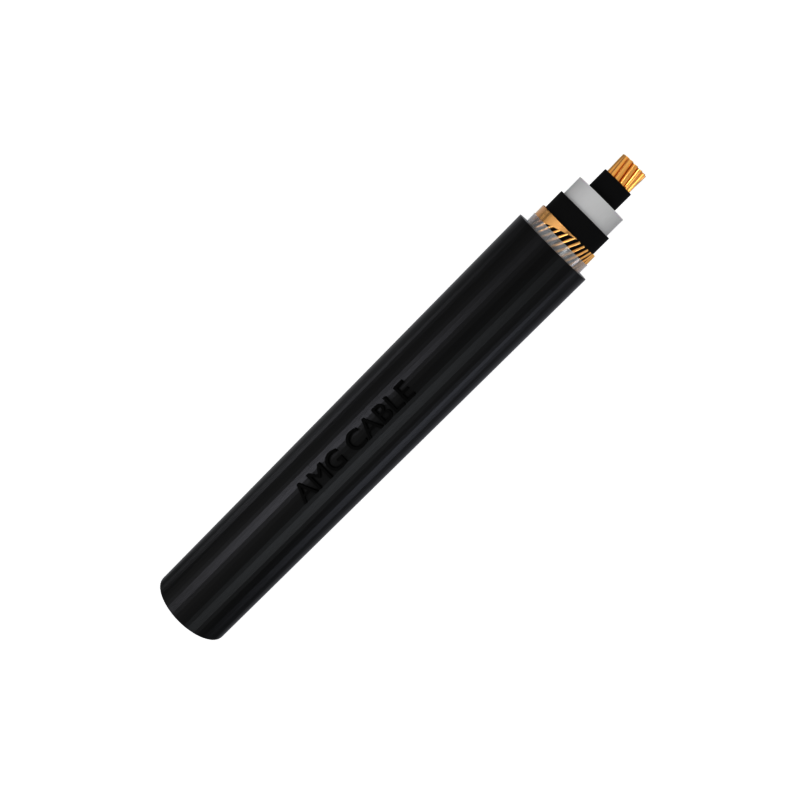

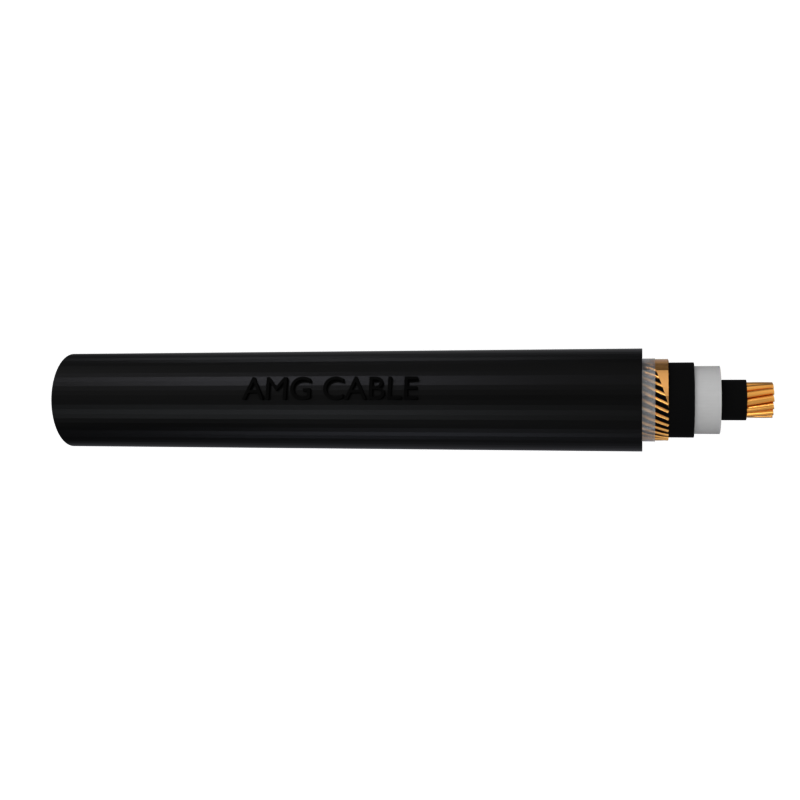

The N2XS2Y is a single-core medium voltage power cable featuring a copper conductor, XLPE insulation, and a copper wire screen, protected by a robust polyethylene (PE) outer sheath for superior mechanical durability and moisture resistance.
Application
N2XS2Y(CU/XLPE/CWS/PE) cable is suitable for indoor, outdoor, underground and underwater installations, as well as deployment on cable trays. It is ideally suited for industries, switchboards and power stations.The PE outer sheath delivers superior resistance to high mechanical stress, ensuring durability during installation and operation. Additionally, the inner semi-conductive layer between the conductor and XLPE insulation, together with the firmly bonded outer semi-conductive layer on the XLPE insulation, eliminates partial discharges and guarantees excellent operational reliability.
Applicable Standard
IEC 60502-2
IEC 60228
DIN VDE0276-620
HD620 S1:1996
GB/T 12706.2

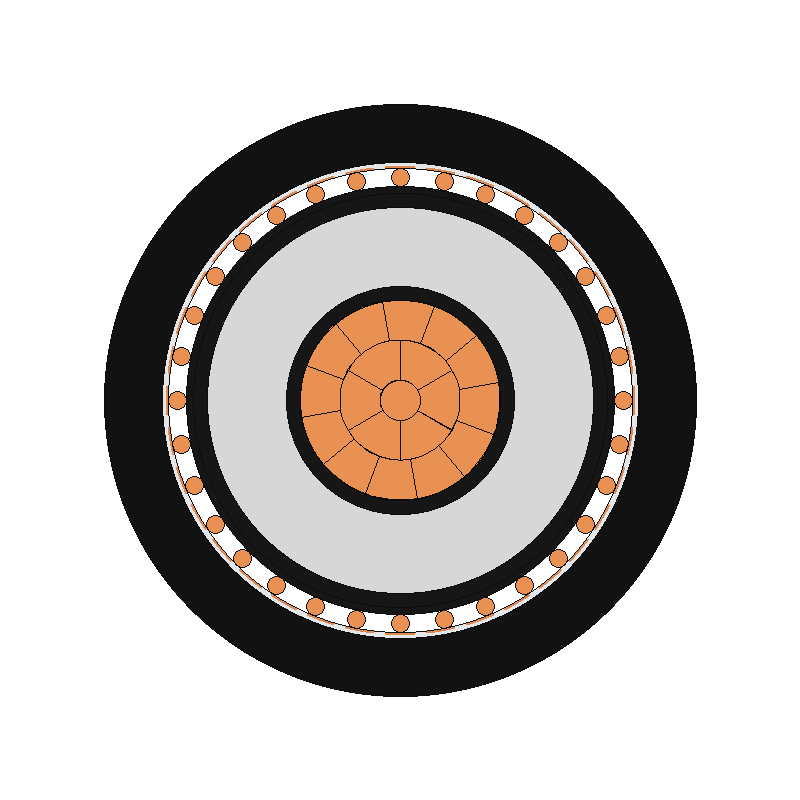

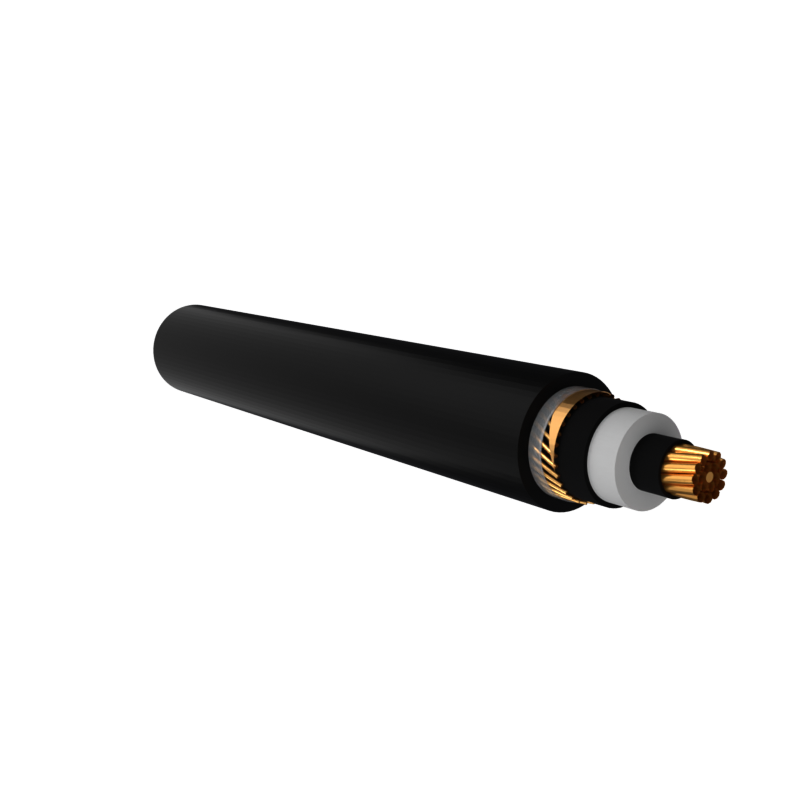

Construction
- Conductor: Class 2 stranded copper
- Conductor Screen: Bonded semi conductive XLPE
- Insulation: Cross Linked polyethylene (XLPE)
- Bedding: Semi Conductive Compound
- Metallic Screen: Copper Wires plus Copper tape
- Outer Sheath: Polyethylene (PE)(MDPE&HDPE is available on request)
- Sheath Colour: Red or Black
Technical Parameter
| No./Nom.
Sectional Area |
Construction | Approx. Conductor Diameter | Approx. Insulation Thickness |
Min. External diameter |
Max. External diameter |
Conductor resistance at 20℃ |
Cu Weight |
Approx. Cable Weight |
| Nx mm² | mm | mm | mm | mm | Q/km | KG/KM | KG/KM | |
| 1×35/16 | RM | 7.5 | 3.4 | 23 | 28 | 0.524 | 518 | 801 |
| 1×50/16 | RM | 8.6 | 3.4 | 24 | 29 | 0.387 | 662 | 932 |
| 1×70/16 | RM | 10.2 | 3.4 | 26 | 31 | 0.268 | 854 | 1151 |
| 1×95/16 | RM | 12.0 | 3.4 | 27 | 32 | 0.193 | 1094 | 1415 |
| 1×120/16 | RM | 13.5 | 3.4 | 29 | 34 | 0.153 | 1334 | 1656 |
| 1×150/16 | RM | 15.0 | 3.4 | 30 | 35 | 0.124 | 1622 | 1950 |
| 1×150/25 | RM | 15.0 | 3.4 | 30 | 35 | 0.124 | 1723 | 2012 |
| 1×185/16 | RM | 16.8 | 3.4 | 32 | 37 | 0.099 | 1958 | 2350 |
| 1×185/25 | RM | 16.8 | 3.4 | 32 | 37 | 0.099 | 2059 | 2353 |
| 1×240/16 | RM | 19.2 | 3.4 | 34 | 39 | 0.075 | 2486 | 2900 |
| 1×240/25 | RM | 19.2 | 3.4 | 34 | 39 | 0.075 | 2587 | 2906 |
| 1×300/25 | RM | 21.6 | 3.4 | 36 | 41 | 0.060 | 3163 | 3483 |
| 1×400/35 | RM | 24.6 | 3.4 | 40 | 45 | 0.047 | 4234 | 4500 |
| 1×500/35 | RM | 27.6 | 3.4 | 43 | 48 | 0.037 | 5194 | 5395 |
| 1×630/35 | RM | 31.5 | 3.4 | 48 | 52 | 0.028 | 7010 |
| No./Nom.
Sectional Area |
Construction | Approx. Conductor Diameter | Approx. Insulation Thickness |
Min. External diameter |
Max. External diameter |
Conductor resistance at 20℃ |
Cu Weight |
Approx. Cable Weight |
| Nx mm² | mm | mm | mm | mm | Q/km | KG/KM | KG/KM | |
| 1×35/16 | RM | 7.5 | 5.5 | 27 | 32 | 0.524 | 518 | 951 |
| 1×50/16 | RM | 8.6 | 5.5 | 28 | 33 | 0.387 | 662 | 1088 |
| 1×70/16 | RM | 10.2 | 5.5 | 30 | 35 | 0.268 | 854 | 1318 |
| 1×95/16 | RM | 12.0 | 5.5 | 31 | 36 | 0.193 | 1094 | 1592 |
| 1×120/16 | RM | 13.5 | 5.5 | 33 | 38 | 0.153 | 1334 | 1843 |
| 1×150/16 | RM | 15.0 | 5.5 | 34 | 39 | 0.124 | 1622 | 2150 |
| 1×150/25 | RM | 15.0 | 5.5 | 34 | 39 | 0.124 | 1723 | 2207 |
| 1×185/16 | RM | 16.8 | 5.5 | 36 | 41 | 0.0991 | 1958 | 2550 |
| 1×185/25 | RM | 16.8 | 5.5 | 36 | 41 | 0.0991 | 2059 | 2559 |
| 1×240/16 | RM | 19.2 | 5.5 | 39 | 44 | 0.0754 | 2486 | 3100 |
| 1×240/25 | RM | 19.2 | 5.5 | 39 | 44 | 0.0754 | 2587 | 3127 |
| 1×300/25 | RM | 21.6 | 5.5 | 41 | 46 | 0.0601 | 3163 | 3717 |
| 1×400/35 | RM | 24.6 | 5.5 | 44 | 49 | 0.0470 | 4234 | 4634 |
| 1×500/35 | RM | 27.6 | 5.5 | 47 | 52 | 0.0366 | 5194 | 5665 |
| 1×630/35 | RM | 31.5 | 5.5 | 51 | 55 | 0.0283 | 7340 |
| No./Nom.
Sectional Area |
Construction | Approx. Conductor Diameter | Approx. Insulation Thickness |
Min. External diameter |
Max. External diameter |
Conductor resistance at 20℃ |
Cu Weight |
Approx. Cable Weight |
| Nx mm² | mm | mm | mm | mm | Q/km | KG/KM | KG/KM | |
| 1×50/16 | RM | 8.6 | 8.0 | 33 | 38 | 0.387 | 662 | 1307 |
| 1×70/16 | RM | 10.2 | 8.0 | 35 | 40 | 0.268 | 854 | 1550 |
| 1×95/16 | RM | 12.0 | 8.0 | 36 | 41 | 0.193 | 1094 | 1837 |
| 1×120/16 | RM | 13.5 | 8.0 | 38 | 43 | 0.153 | 1334 | 2099 |
| 1×150/25 | RM | 15.0 | 8.0 | 39 | 44 | 0.124 | 1723 | 2473 |
| 1×185/25 | RM | 16.8 | 8.0 | 41 | 46 | 0.0991 | 2059 | 2838 |
| 1×240/25 | RM | 19.2 | 8.0 | 43 | 48 | 0.0754 | 2587 | 3423 |
| 1×300/25 | RM | 21.6 | 8.0 | 46 | 51 | 0.0601 | 3163 | 4028 |
| 1×400/35 | RM | 24.6 | 8.0 | 49 | 54 | 0.0470 | 4234 | 4150 |
| 1×500/35 | RM | 27.6 | 8.0 | 52 | 57 | 0.0366 | 5194 | 5100 |
| 1×630/35 | RM | 31.5 | 8.0 | 57 | 62 | 0.0283 | 6200 |
